Eaton 10250TC4N Plastic Lens Indicator Accessory

Product Description

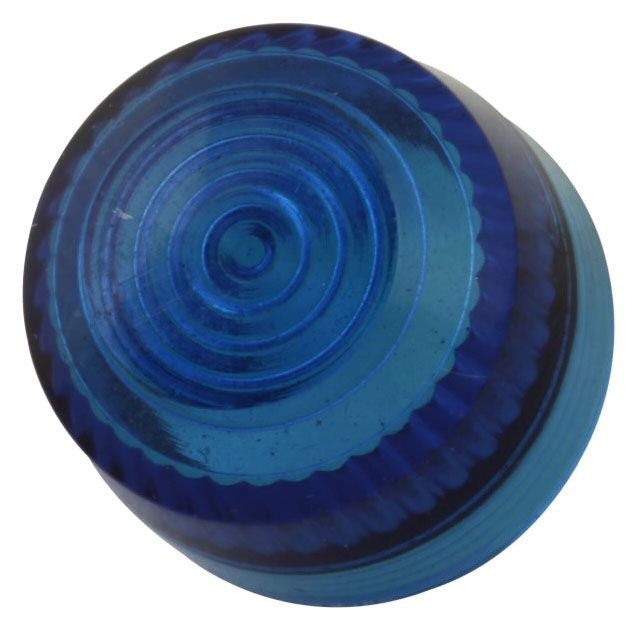

The EATON 10250TC4N is a plastic replacement lens designed for use with 10250T series pilot light and push button operator assemblies. This lens component mounts to the front of a pilot light or illuminated push button unit and provides a clear or colored light transmission surface for operator indication. Electricians and control panel technicians install this part when replacing a cracked, discolored, or missing lens on an existing 10250T series device. The lens measures 1.2 inches by 1.2 inches by 0.8 inches and weighs approximately 0.01 pounds, making it a compact, lightweight accessory for industrial control applications.

This lens is suited for use in industrial control panels, machine tool operator stations, and process control enclosures where 10250T series push button and pilot light devices are already installed. It is a direct accessory replacement for field servicing of existing assemblies rather than a complete device. The part is appropriate for both light industrial and heavy-duty operator station applications where the 10250T series hardware is in service.

Key Features

• Plastic construction provides lightweight, cost-effective lens replacement
• Designed for 10250T series pilot light and push button operator assemblies
• Compact form factor: 1.2 inches x 1.2 inches x 0.8 inches
• Allows field replacement without removing the entire operator assembly
• Minimal weight at 0.01 pounds simplifies handling during panel service

Compatibility

Designed as a lens accessory for EATON 10250T series pilot light and illuminated push button operator assemblies. Verify series and color requirements against the existing installed device before ordering.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize the control panel and follow applicable NFPA 70E lockout/tagout procedures before servicing any operator station component. The lens snaps or threads onto the existing 10250T series operator body; do not force the lens if alignment is not correct, as plastic components can crack under improper installation pressure. Confirm the replacement lens color and style match the original device specification before reinstalling the panel cover.

Technical Specifications

• Material: Plastic
• Length: 1.2 inches
• Width: 1.2 inches
• Height: 0.8 inches
• Weight: 0.01 pounds
• UPC: 78211314807

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC4N
