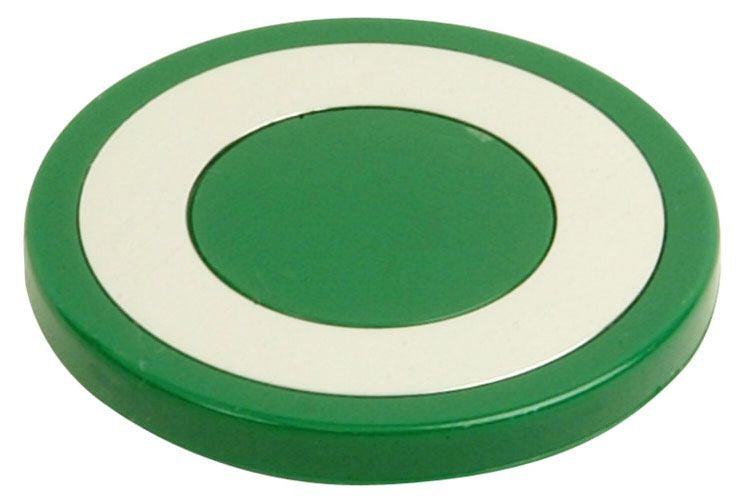

Eaton 10250TB61 Button Type Pushbutton Operator 30.5mm

Product Description

The EATON 10250TB61 is a button-type pushbutton operator designed for use in industrial control panels and operator interface stations. This 30.5mm operator mounts into standard 30.5mm cutout enclosures and provides a direct, tactile momentary or maintained contact input for control circuit applications. At 0.02 pounds and compact dimensions of 1.6 inches by 1.6 inches by 0.5 inches, it installs quickly in confined panel spaces. Licensed electricians and industrial control technicians are the primary installers for this type of device.

The EATON 10250TB61 is suited for industrial and commercial control panel applications where a 30.5mm pushbutton operator is required. Typical installations include machine control stations, motor control centers, and operator interface panels in manufacturing, processing, and utility environments. This operator is part of the EATON 10250T series, a widely used platform in industrial control wiring.

Key Features

• 30.5mm mounting diameter fits standard industrial control panel cutouts
• Button-type operator provides clear tactile actuation
• Compact footprint at 1.6 inches by 1.6 inches by 0.5 inches
• Lightweight construction at 0.02 pounds for easy panel integration
• Designed for use in industrial operator interface and control station assemblies

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30.5mm industrial pushbutton control stations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing this operator. Ensure the panel cutout matches the 30.5mm mounting diameter before securing the operator. Do not overtighten the mounting hardware, as this can crack the operator body or distort the panel surface.

Technical Specifications

• Mounting Diameter: 30.5mm
• Operator Type: Button Type
• Dimensions (L x W x H): 1.6 inches x 1.6 inches x 0.5 inches
• Weight: 0.02 pounds
• UPC: 78211330900

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TB61
