Eaton 10250TA68 Pushbutton Operator

Product Description

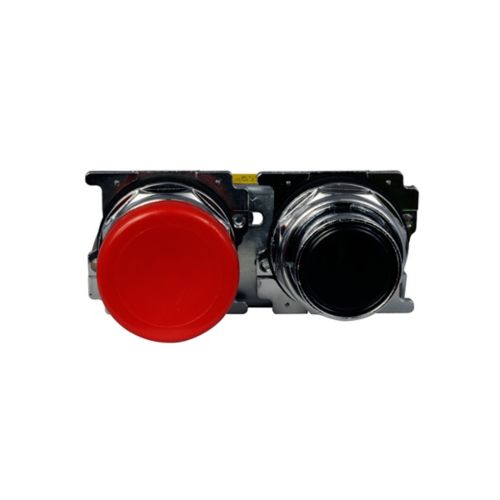

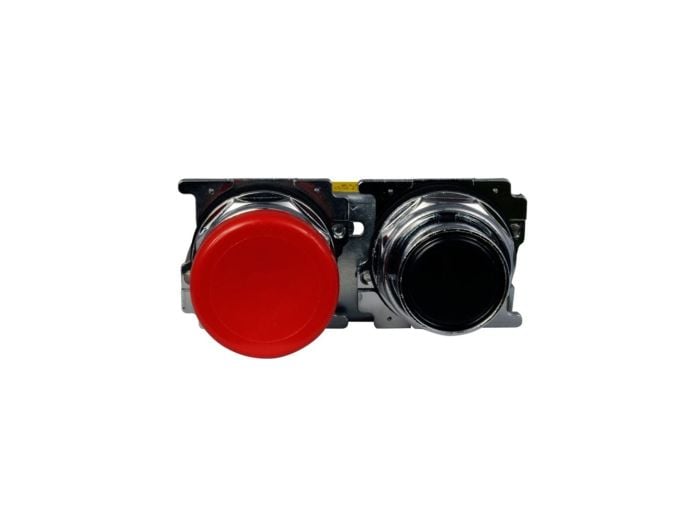

The Eaton 10250TA68 pushbutton operator is a heavy-duty pushbutton from the 10250T series. This operator features a mechanically interlocked, mushroom head actuator and is suitable for flush mounting. It is constructed from plastic with a chrome bezel and is non-illuminated. It is designed to meet NEMA 3, 3R, 4, 4X, 12, and 13 standards.

• Mechanically interlocked mushroom head actuator
• Flush mount design
• Heavy-duty zinc die cast construction with chrome plated housing

Product Highlights

The Eaton 10250TA68 is a robust and reliable pushbutton operator designed for demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA68
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton operator
• Catalog Number: 10250TA68
• UPC: 782113312712
• Product Length/Depth: 4.4 in
• Product Height: 3.2 in
• Product Width: 3.3 in
• Product Weight: 0.7 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Type: Mechanically Interlocked Operators
• Actuator color: Black, red
• Bezel: Chrome
• Actuator material: Plastic
• Actuator: Mechanically interlocked, mushroom head
• Operating mode: Maintained
• Illumination: Non-illuminated
• Series: 10250T
• Mounting method: Flush
• Rating: NEMA 12 NEMA 3 NEMA 4 NEMA 3R NEMA 4X NEMA 13
• Size: 30.5mm
• NEMA: 4,4X,13
• Button 1 Style: Flush
• Button 1 Color: Black
• Button 2 Style: Mushroom
• Button 2 Color: Red
• Contact Mode: Maintained/Maintained
• Manufacturer Part Number: 10250TA68
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T pushbutton operator, 10250T series, Heavy-Duty Pushbutton Operator, Mechanically interlocked, mushroom head, Black, red, Plastic, Chrome, Non-illuminated, Flush mount, Maintained, NEMA 3, 3R, 4, 4X, 12, 13
• Illuminated: No
• Operation: Maintained
• Mounting: 30 mm
• Operator Color: Red, Black
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE, CSA, UL
• Comments: Black Button, Mechanically interlocked Red Mushroom, Flush Mount
• Net Weight: 0.7 lbs
• Gross Weight: 0.7 lbs
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
• Item: PENDANT PUSHBUTTON 30MM FLUSH/MUSHROOM
• OEM: Eaton
• OEM #: 10250TA68
• Condition: New OEM Original
• Action: Maintained
• Color: Black/Red
• Contact Rating: 10A @ 600V AC/DC
• Country of Origin: Dominican Republic
• For Use With: 30.5 mm Heavy-Duty Watertight/Oiltight-10250T
• Head Material: Plastic
• IP Rating: 65
• Mechanical Interlock: Yes
• Number of Operators: 2
• Standards: CE, CSA, UL
• Type of Operator: Flush Button/Mushroom
