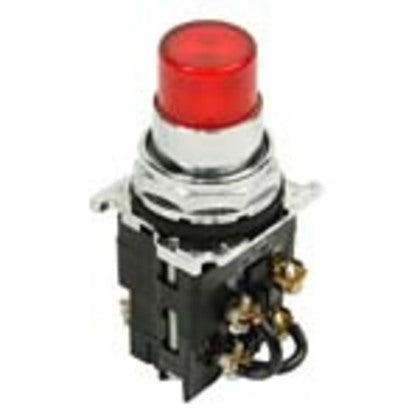

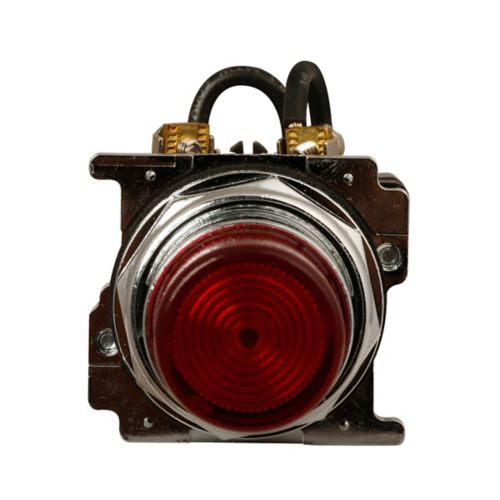

Eaton 10250T74NR Pushbutton 120 Vac 30.5 mm

Product Description

The EATON 10250T74NR is a heavy-duty watertight and oiltight pushbutton with an indicating light. It features a PresTest actuator, an incandescent transformer light unit, and a red plastic lens. This 30.5 mm pushbutton is rated NEMA 3, 3R, 4, 4X, 12, and 13 and operates at 120 Vac.

• Heavy-duty watertight and oiltight construction
• Features enclosed silver contacts with reliability nibs
• Equipped with diaphragm seals and drainage holes

Product Highlights

Eaton's 10250T74NR pushbutton is ideal for applications requiring reliability and durability. Its design ensures consistent performance in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T74NR
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T74NR
• UPC: 782113774534
• Product Length/Depth: 2.5 in
• Product Height: 4.6 in
• Product Width: 2.2 in
• Product Type: Pushbutton
• Type: Heavy-Duty Watertight/Oiltight
• Light unit type: Incandescent, transformer
• Lens material: Plastic
• Light unit voltage: 120 Vac
• Series: 10250T
• Actuator: PresTest
• Style: 30.5 mm
• Lens color: Red
• Rating: NEMA 12 NEMA 13 NEMA 3 NEMA 4 NEMA 3R NEMA 4X
• UNSPSC: 39121534
• Lamp Type: Incandescent
• Application: Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Voltage Rating: 120
• Size: 30.5
• Volts AC: 120
• Material: Plastic
• Country of Origin: United States
