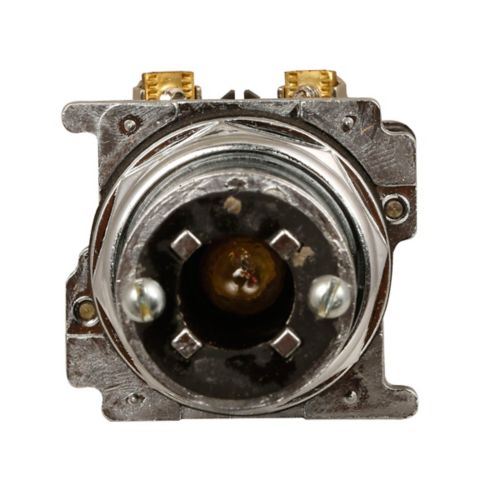

Eaton 10250T6153 Pushbutton 120V 60°

Product Description

The Eaton 10250T6153 is a 30.5 mm heavy-duty pushbutton with a 120V rating and a 60° throw. It features an incandescent, transformer light unit and a three-position selector switch. Constructed with a zinc die-cast body and polished chrome housing, it is suitable for use in various industrial applications.

• Heavy-duty zinc die-cast construction with polished chrome housing
• Illuminated with an incandescent, transformer light unit
• NEMA 3, 3R, 4, 4X, 12, and 13 enclosure ratings

Product Highlights

This heavy-duty oiltight/watertight pushbutton is ideal for industrial applications requiring a robust and reliable illuminated selector switch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T6153
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T6153
• UPC: 782113266121
• Product Length/Depth: 3.4 in
• Product Height: 2.1 in
• Product Width: 2.4 in
• Product Weight: 0.4 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: Heavy Duty Oiltight/Watertight Pushbutton Illuminated
• Cam code: Cam 3
• Voltage rating: 120 V
• Illumination: Illuminated
• Light unit type: Incandescent, transformer
• Number of positions: 3
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Throw type: 60 °
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: 10250 series
• Functions: Illuminated 30mm head/operator transformer
• Supply voltage (AC): 120Vac
• Supply voltage (DC): 120Vdc
• Shape: Round
• Diameter: 30.5mm (door punch)
• Operating mode: 3-positions All positions Spring-return to center
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Material: Die-cast Zinc (body) Chrome-plated (housing)
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Angular positions: -60 0 +60
• UNSPSC Code: 39120000
• Actuator Type: Lever
• Brand: Eaton - Cutler Hammer
• Dimensions: 2.10 in H X 0.40 in W X 3.40 in L
• Unit of Measure: EA
• UPC Code: 782113266121
• Finish: Polished Chrome
• UNSPSC: 39122217
• Lamp Type: Incandescent
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Voltage Rating: 120
• Size: 30.5
• Throw: 60
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
