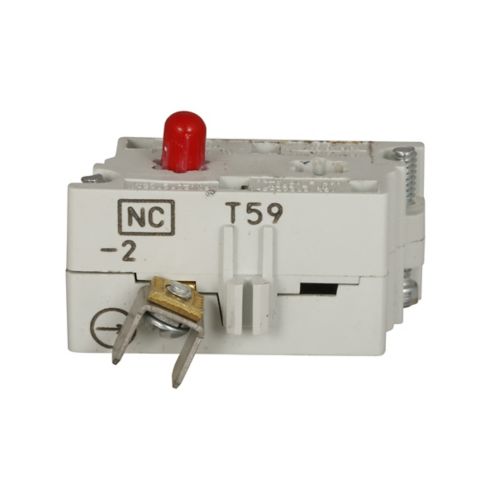

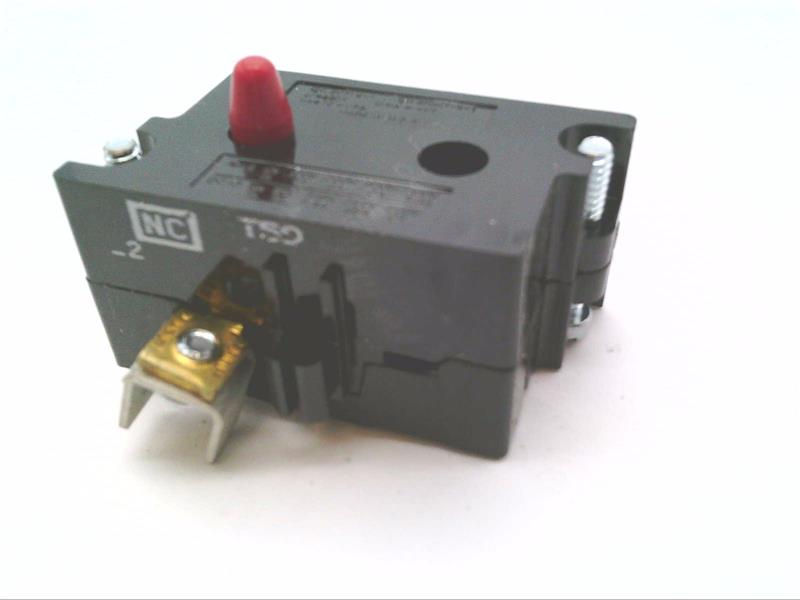

Eaton 10250T59 Pushbutton Contact Block 1NC

Product Description

The Eaton 10250T59 is a pushbutton contact block from the 10250T series, designed for reliable switching operations. It features a 1NC contact configuration and spade terminal connection for secure wiring. This contact block is suitable for control panels and industrial pushbutton assemblies.

• Standard contact block with 1NC configuration
• Spade terminal connection for easy wiring
• Complies with CE Mark and certified with UL Listed and CSA Certified

Product Highlights

The Eaton 10250T59 contact block is ideal for industrial machinery, equipment outside factories, and other applications requiring reliable switching.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T59

Technical Specifications

• Product Name: Eaton 10250T pushbutton contact block
• Catalog Number: 10250T59
• UPC: 782113347516
• Product Length/Depth: 1.9 in
• Product Height: 2.1 in
• Product Width: 1.2 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Type: Heavy Duty Standard
• Contact configuration: 1 NC (standard)
• Series: 10250T
• Terminals: Spade
• Brand: Eaton
• MPN: 10250T59
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 10250T59
• Dimensions: 1.9 in L x 1.2 in W x 2.1 in H
• Amperage: 10
• Voltage: 600VAC
• Poles: 1
• Mounting Type: Base
• Approval: UL, CSA, CE
• Terminal Connection: Spade
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Duty Rating: Heavy Duty
• Contact Configuration: 1NC
• Mpn: 10250T59
• Upc: 782113347516
• Gtin: 782113347516
• UNSPSC: 39121522
• Material: Die-Cast Zinc
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Operator Type: Pushbutton
• Terminal Type: Spade
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Enclosure Type: IP65
• Size: 30.5 mm
• Contact Material: Silver
• Part #: 10250T59
• Category: Accessory/Bulb/Cap/Contact/Transf
• Volts AC: 600
