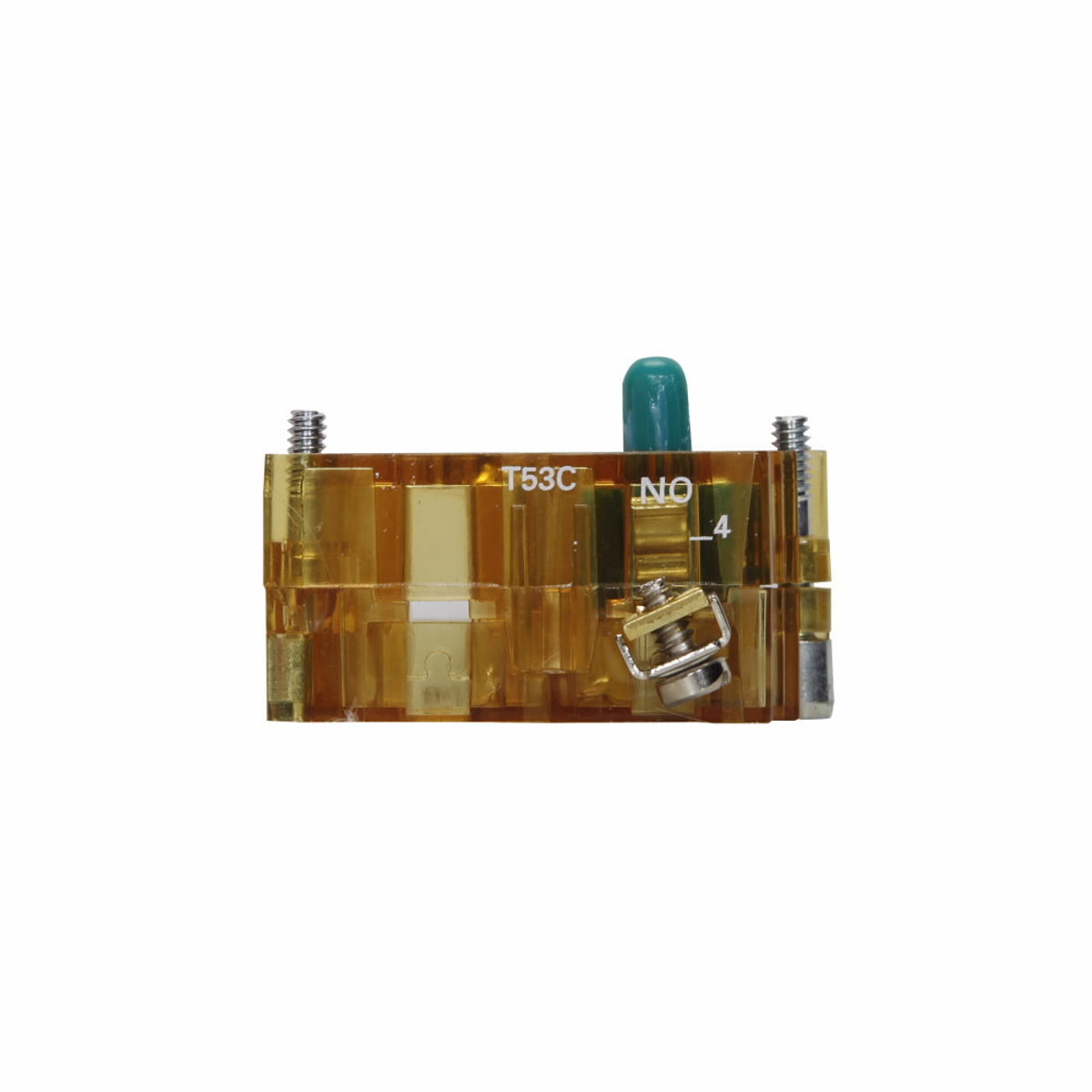

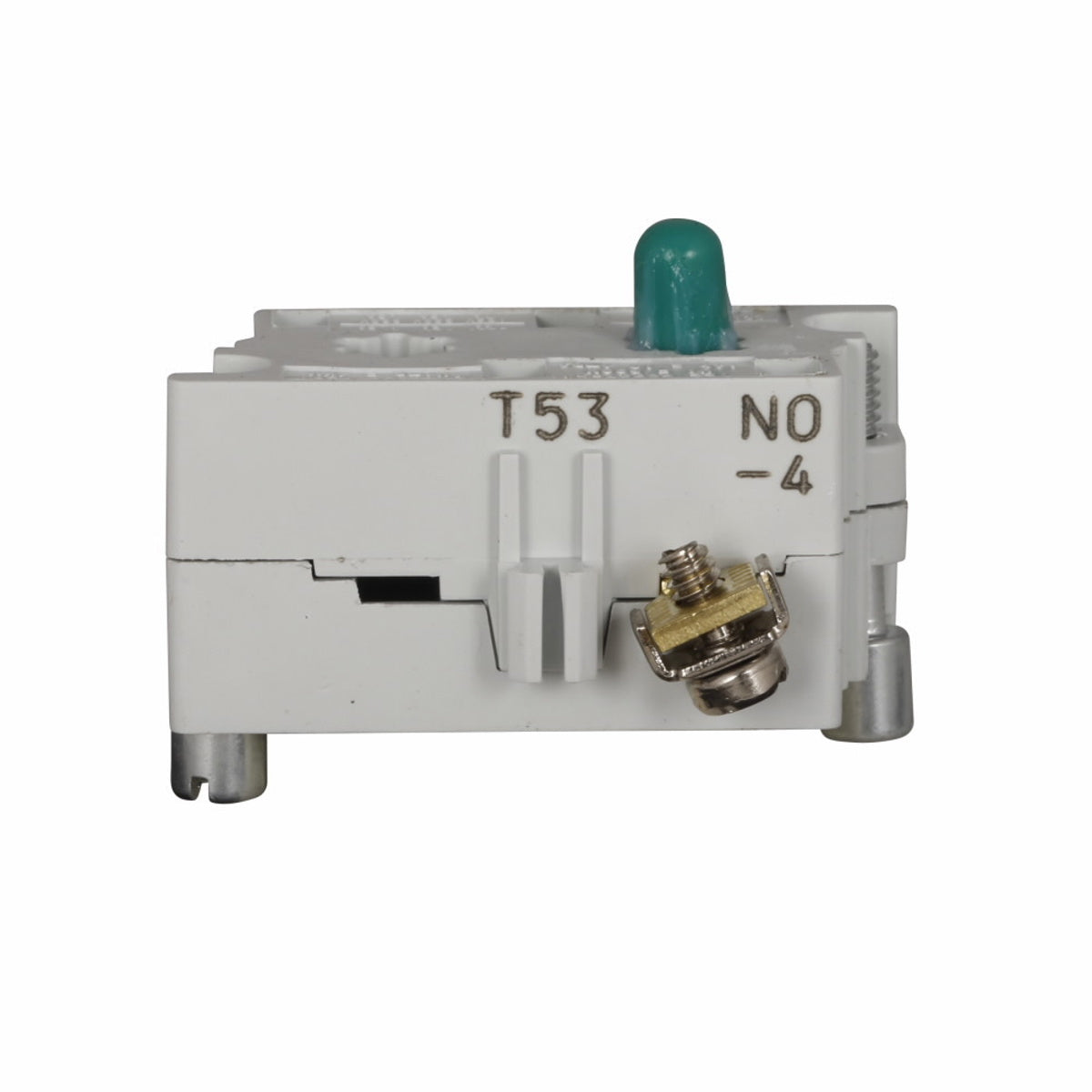

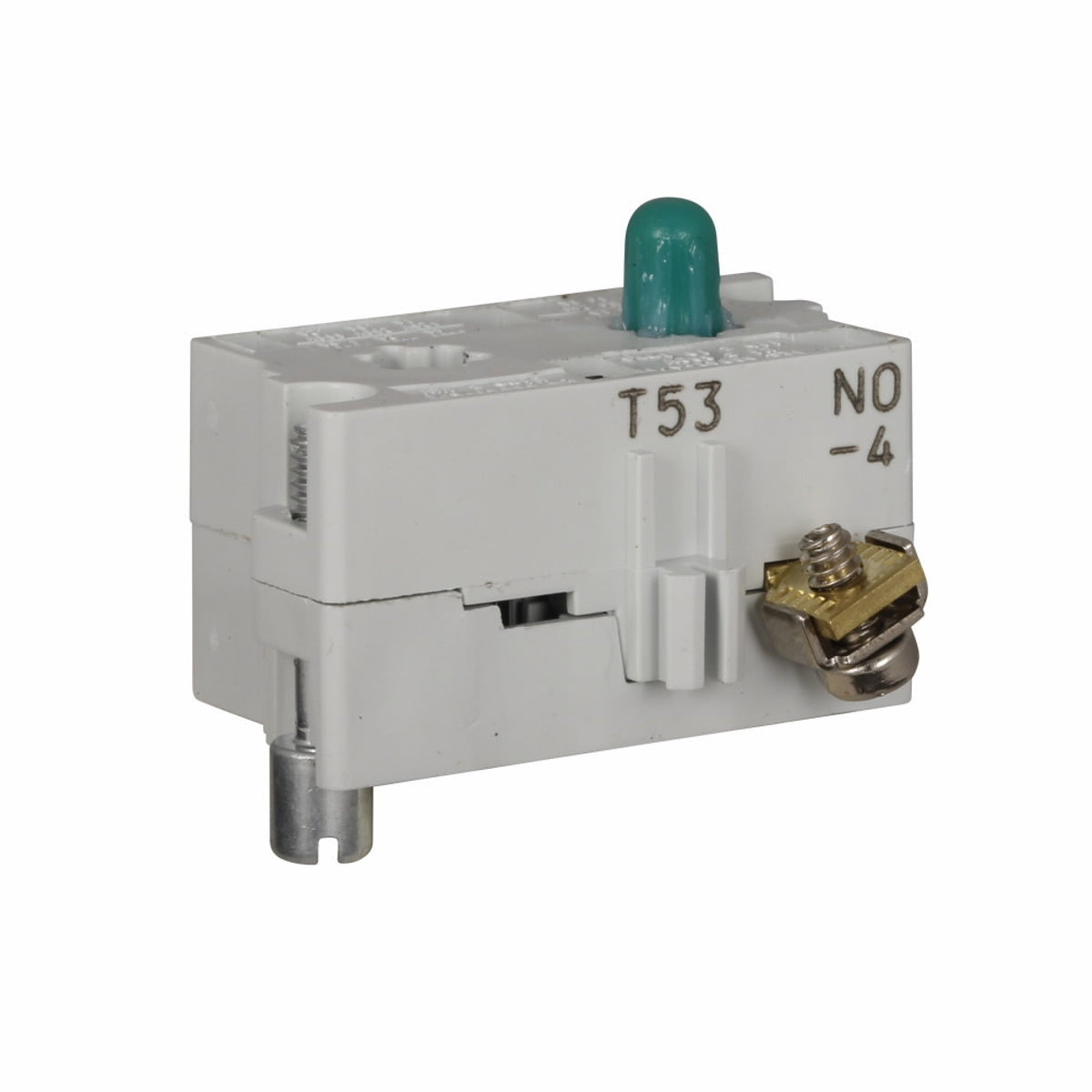

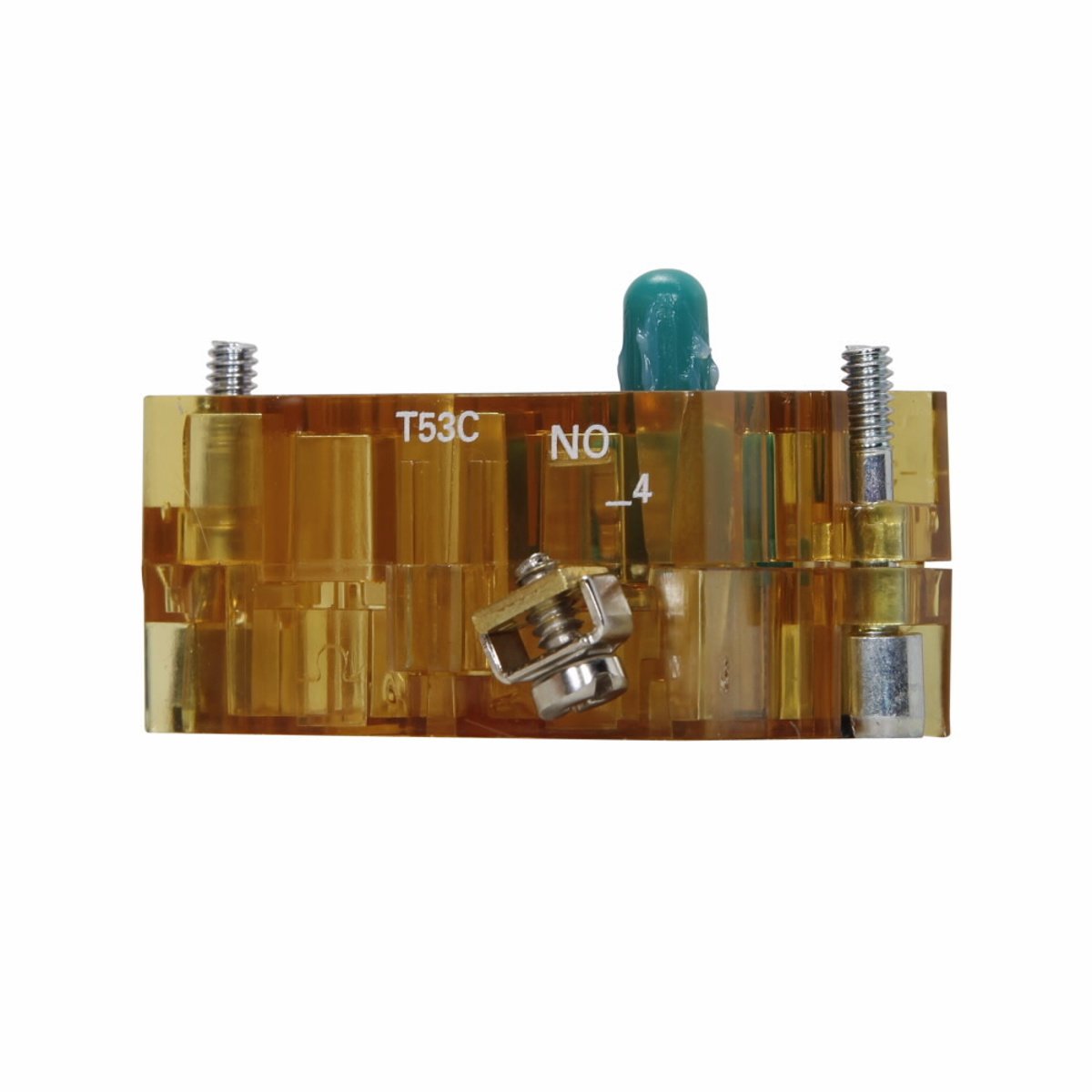

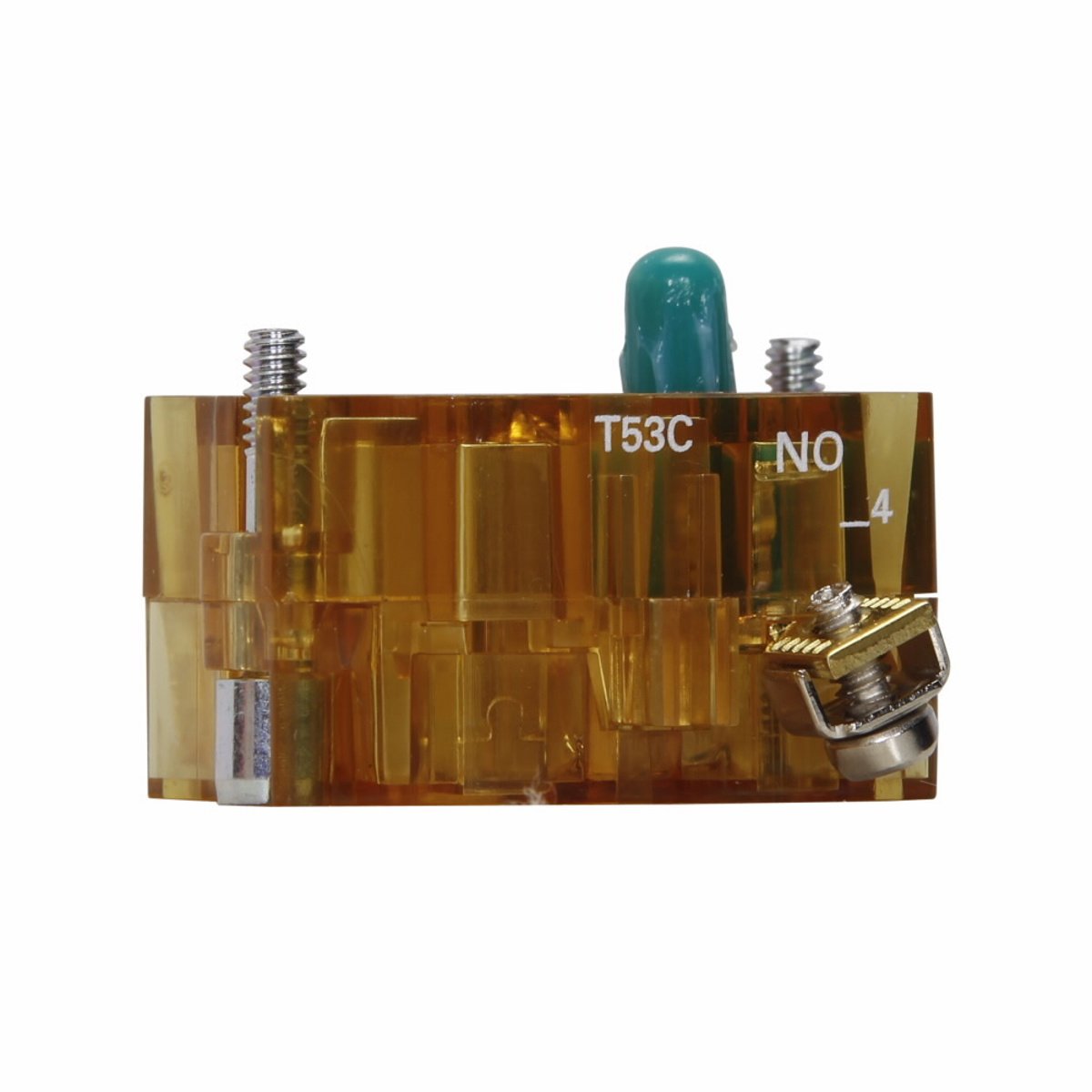

Eaton 10250T53C Pushbutton Contact Block 1NO

Product Description

The Eaton 10250T53C is a 30.5 mm pushbutton contact block from the 10250T series, featuring a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid, which can prevent operation in freezing environments. It has a 1NO contact configuration and pressure terminals.

• Heavy-duty zinc die cast construction
• Reliability nibs improve contact reliability
• Drainage holes prevent buildup of liquid

Product Highlights

This Eaton 10250T series contact block is UL Listed, CSA Certified, and CE Marked. It is suitable for electrical assemblies, panels, and stationary machinery.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T53C
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: 10250T53C
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs|Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Contact Configuration: 1 NO
• Special Features: Amber block
• Standard: UL Listed,CSA Certified,CE Marked
• Item Type: Pushbutton accessory
• Block Material: Thermoplastic
• Enclosure Type: IP65
• Material: Die-Cast Zinc
• NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13
• Operator Type: Pushbutton
• Series: 10250T
• Terminal Type: Pressure
• Type: Heavy Duty Standard
• Size: 30.5 mm
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Contact Material: Silver
• Product Length/Depth: 1.3 in
• Product Height: 2.1 in
• Product Width: 1.3 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Stack up to 6 blocks (6 circuits) unless otherwise noted
• Terminals: Pressure
• Mounting: Base
• Volts DC: 600
• Volts AC: 600
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
