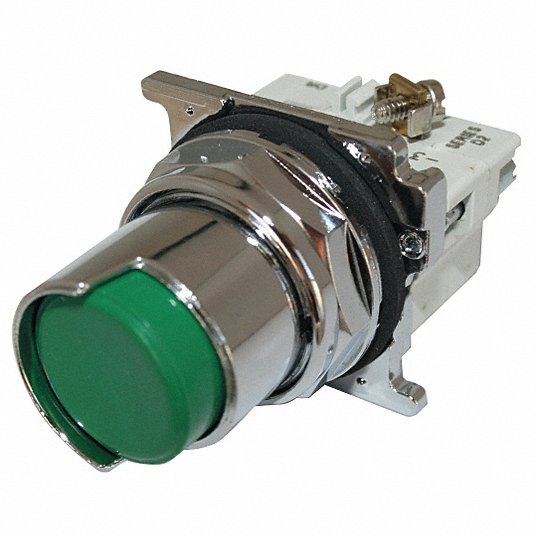

Eaton 10250T513 Pushbutton Operator 30.5 mm

Product Description

The EATON 10250T513 is a 30.5 mm pushbutton with a zinc die cast construction and chrome plated housing and mounting nut. It features enclosed silver contacts with reliability nibs and diaphragm seals with drainage holes. Grounding nibs on the operator casing provide a secure ground.

• Heavy duty zinc die cast construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This heavy-duty oiltight/watertight pushbutton is designed for momentary contact and surface mounting. Suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T513
• Country of Origin: Dominican Republic

Technical Specifications

• Bezel/Housing: Chrome
• Contact Mode: Momentary
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Mounting Type: Surface
• Operator Type: Half Shrouded Button
• Series: 10250T
• Type: Heavy Duty Oiltight/Watertight
• Size: 30.5 mm
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T513
• UPC: 782113226262
• Product Length/Depth: 2.5 in
• Product Height: 2 in
• Product Width: 2 in
• Product Weight: 0.024 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Actuator color: Green
• Operating mode: Momentary
• Illumination: Non-illuminated
• Mounting method: Horizontal
• Rating: NEMA 12 NEMA 4X NEMA 3 NEMA 13 NEMA 4 NEMA 3R
• Manufacturer Part Number: 10250T513
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Pushbutton, Class I Division 2, Half shrouded, Green, Plastic Actuator, Chrome bezel, Zinc Die Cast bus, Non-Illuminated, Horizontal Mounting, Momentary, Guarded, 10250T Series
• Illuminated: No
• Operation: Momentary
• Mounting: 30 mm
• Bezel: Metal Round
• Lens/Button Shape: Round Extended
• Operator Color: Green
• Net Weight: 0.3 lbs
• Gross Weight: 0.3 lbs
• Action: Momentary
• Bezel Material: Zinc Die Cast
• Features: Drainage Holes; Grounding Nibs; One Piece Body
• Hazardous Location Specification: Class I, Div 2, Group B, C, D
• Head Material: Plastic
• Head/Lens Color: Green
• IP Rating: IP65
• Manufacturer Warranty Length: 1 yr
• NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
• Number of Indicator Lights: 0
• Number of Push Buttons: 1
• Operating Temperature - Maximum: 150 °F
• Operating Temperature - Minimum: 1 °F
• Operator Illumination: Non-Illuminated
• Operator Material: Polymer
• Overall Depth: 2.5 in
• Overall Height: 2 in
• Overall Width: 2 in
• Panel Mounting Hole Diameter: 30 mm
• Operators: Push Button Style
• Extended: Standards
• CE: CSA
• FDA 3-A: UL Listed
• Terminal Connection: Screw Clamp
• UNSPSC: 39121512
• Category: Switches
• Configurable Switch Components: Configurable Switch Bodies
• Actuator Type: Pushbutton, Round
• Packaging: Box
• Compatible Series: Eaton, 10250T
• Part Status: Active
• Panel Cutout Dimensions: 30.5mm (Round)
• Requires: Contact Block(s)
• NEMA: 4, 4X, 13
• Operating Cap: Half-Shroud
