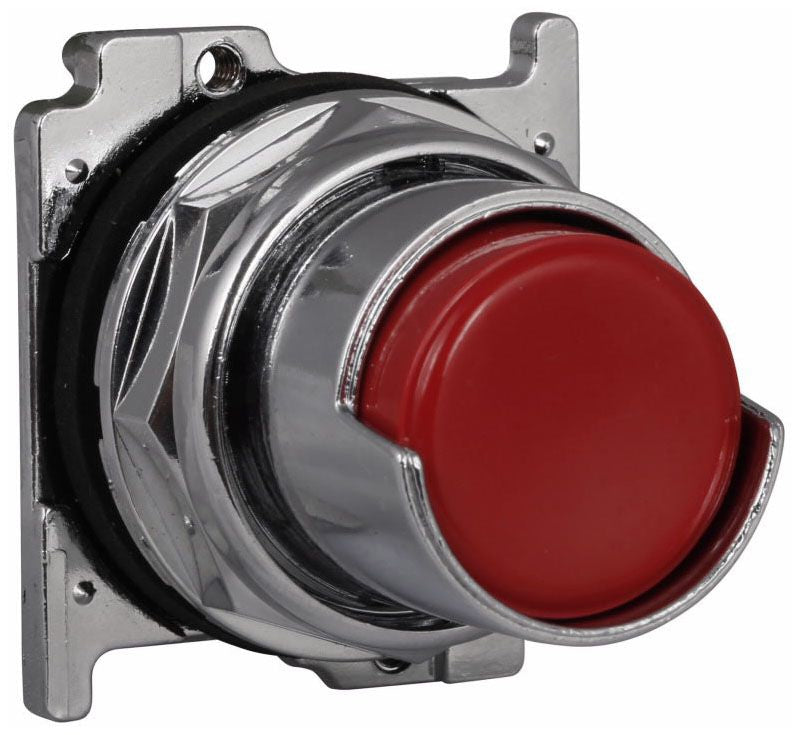

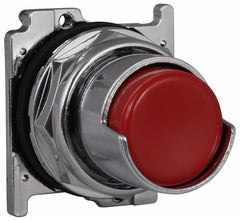

Eaton 10250T502 Half Shrouded Pushbutton Operator

Product Description

The EATON 10250T502 is a half shrouded pushbutton operator designed for use in industrial control stations and enclosures. The shrouded design provides a physical guard around the actuator button, reducing the risk of accidental activation in demanding industrial environments. This type of operator mounts into a standard 30 mm cutout and is typically installed by licensed electricians or qualified industrial maintenance technicians on motor control, machine tool, and process control panels.

The 10250T502 is suited for industrial applications where inadvertent pushbutton actuation is a concern. It fits into the Eaton 10250T series of heavy-duty industrial control devices, making it a practical replacement or addition to existing control station assemblies. Typical installations include factory automation panels, pump control stations, conveyor control enclosures, and similar equipment requiring robust operator interface hardware.

Key Features

• Half shrouded actuator design reduces risk of accidental button activation
• Designed for standard 30 mm industrial control station cutouts
• Part of the Eaton 10250T heavy-duty operator series
• Suitable for harsh industrial environments requiring durable operator hardware

Compatibility

Designed as an OEM-style operator for use with 30 mm industrial control station enclosures and contact blocks of the Eaton 10250T series.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any operator or contact block. Ensure the mounting cutout dimensions are correct before securing the operator to avoid damage to the enclosure or hardware.

Technical Specifications

• Weight: 0.25 pounds
• UPC: 78211322616

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T502
