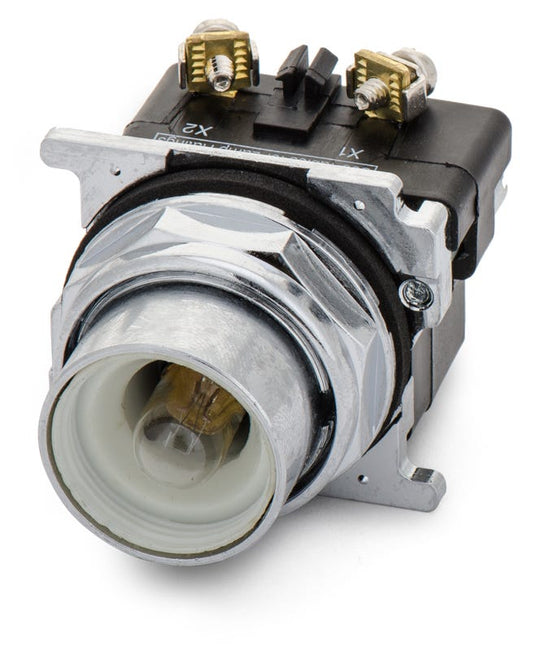

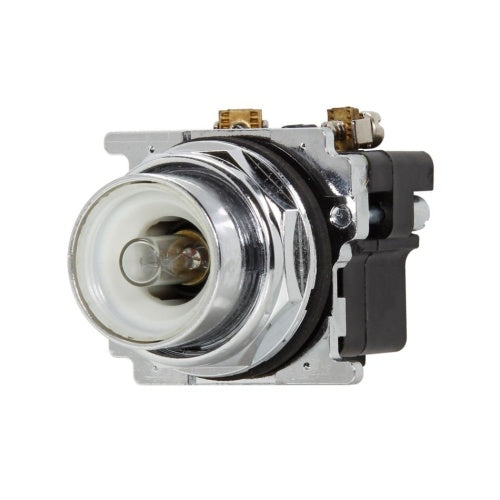

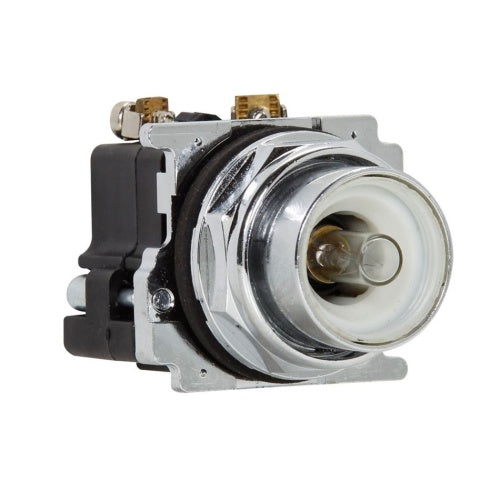

Eaton 10250T472 push button operator 240VAC

Product Description

The Eaton 10250T472 is a push button operator with a voltage rating of 240VAC. It features a momentary push and pull, maintained intermediate action. Constructed with robust zinc die-casting, these 30.5 mm pushbuttons ensure durability and longevity. Engineered to be water- and oil-tight, Eaton's 10250T pushbuttons are the ideal choice for applications demanding unwavering reliability.

• Heavy-duty zinc die-cast construction
• Durable chrome finish
• Rugged, one-piece metal body

Product Highlights

The Eaton 10250T472 push button operator is designed for challenging environments, offering durability and consistent performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T472
• Country of Origin: China

Technical Specifications

• Brand: Eaton
• Series: 10250T
• Voltage: 240VAC
• Approval: UL, CSA, CE
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Duty Rating: Heavy Duty
• Action: Momentary Push and Pull, Maintained Intermediate Heavy-Duty
• Mpn: 10250T472
• Upc: 782113226033
• Gtin: 782113226033
• Product Length/Depth: 2.4 in
• Product Height: 3.4 in
• Product Width: 2.1 in
• Product Weight: 0.3 lb
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Catalog Notes: Contact blocks 10250T55 and 10250T57 cannot be used with this operator
• Product Type: Pushbutton
• Application: Pushbutton
• Special features: 10250T series
• Type: 30.5 mm Heavy-Duty Watertight/Oiltight
• Operating mode: Intermediate: maintained Pull: momentary Push: momentary
• Illumination: Illuminated
• Light unit type: Incandescent, resistor
• Light unit voltage: 240 Vac
• Number of positions: 4
• (Switching-Indication) NEMA Rating: NEMA 4X
• Component: Push Button
• Manufacturer: Eaton
• (Switching-Indication) Operation: Momentary Push-Pull
• (Switching-Indication) Size: 30.5 mm
• Current Type: AC
• Country of Origin: China
