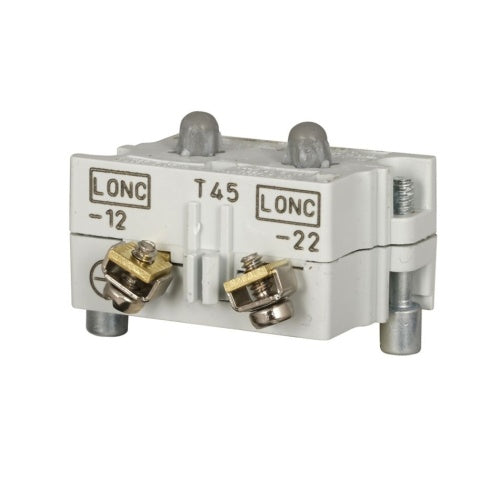

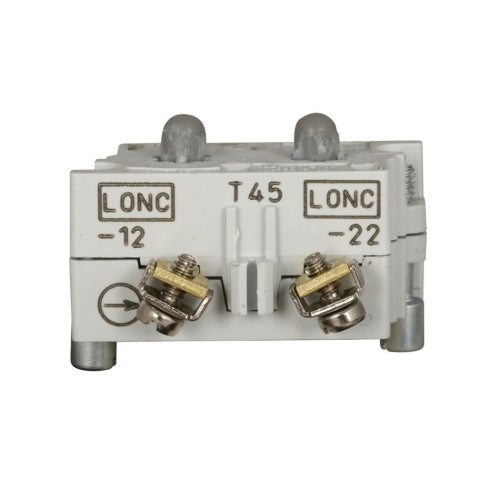

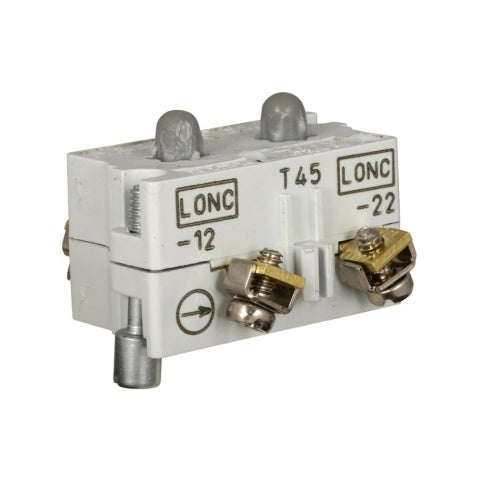

Eaton 10250T45 Pushbutton Contact Block 2LONC

Product Description

The Eaton 10250T45 is a 10250T series pushbutton contact block. This special function contact block features a 2LONC contact configuration and pressure terminals. Constructed with heavy-duty zinc die-casting, these 30.5 mm pushbuttons ensure durability and longevity. It is designed to excel in challenging environments.

• Heavy-duty zinc die-cast construction
• Durable chrome finish
• Rugged, one-piece metal body

Product Highlights

The Eaton 10250T45 contact block is ideal for automation and logic control equipment applications, offering reliable contact performance even in harsh conditions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T45
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton 10250T pushbutton contact block
• Catalog Number: 10250T45
• UPC: 782113205274
• Product Length/Depth: 2.1 in
• Product Height: 1.3 in
• Product Width: 1.9 in
• Product Type: Pushbutton accessory
• Type: 30.5 mm, Heavy-Duty
• Contact configuration: 2 LONC (special function)
• Series: 10250T
• Terminals: Pressure
• Brand: Eaton - Cutler Hammer
• Numeric ID: 3882618
• Sub Component: Contact Block
• Component: Accessories
• Manufacturer: Eaton
• (Switching-Indication) Size: 30.5 mm
• Color: Black
• UNSPSC: 39122221
• Material: Die-Cast Zinc
• Application: For automation and logic control equipment applications
• Mounting Type: 6-Stack
• Operator Type: Pushbutton
• Terminal Type: Pressure
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Enclosure Type: IP65
• Contact Material: Silver
• Contact Configuration: 2NC
