Product Description

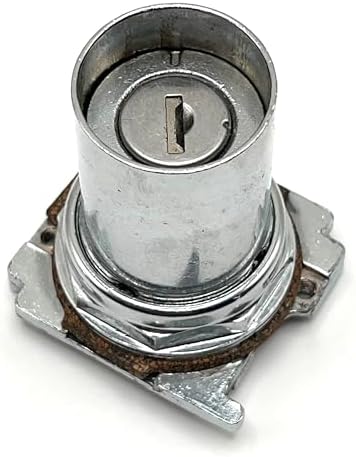

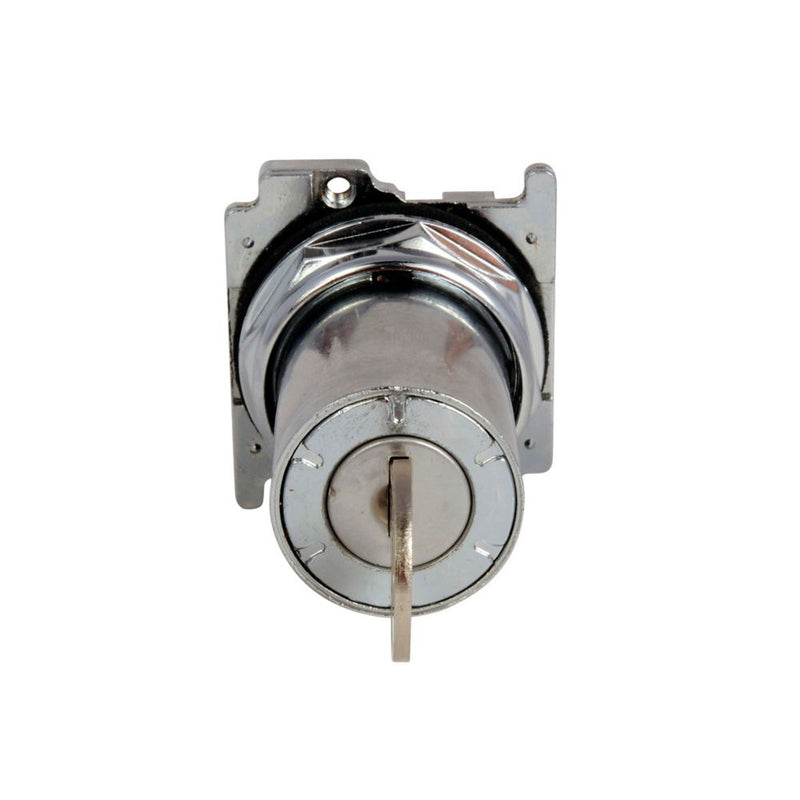

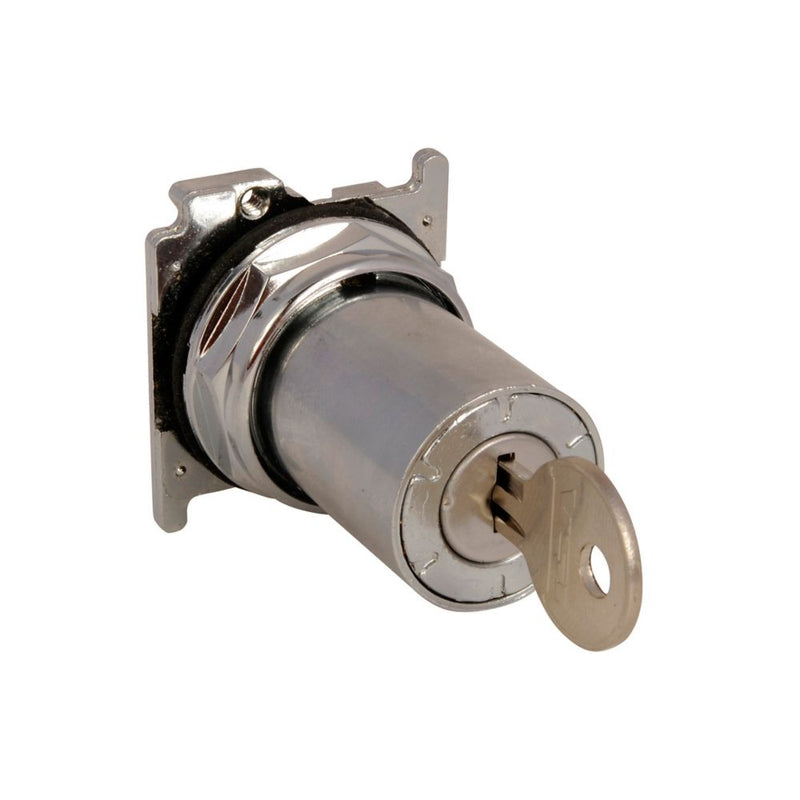

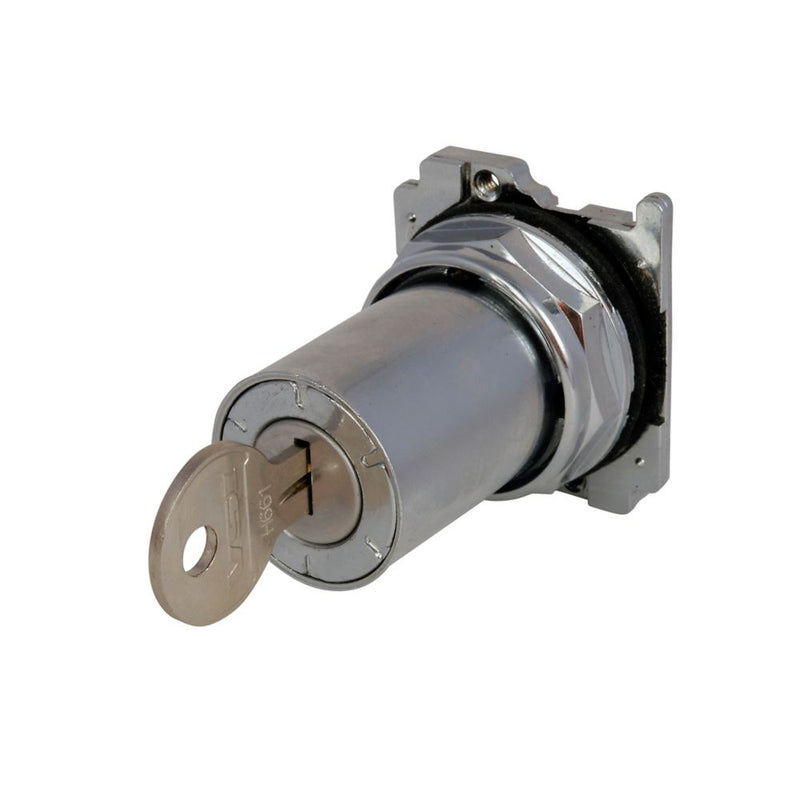

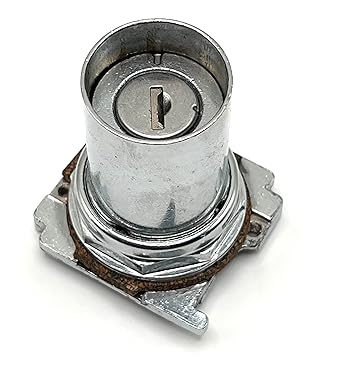

The Eaton 10250T438 is a heavy-duty 30.5 mm pushbutton designed for industrial automation. This pushbutton features a non-illuminated design with 2 keyed positions (free momentary, push to lock), a silver actuator, and chrome bezel. It is rated for NEMA 3, 3R, 4, 12, and 13 environments.
- Heavy duty zinc die-cast construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
Product Highlights
This Eaton pushbutton is suitable for harsh conditions including water, oil, and dust exposure.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T438
-
Country of Origin: Dominican Republic
Technical Specifications
-
Product Name: Eaton 10250T pushbutton
-
Catalog Number: 10250T438
-
UPC: 782113225999
-
Product Length/Depth: 3.3 in
-
Product Height: 2.1 in
-
Product Width: 2.3 in
-
Catalog Notes: Key Removal in Right Position Only
-
Product Type: Pushbutton
-
Type: 10250T
-
Actuator color: Silver
-
Bezel: Chrome
-
Actuator: Key operated
-
Operating mode: 2 keyed positions (free momentary, push to lock)
-
Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
-
Illumination: Non-illuminated
-
Series: 10250T
-
Operation Mode: ON-OFF
-
Current Rating: 10 Amps
-
Operating Voltage: 120 Volts
-
Connector Type: Clamp
-
Brand: Eaton
-
Switch Type: Rotary
-
Terminal: Screw
-
Material: Stainless Steel
-
Circuit Type: 2-way
-
Mounting Type: Surface Mount
-
Number of Positions: 2
-
Lower Temperature Rating: 1 Degrees Fahrenheit
-
Upper Temperature Rating: 150 Degrees Fahrenheit
-
International Protection Rating: IP65
-
Specification Met: UL
-
Alternate Mfr Part Number: 10250T438
-
Manufacturer Part Number: 10250T438
-
UPC Code: 782113225999
-
Size: 30.5
-
Temperature Rating: 1 to 150
-
Voltage Rating: 600
-
Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
-
Operator Type: Keyed
-
Application: Stationary Machinery, Equipment Outside Factory and Other Applications
-
Finish: Polished Chrome
-
Color: Silver
-
UNSPSC: 39122216
-
Category: Automation
-
Item Subcategory: Pilot Device/Push Button
-
Family: 10250T Series
