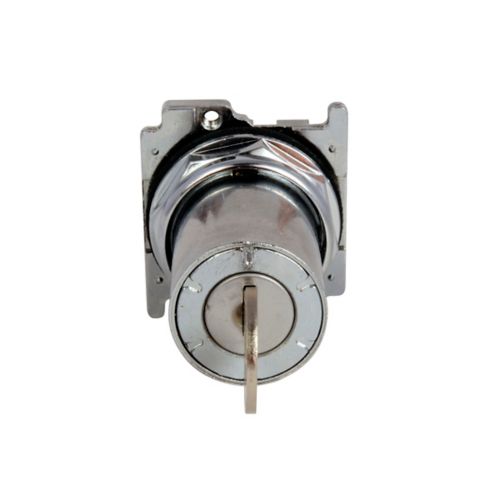

Eaton 10250T437 Pushbutton 30.5 mm

Product Description

The Eaton 10250T437 pushbutton is a 30.5 mm heavy-duty, non-illuminated control accessory. It features 2 keyed positions for free momentary and push-to-lock operation with a silver actuator and chrome bezel. It is suitable for stationary machinery, equipment outside factory and other applications. The motor control parts has a NEMA rating of 3, 3R, 4, 12, 13.

• Heavy duty zinc die-cast construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This Eaton pushbutton features an integral locking mechanism, enabling locking units in various positions. It has grounding nibs on the operator casing and enclosed silver contacts.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T437

Technical Specifications

• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Silver
• Bezel: Chrome
• Actuator: Key operated
• Operating mode: 2 keyed positions (free momentary, push to lock)
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Series: 10250T
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Key Removal in Center and Right Positions
• Brand: Eaton
• Finish: Polished Chrome
• UNSPSC: 39122216
• Material: Die-Cast Zinc
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Mounting Type: Surface
• Operator Type: Keyed
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Voltage Rating: 600
• Temperature Rating: 1 to 150
• Size: 30.5 mm
• Alternate Mfr Part Number: 10250T437
• Manufacturer Part Number: 10250T437
• Overview: 10250T, 30.5 mm, Heavy-Duty, NEMA 3, 3R, 4, 12, 13, Non-illuminated, 2 keyed positions (free momentary, push to lock), Key, Silver actuator, Chrome bezel
• NEMA Rating: 3, 3R, 4, 12, 13
• Approval: Ul, Csa, Ce
• Length (in): 2.1
• Width (in): 1.9
• Height (in): 1.9
• Mpn: 10250T437
