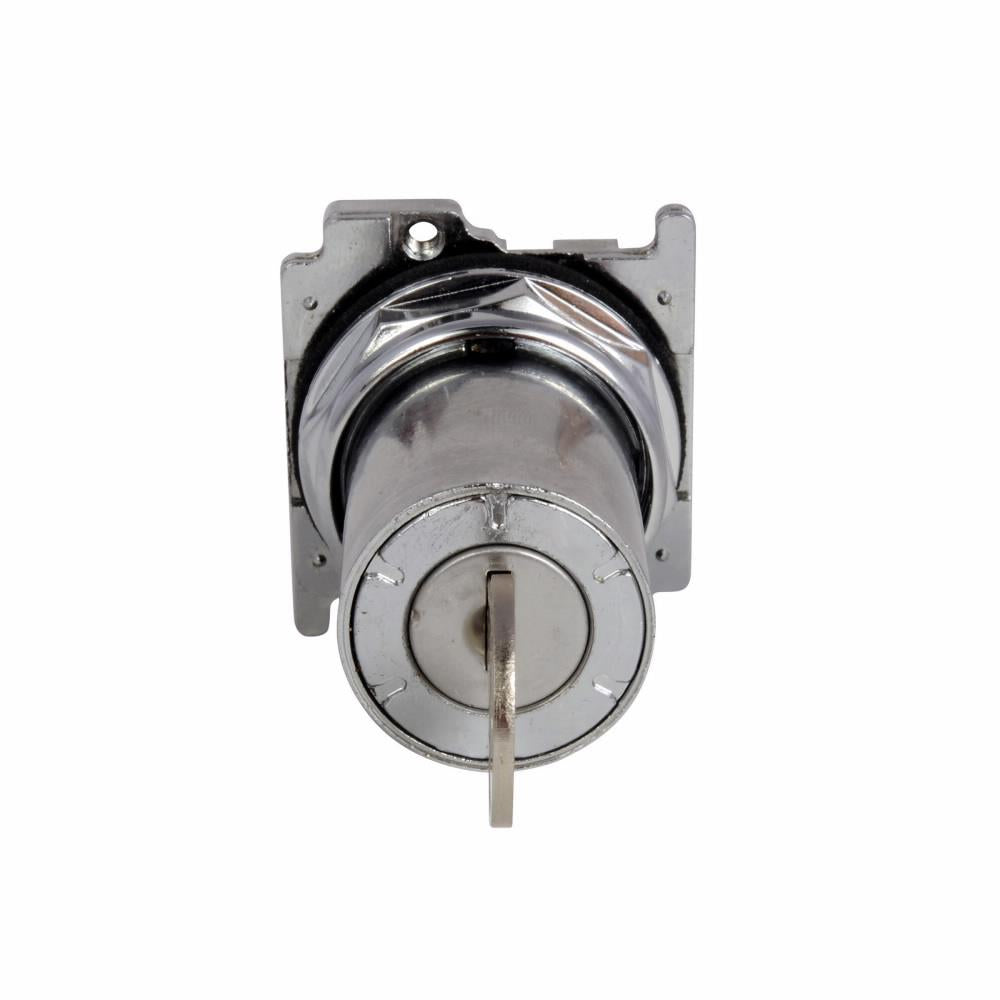

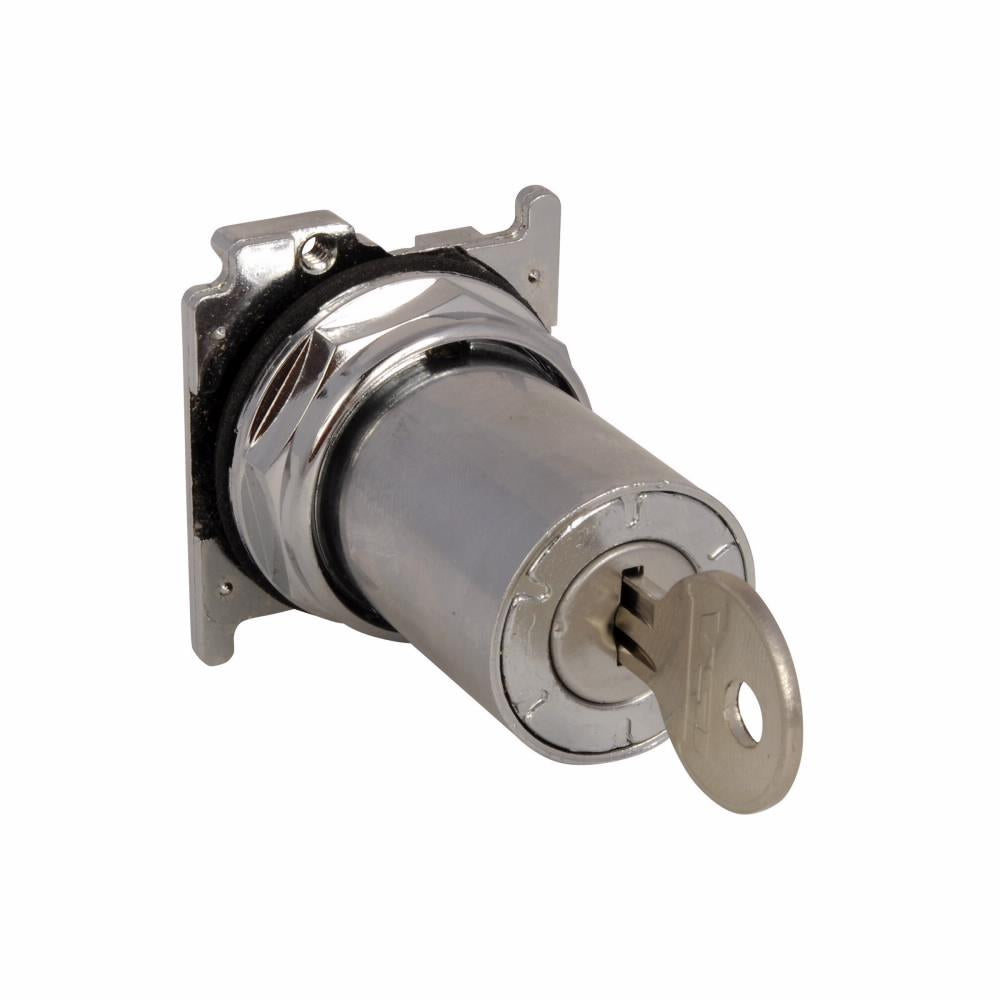

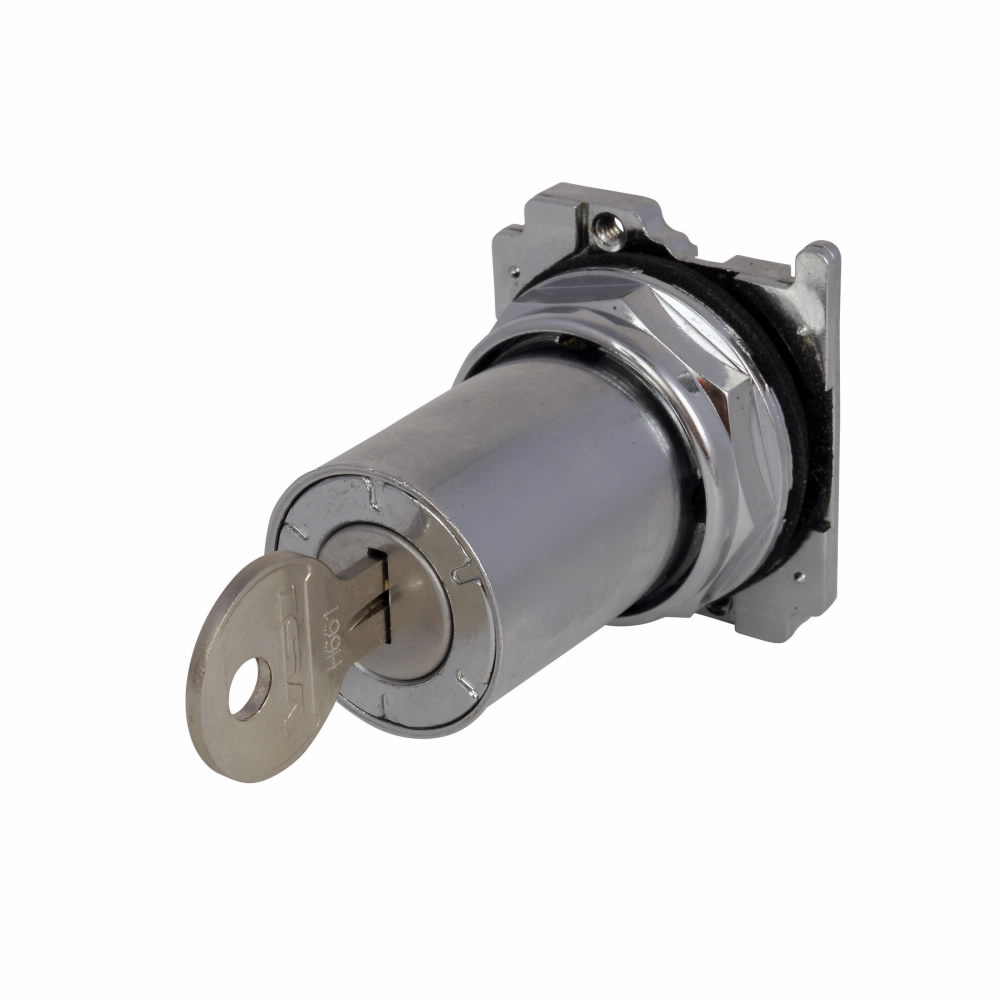

Eaton 10250T435 Pushbutton 30.5 mm

Product Description

The Eaton 10250T435 is a 30.5 mm heavy-duty pushbutton with a zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, which can prevent operation in freezing environments. It features a momentary contact mode and a keyed/lock down operator.

• Free momentary, lock down operating mode
• Key removal in center and right positions
• Heavy-duty zinc die-cast construction

Product Highlights

This heavy-duty pushbutton is designed for challenging environments, offering durability and consistent performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T435

Technical Specifications

• Contact Mode: Momentary
• Enclosure Type: NEMA 3/3R/4/12/13
• Finish: Polished Chrome
• Operator Type: Keyed/Lock Down
• Series: 10250T
• Type: Heavy Duty
• Size: 30.5 mm
• Number of Positions: 2
• Product Length/Depth: 1.9 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Key Removal in Center and Right Positions
• Product Type: Pushbutton
• Actuator color: Silver
• Bezel: Chrome
• Actuator: Key operated
• Operating mode: 2 keyed positions (free momentary, lock down)
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Mounting: Panel
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
• Applications: Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Duty Rating: Heavy Duty
• 12-Digit UPC: 782113225975
• GTiN: 00782113225975
• Product UPC: 78211322597
• Weight: .4 lb
• Height: 2.2 Inch
• Length: 1.9 Inch
• NEMA Rating: NEMA 4
