Eaton 10250t416 Pushbutton 30.5 Mm Chrome Nema 4X

Product Description

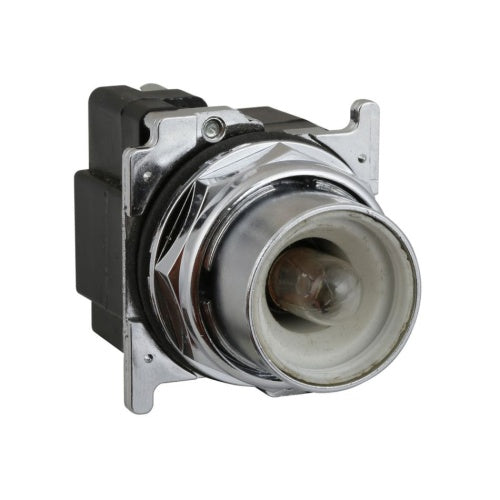

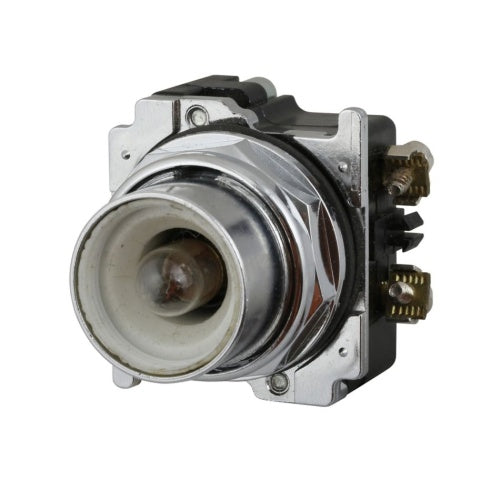

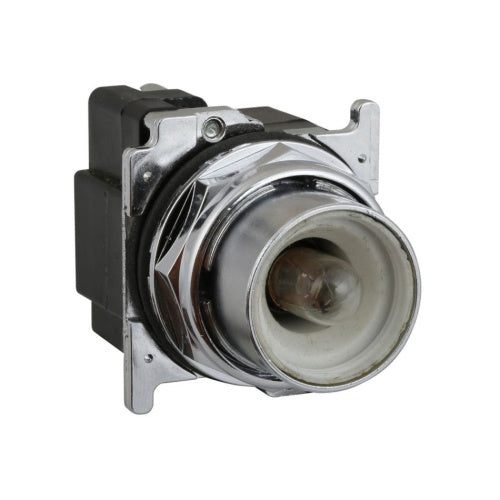

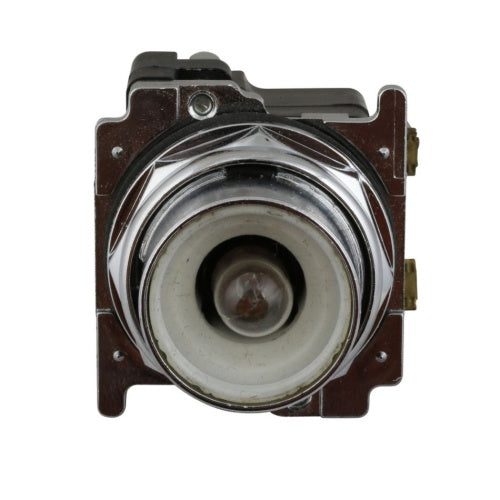

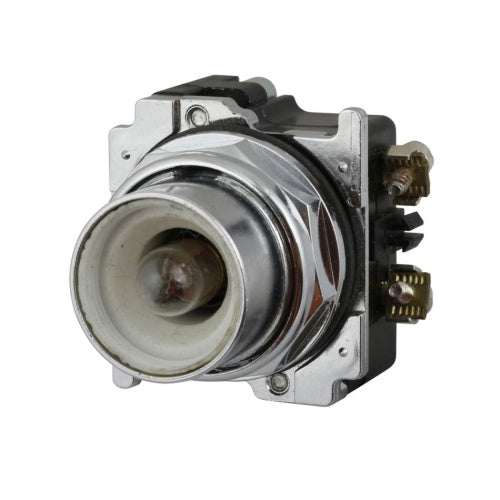

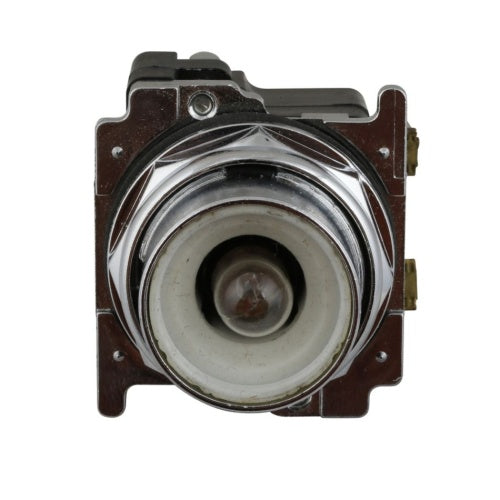

The EATON 10250t416 is a heavy-duty 30.5 mm pushbutton operator from the 10250T Series, built for demanding industrial control applications. The operator features a chrome finish and is housed in a zinc die-cast metal body engineered to be water- and oil-tight. Reliability nibs on the contact interface maintain consistent switching performance in dry circuit and fine dust conditions. Drainage holes in the housing prevent liquid accumulation, allowing the unit to function reliably in freezing environments. Licensed electricians and industrial control technicians install this component as part of panel-mounted control stations in manufacturing, process, and utility settings.

The 10250t416 is suited for industrial control panels and operator stations where environmental exposure is a primary concern. Its NEMA 4 and NEMA 4X ratings make it appropriate for washdown areas, outdoor enclosures, and locations subject to dust, oil mist, or corrosive agents. The 10250T Series design consolidates a broad range of functionality options within a single metal operator housing, simplifying panel layout and reducing the number of unique components required on a job.

Key Features

• 30.5 mm operator size fits standard 30.5 mm panel cutouts
• Zinc die-cast metal housing provides robust mechanical durability
• Chrome finish operator head
• Water- and oil-tight construction rated to NEMA 4 and NEMA 4X
• Reliability nibs maintain contact performance in dry circuit and fine dust conditions
• Drainage holes resist liquid accumulation in freezing temperature environments

Compatibility

Designed as an OEM-style component within the 10250T Series heavy-duty pushbutton platform, compatible with 10250T Series contact blocks and accessories per standard series configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before installing or replacing the operator. Verify the panel cutout diameter matches the 30.5 mm mounting requirement before fitting the operator. Do not overtighten the mounting hardware, as the zinc die-cast body can crack under excessive torque.

Technical Specifications

• Series: 10250T
• Operator Size: 30.5 mm
• Color: Chrome
• Component Type: Push Button
• Housing Material: Zinc Die-Cast Metal
• NEMA Ratings: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t416
