Eaton 10250t412 Illuminated Pushbutton Operator 30.5mm

Product Description

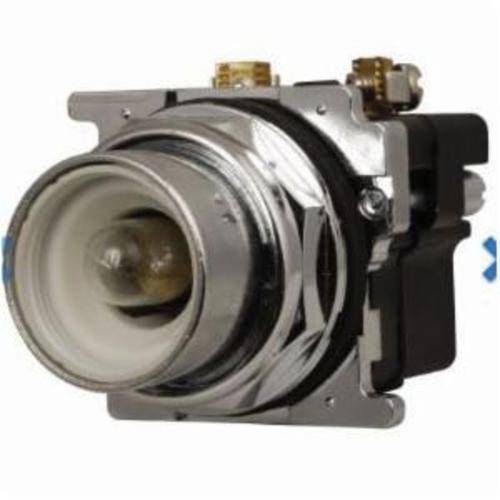

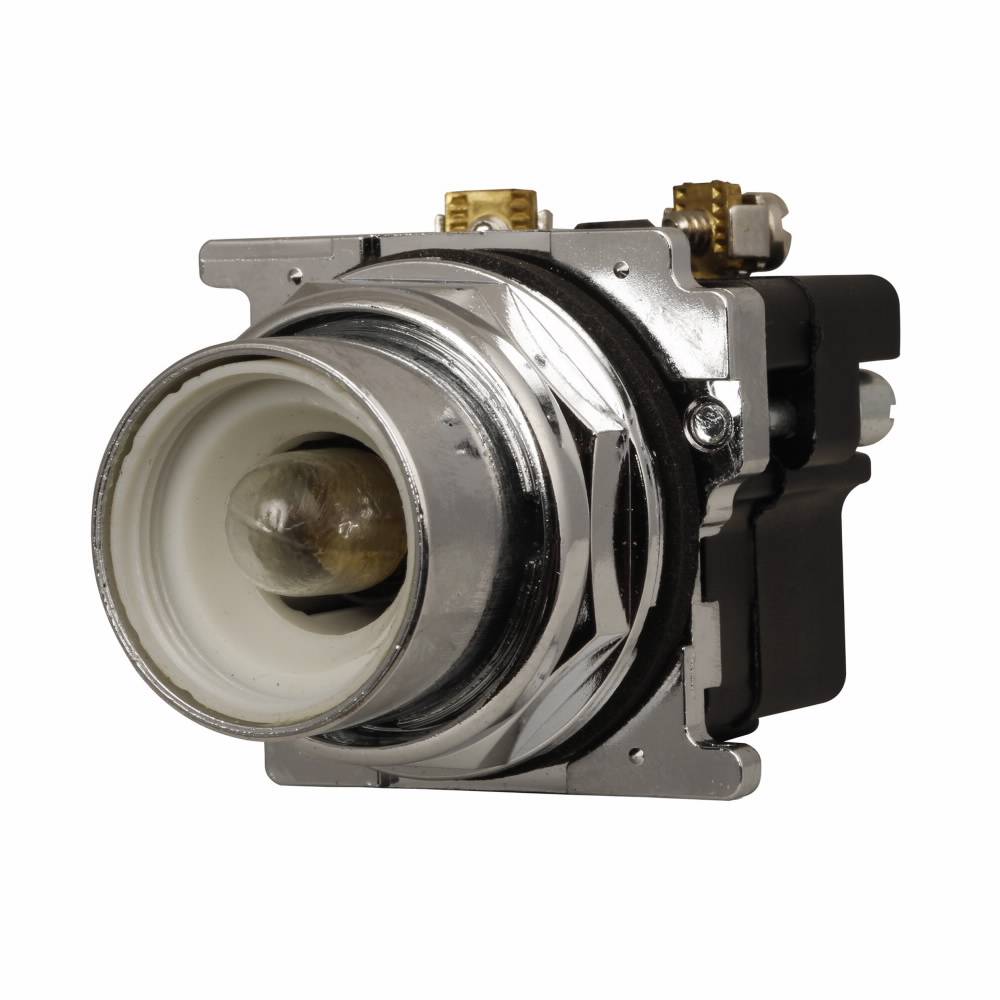

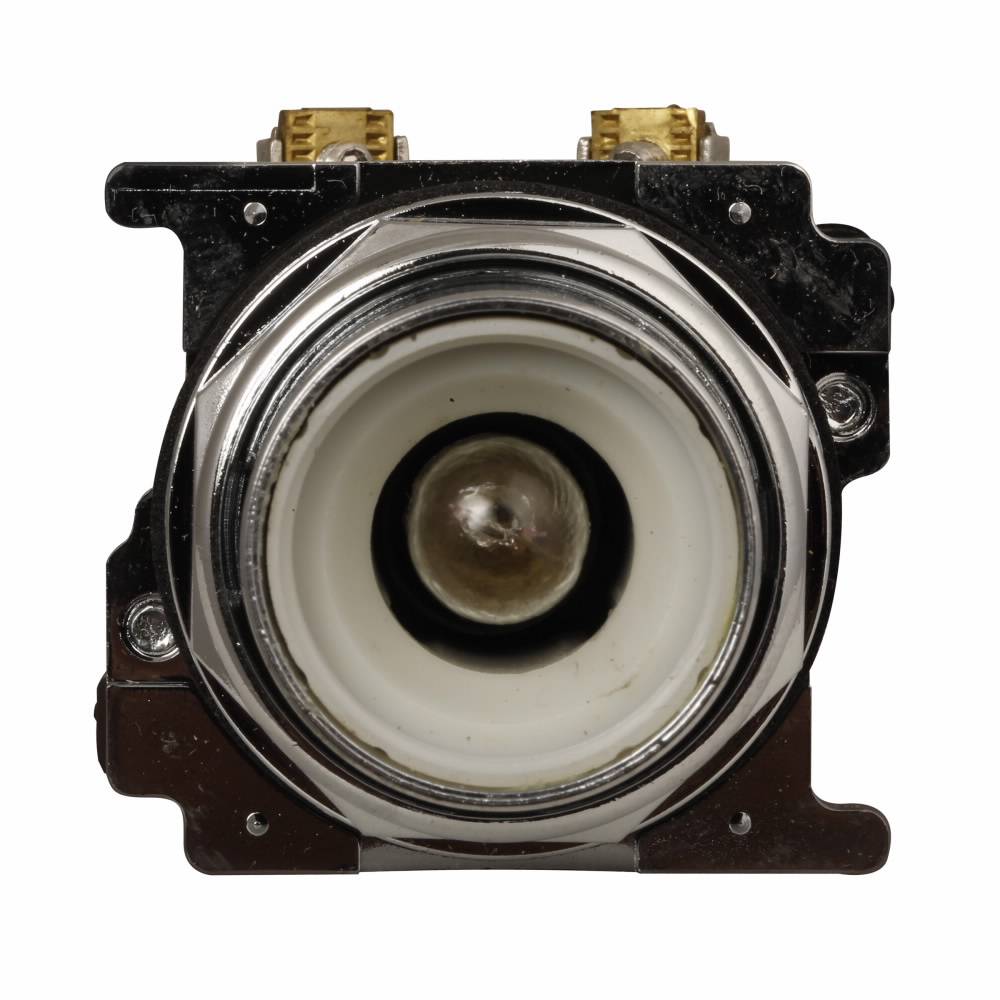

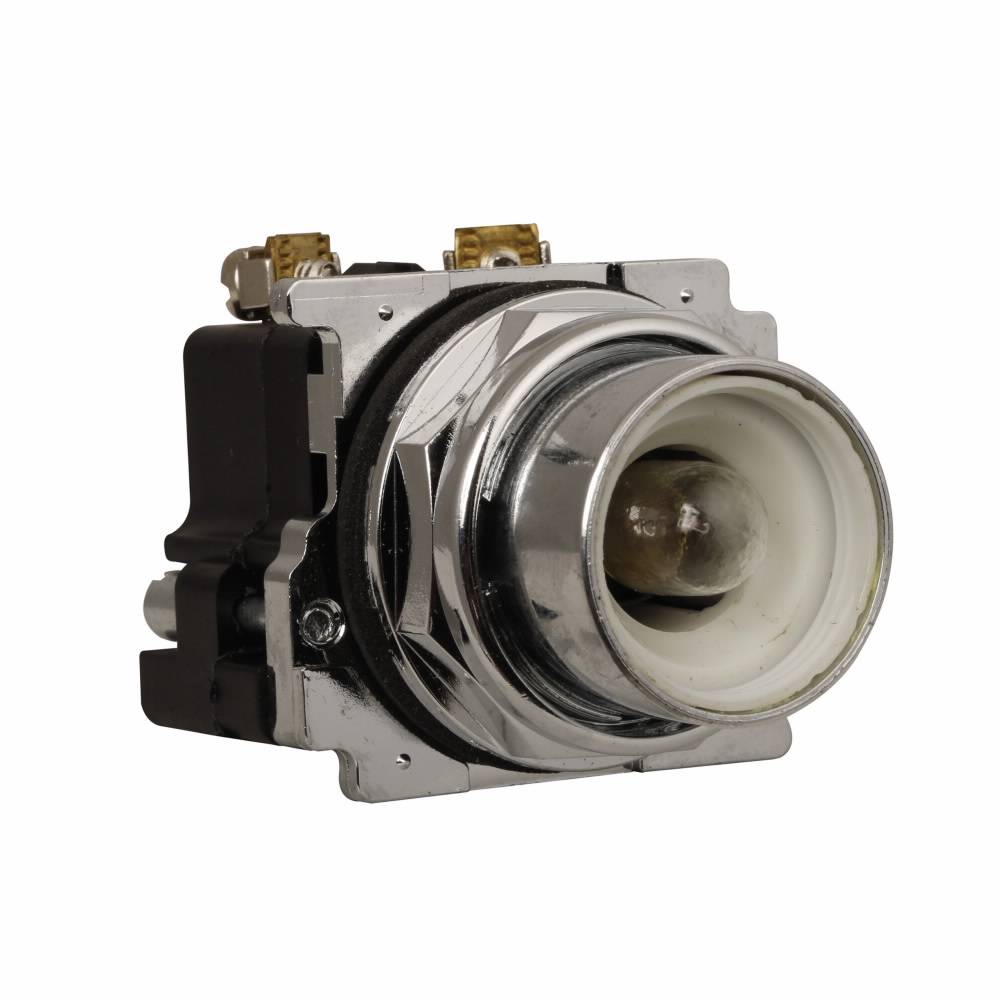

The EATON 10250t412 is a heavy-duty illuminated pushbutton operator designed for industrial control applications where oiltight and watertight protection is required. Built on the 10250T series platform, it features a 30.5 mm extended button operator with momentary contact action and an incandescent lamp for status indication. Rated at 240 VAC and constructed from die cast zinc, this operator is built to withstand demanding environments. The chrome bezel and flush mount configuration suit panel installations where a clean, rugged interface is needed. A licensed electrician or industrial controls technician typically handles installation and wiring.

This pushbutton operator is suited for automation and logic control equipment in industrial, commercial, and heavy manufacturing settings. The NEMA 3, 3R, 4, 4X, 12, and 13 enclosure ratings, along with IP65 protection, make it appropriate for indoor and outdoor panels exposed to dust, oil mist, and water. The operating temperature range of 1 to 150 degrees F covers most standard facility environments. Drainage holes inside the operator body help prevent liquid accumulation that could cause freeze-related failure in cold conditions. Reliability nibs on the contact mechanism maintain consistent contact performance under dry circuit and fine dust conditions.

Key Features

• 30.5 mm extended button operator with momentary contact action
• 240 VAC rating suitable for industrial control panel applications
• NEMA 3/3R/4/4X/12/13 and IP65 enclosure protection against oil, water, and dust
• Die cast zinc construction for heavy-duty durability
• Incandescent lamp provides clear illuminated status indication
• Includes center conduit clip for simplified panel mounting
• Drainage holes reduce risk of internal liquid buildup and freeze-related failure

Compatibility

Designed as an OEM-style operator within the EATON 10250T series of 30.5 mm heavy-duty oiltight and watertight control devices for industrial control panels.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and verify the circuit is de-energized before mounting or wiring the operator. Confirm the panel cutout matches the 30.5 mm mounting diameter before installation. Do not exceed the rated voltage or operate outside the stated temperature range.

Technical Specifications

• Series: 10250T
• Operator Type: Extended Button, Momentary Contact
• Voltage Rating: 240 VAC
• Temperature Rating: 1 to 150 degrees F
• Mounting Type: Flush Mount
• Size: 30.5 mm
• Enclosure Type: NEMA 3/3R/4/4X/12/13, IP65
• Lamp Type: Incandescent
• Bezel/Housing: Chrome
• Material: Die Cast Zinc
• Includes: Center Conduit Clip
• Application: Automation and Logic Control Equipment
• Warranty: 1 year
• UNSPSC: 39122216

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t412
