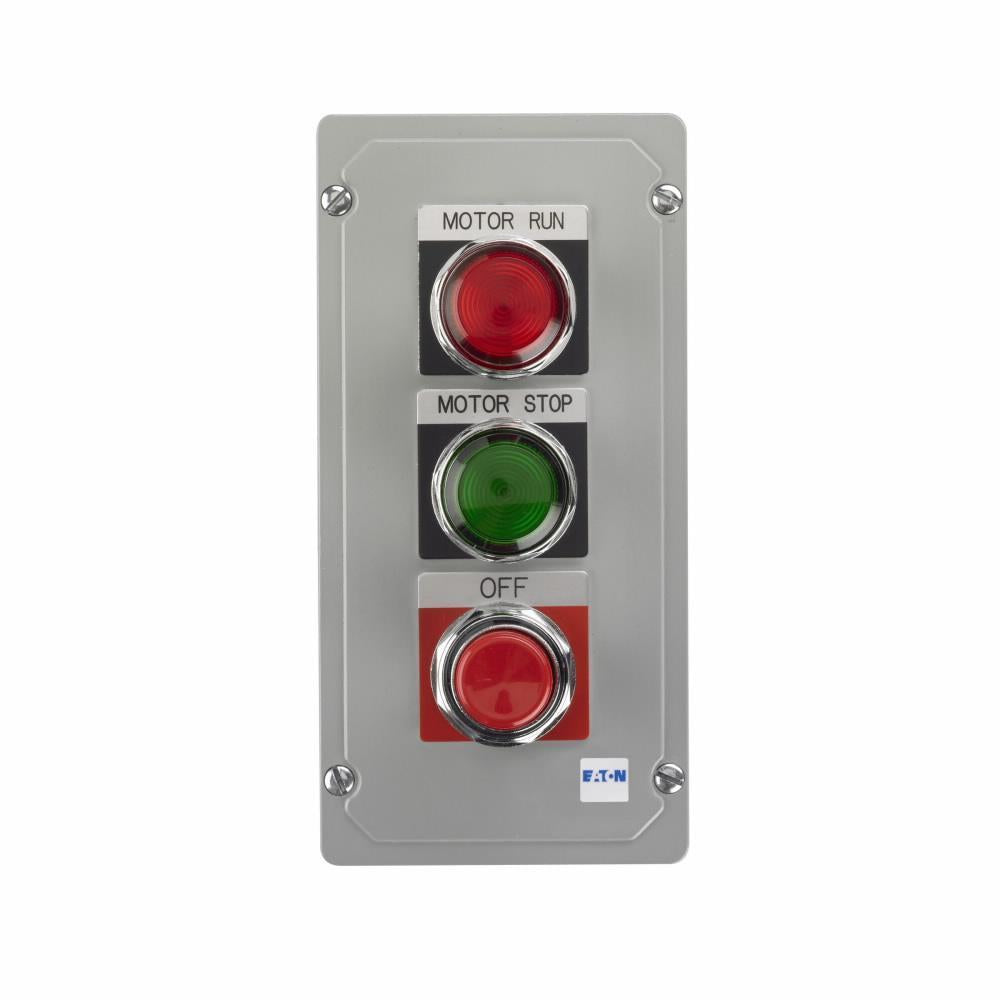

Eaton 10250T3614 Control Station 3-Operators

Product Description

The Eaton 10250T3614 is part of Eaton's 10250T line of 30.5 mm pushbuttons, featuring a heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, which can prevent operation in freezing environments.

• Heavy-duty zinc die cast construction
• Flush mounting
• 2NO-3NC contact configuration

Product Highlights

This assembled heavy-duty oiltight control station has a momentary contact mode and OPEN/CLOSE/STOP legend.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3614
• Country of Origin: USA

Technical Specifications

• Actuator: Pushbutton, flush
• Contact Mode: Momentary
• Legend: OPEN CLOSE STOP
• Material: Die Cast Zinc
• Mounting Type: Surface Mount
• Series: 10250T Series
• Type: Assembled Heavy Duty Oiltight
• Contact Configuration: 2NO-3NC
• Number of Operators: 3
• NEMA Rating: NEMA 4/4X/12/13
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T3614
• UPC: 782113227269
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Operating mode: Spring-return (impulse / momentary)
• Number of elements: 3
• Rating: NEMA 4X NEMA 12 NEMA 13 NEMA 4
• Brand: Eaton - Cutler Hammer
• Contact Form: 2NO-3NC
• Mounting Hole Size: 31 mm
• Number of Buttons: 3
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Control station
• Product series / family name: 10250 series
• Functions: 30mm assembled control station - 3-elements 2 x black flush push btn. 1 x red plt lght
• Rated current: 6A (120Vac; AC-15) 4A (240Vac; AC-15) 2A (660Vac; AC-15) 1A (125Vdc; DC-13) 0.55A (250Vdc; DC-13) 0.1A (660Vdc; DC-13)
• Diameter: 30.5mm (door punch)
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Normally Closed (NC) auxiliary contacts: 3 NC contacts
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Marking: "OPEN / CLOSE / STOP"
• Mounting: Surface
• IP/NEMA Rating: NEMA 4X, NEMA 12, NEMA 4
• Package Qty: 1.0000
• Manufacture: EATON
• Mfr Catalog Number: 10250T3614
• Product Group: GL15A
• Product UPC: 78211322726
• UNSPSC: 39121565
• Product Category: Heavy Duty Control Statio
• Commodity Code: 4231
• Country of Origin: DOM
• Unique Product Key: 281046
