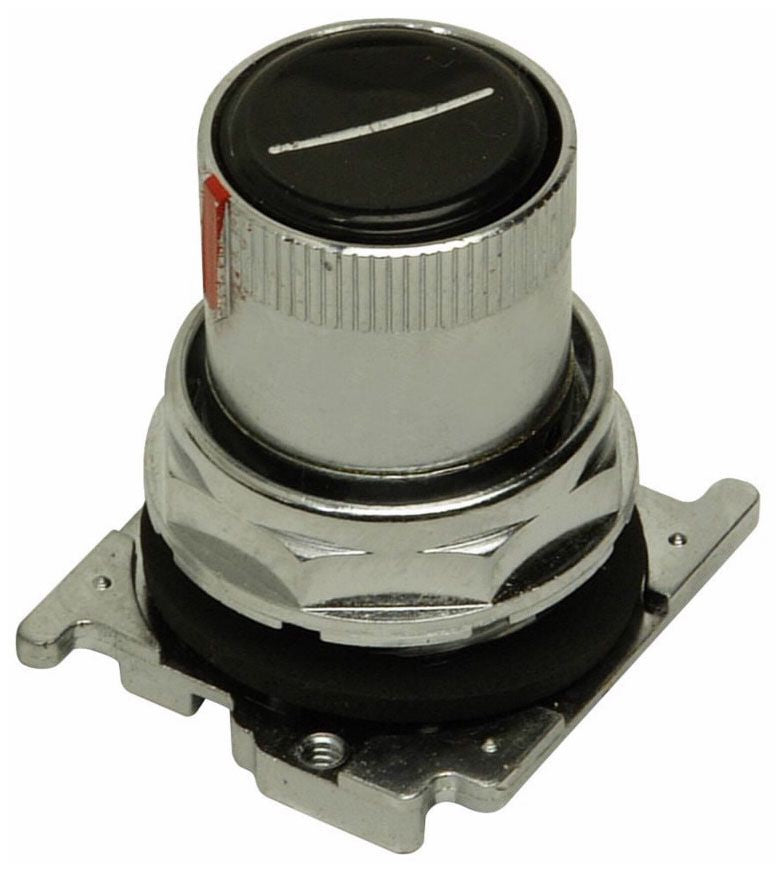

Eaton 10250T3214 Extended Pushbutton Operator

Product Description

The EATON 10250T3214 is an extended type pushbutton operator designed for use in industrial control and switching applications. Pushbutton operators of this type serve as the mechanical actuator component in a control station assembly, allowing operators to send discrete on/off signals to control circuits. The extended button profile provides a larger contact surface for reliable actuation, even when operators are wearing gloves. This component is installed by licensed electricians and industrial control technicians as part of a complete control station or enclosure assembly.

The 10250T3214 is suited for industrial environments where panel-mount pushbutton control stations are required. Typical applications include motor control centers, machine tool control panels, and process control stations in commercial and industrial facilities. It is designed to mount into standard 30mm cutout control station enclosures consistent with the EATON 10250T series product family.

Key Features

• Extended button type provides increased actuation surface area for ease of use in gloved-hand environments
• Designed for panel-mount installation in standard 30mm control station cutouts
• Part of the EATON 10250T series, a widely used industrial pushbutton platform
• Suitable for discrete control circuit switching in industrial and commercial applications

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard 30mm industrial pushbutton control station enclosures. Specific model compatibility was not provided in the available product data.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before servicing or installing any pushbutton operator. Verify that the enclosure cutout diameter is compatible with the 10250T series mounting requirements before installation. Do not exceed the rated electrical parameters of the operator or connected contact block.

Technical Specifications

• UPC: 78211332087
• Operator Type: Extended Type Pushbutton

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T3214
