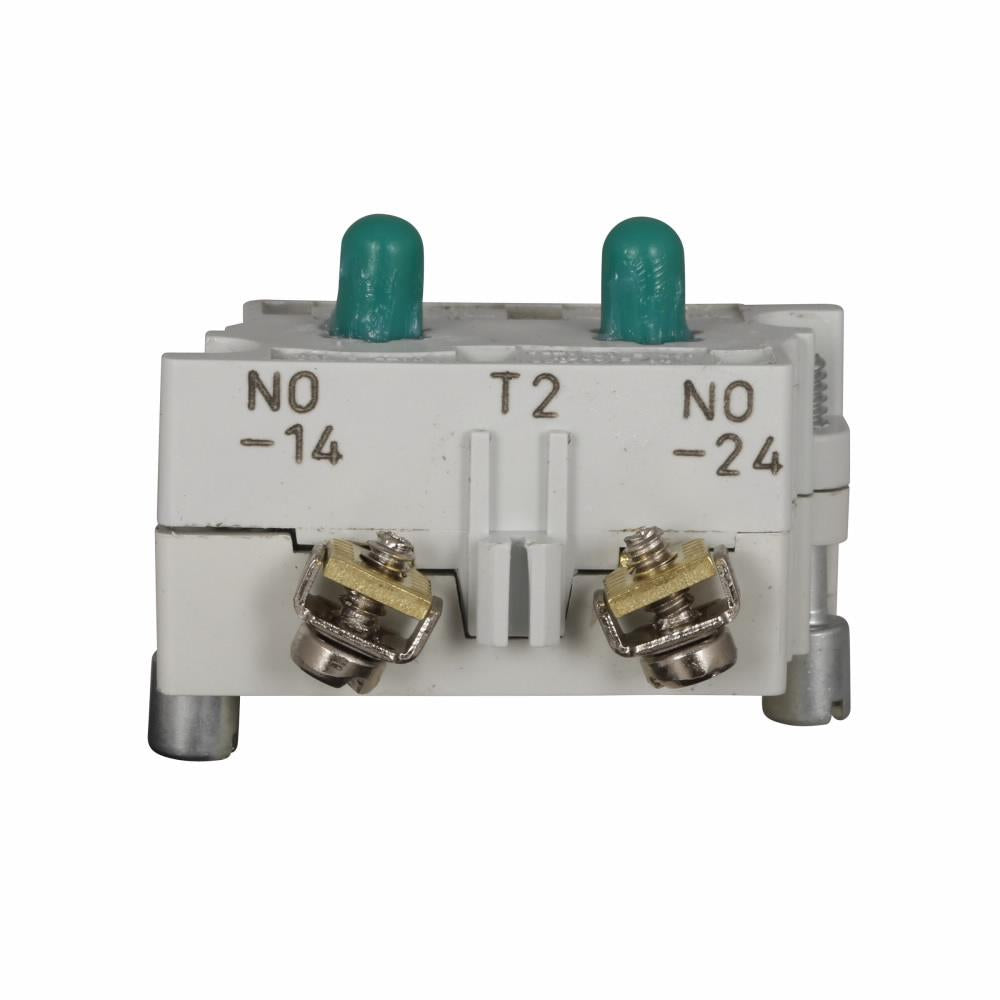

Eaton 10250T2E Pushbutton Contact Block 2NO

EATON
Brand: EATON
SKU: 10250T2E
Availability: In Stock

Ships same day if ordered by 12 pm
$145.45
$145.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton 10250T2E is a contact block with a 2NO contact configuration and pressure terminals. The Eaton 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions.

  • Stack up to 6 blocks (12 circuits) unless otherwise noted
  • 30.5 mm size
  • Heavy-duty zinc die cast construction

Product Highlights

This contact block connects input and output wires with compatible operator switches, pilot lights, and other switches.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 10250T2E
  • Country of Origin: United States
Technical Specifications
Product Name
Eaton 10250T pushbutton contact block
Catalog Number
10250T2E
UPC
782113392141
Product Length/Depth
1.9 in
Product Height
2.2 in
Product Width
1.3 in
Product Weight
0.15 lb
Compliances
CE Marked
Certifications
CSA Certified, UL Listed
Catalog Notes
Stack up to 6 blocks (12 circuits) unless otherwise noted
Product Type
Pushbutton accessory
Type
Heavy Duty Logic Level
Contact Configuration
2NO
Series
10250T
Terminals
Pressure
Size
30.5 mm
Contact Rating
0.5 A at 120 VAC/VDC
Contact Material
Palladium
Block Material
Thermoplastic
Operator Type
Pushbutton
NEMA Rating
NEMA 3/3R/4/4X/12/13
Enclosure Type
IP65
Mounting Type
6-Stack
Material
Die-Cast Zinc
Dimensions
1.9 in L x 1.3 in W x 2.2 in H
Brand
EATON
Amperage
10
Voltage
600VDC
Approval
UL, CSA, CE
Terminal Connection
Pressure
Length (in)
1.9
Width (in)
1.3
Height (in)
2.2
Duty Rating
Heavy Duty
Action
Momentary
Mpn
10250T2E
Upc
782113392141
Gtin
00782113392141
UNSPSC
39122221
Application
For automation and logic control equipment applications
Terminal Type
Pressure
Mounting
6 Stack
Accessory Type
Contact Blocks
Compatible with Series
10250T; E34
Compatible Operator
Push Button
AC Contact Rating
0.5 A @ 120 V
DC Contact Rating
10 A @ 600 V
Includes Mounting Block
Mounting Block Included
Mounting Location
Front
NEMA Contact Rating Designation
A600/P600
Panel Mounting Hole Diameter
30 mm
Standards
CE; CSA; UL
Switch Action
Momentary
