Eaton 10250T26211 Roto-Push Operator Cam 11

Product Description

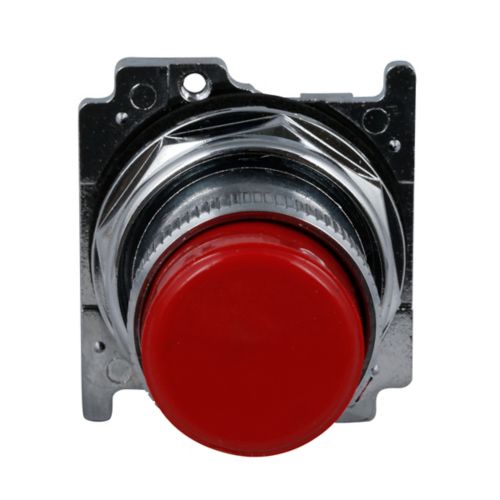

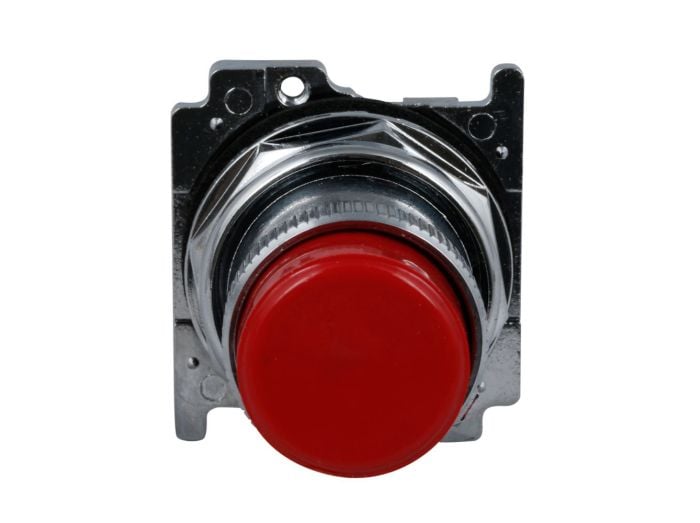

The Eaton 10250T26211 is a 30.5 mm heavy-duty roto-push operator with Cam 11 and a vertical mounting design. It features a die-cast zinc construction with a polished chrome housing and mounting nut. Designed for durability and reliability in demanding industrial environments.

• Heavy duty die-cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

This roto-push operator offers robust performance and secure grounding in various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T26211

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T26211
• UPC: 782113227924
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Red
• Cam code: Cam 11
• Mounting: Vertical
• Actuator: Extended
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Alternate Mfr Part Number: 10250T26211
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 10250T26211
• Color: Red
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Finish: Polished Chrome
• Material: Die-Cast Zinc
• Operator Type: Extended Button
• Size: 30.5 mm
• Temperature Rating: 1 to 150 deg F
• Terminal Type: Saddle Clamp
• Number of Positions: 2
• Voltage Rating: 120 VAC/VDC
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 30.5 mm, Heavy-Duty Roto-Push Operator, 10250T, Cam 11, NEMA 3, 3R, 4, 4X, 12, 13, Extended, Red actuator, Vertical
• Illuminated: No
• Operation: Momentary
• Mounting Type: 30 mm
• Bezel: Metal Round
• Lens/Button Shape: Round Extended
• Operator Color: Red
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE, CSA, UL
• Comments: Roto Push, Vertical Mount
• Net Weight: 0.4 lbs
• Gross Weight: 0.4 lbs
