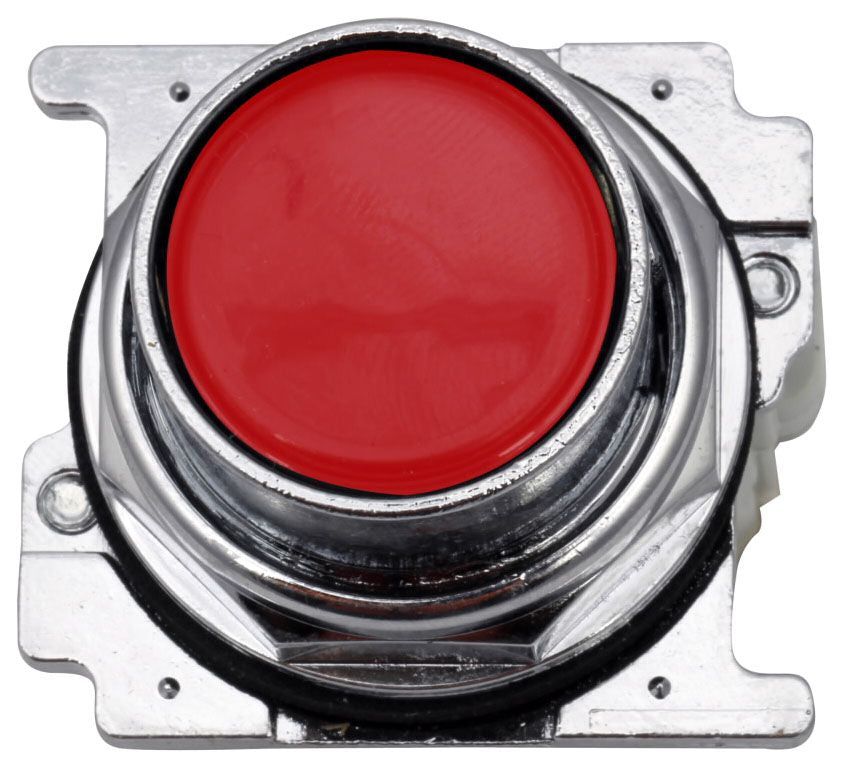

Eaton 10250T23R Flush Type Pushbutton Operator

Product Description

The EATON 10250T23R is a flush-type pushbutton operator designed for industrial and commercial control panel applications. Sized for 30.5mm mounting cutouts, this operator serves as the actuating component in control station assemblies, providing a reliable momentary or maintained switching interface. The unit weighs 0.4 pounds and measures 2.4 inches by 2.1 inches by 3.2 inches, making it a compact fit for standard operator panels. Licensed electricians and industrial control panel builders install this type of device during new panel construction or field replacements requiring standardized 30.5mm hardware.

The 10250T23R is suited for use in industrial control stations, machine tool panels, motor control centers, and process control enclosures where a flush-profile operator is required. Its 30.5mm footprint aligns with widely adopted heavy-duty operator standards common across manufacturing, utility, and commercial building automation environments. This part is typically installed by licensed electricians or certified panel builders working to NFPA 70 (NEC) requirements.

Key Features

• Flush-type operator profile keeps the actuator face level with the panel surface
• 30.5mm mounting size fits standard heavy-duty operator cutouts
• Compact footprint: 2.4 x 2.1 x 3.2 inches
• Lightweight construction at 0.4 pounds
• Designed for integration into modular control station assemblies

Compatibility

Designed as an OEM-style replacement or new-install component for industrial control panels and operator stations requiring a 30.5mm flush-type pushbutton operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements. De-energize and lock out the control panel before removing or installing any operator component. Verify the panel cutout diameter matches the 30.5mm mounting specification before installation. Do not force-fit the operator body into undersized cutouts, as this may damage the operator or the enclosure.

Technical Specifications

• Operator Type: Flush Type
• Mounting Size: 30.5mm
• Length: 2.4 inches
• Width: 2.1 inches
• Height: 3.2 inches
• Weight: 0.4 pounds
• UPC: 78211335769

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T23R
