Eaton 10250T21KB Pushbutton 30.5 mm

Product Description

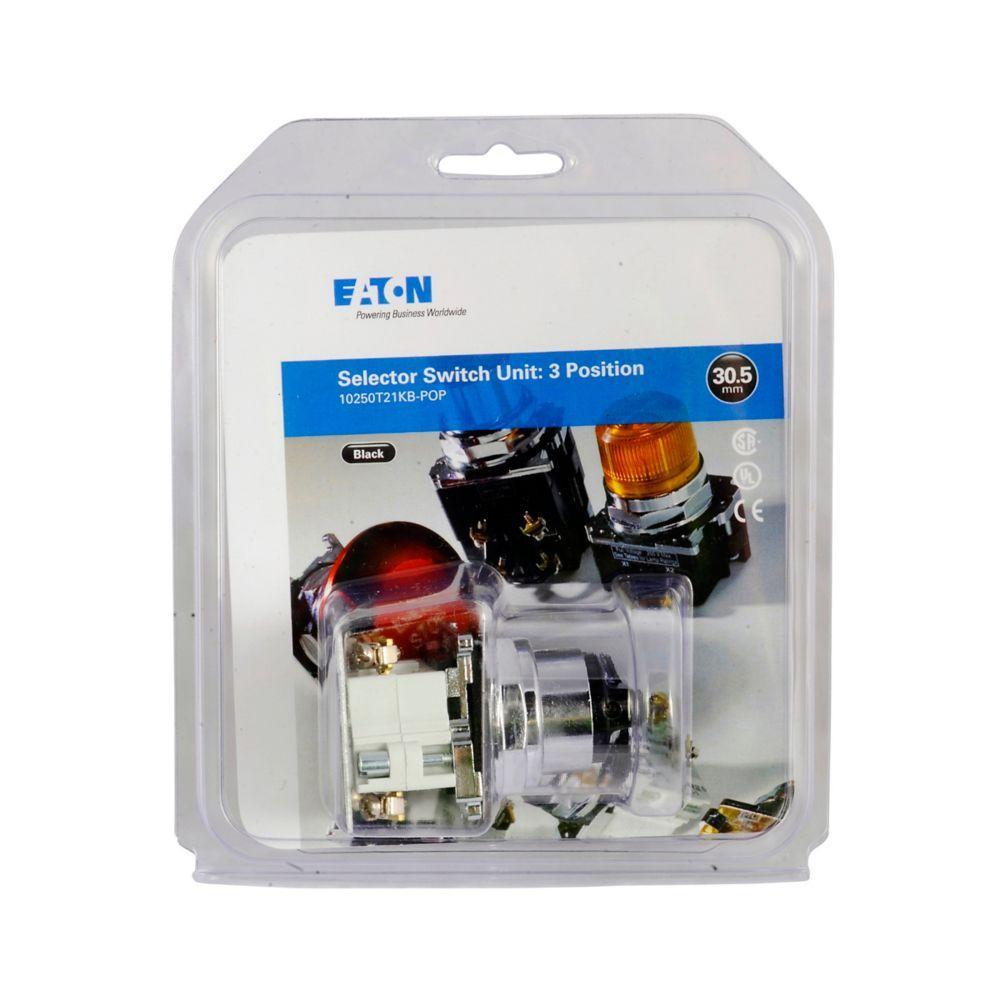

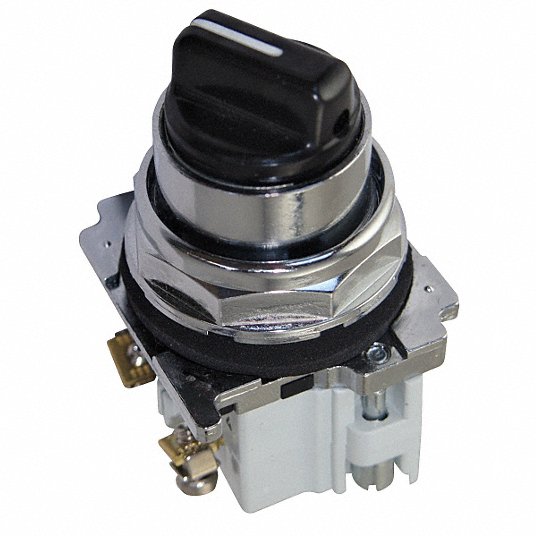

The Eaton 10250T21KB pushbutton is an assembled selector switch from the 10250T series. This heavy-duty, non-illuminated, three-position switch features a black knob actuator and 2NO contact configuration. It is designed for a 30.5 mm mounting hole and is suitable for use in various environments, with NEMA 3, 3R, 4, 4X, 12, and 13 ratings.

• Heavy-duty construction with zinc die-cast.
• Features enclosed silver contacts with reliability nibs.
• Watertight and oiltight for indoor/outdoor use.

Product Highlights

The Eaton 10250T21KB pushbutton is a robust and reliable selector switch suitable for demanding applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T21KB
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T21KB
• UPC Code: 782113358307
• Product Length/Depth: 3.56 in
• Product Height: 1.77 in
• Product Width: 2.03 in
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Black
• Actuator: Knob
• Contact configuration: 2 NO
• Illumination: Non-illuminated
• NEMA rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Series: 10250T
• Number of positions: 3
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 39120000
• Illumination Color: None
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Approvals: CSA Certified, UL listed
• Panel Mounting Hole Diameter: 30 mm
• Brand: EATON
• AC Contact Rating: 10 A @ 600 V
• Action: Maintained/Maintained/Maintained
• Bezel Material: Zinc
• Cam: 3
• Contact Block Material: Metal
• Contact Form: 2NO
• DC Contact Rating: 5 A @ 250 V
• Hazardous Location Specification: Not Rated
• IP Rating: IP68
• NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
• Operator Head Color: Black
• Operator Head Material: Polymer
• Operator Illumination: Non-Illuminated
• Overall Depth: 3.56 in
• Overall Height: 1.77 in
• Overall Width: 2.03 in
• Standards: CE; CSA; UL Listed
• Switch Function @ 1st Position: On
• Switch Function @ 2nd Position: Off
• Switch Function @ 3rd Position: On
• Switch Function @ 4th Position: No Fourth Position
• Switch Head Type: Short Lever
• UNSPSC: 39121513
• Contact Mode: Maintained
• Throw: 60 deg
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Color: Black
• Family: 10250T Series
• Category: Motor Control Parts And Accessories
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Selector switch
• Product series / family name: 10250 series
• Functions: 30mm selector switch / SSw. standard handle/knob
• Rated current: 6A (120Vac; AC-15) 4A (240Vac; AC-15) 2A (660Vac; AC-15) 1A (125Vdc; DC-13) 0.55A (250Vdc; DC-13) 0.1A (660Vdc; DC-13)
• Shape: Round
• Diameter: 30.5mm (door punch)
• Connection type: with pressure connections
• Operating mode: 3-positions All positions Stay-put / Maintained
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Angular positions: -60 0 +60
