Eaton 10250t206n Indicating Light 120VAC 30mm Panel Mount

Product Description

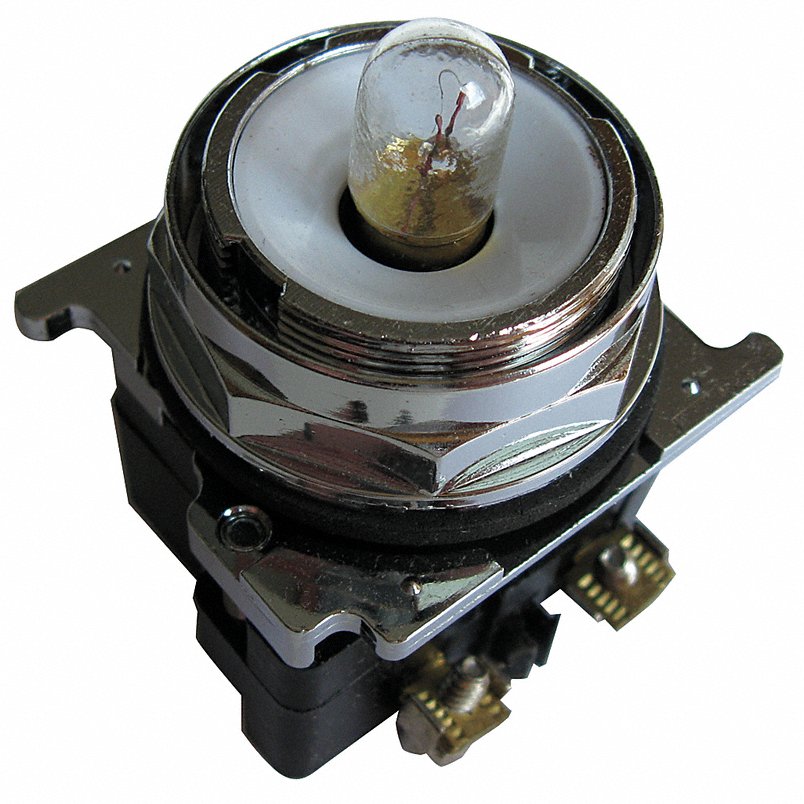

The EATON 10250t206n is an incandescent indicating light designed for panel-mounted industrial control applications. Rated for 120VAC/VDC operation, this unit mounts in a standard 30 mm panel cutout and connects via a saddle clamp terminal. The metal body construction supports heavy-duty service environments, and the light carries CE, UL, and CSA approvals for use in demanding commercial and industrial installations. Licensed electricians and control panel builders install this type of device as a status or alarm indicator on motor control centers, machine panels, and switchgear enclosures.

This indicating light is suited for industrial and commercial control panel applications requiring a robust, panel-mount pilot light. It fits the 10250T Series product family from Eaton and is appropriate for installations requiring NEMA 3, 3R, 4, 4X, 12, or 13 enclosure ratings. Its heavy-duty duty rating and metal body make it a strong choice for factory floors, pump stations, and process control panels where reliable visual indication is needed under harsh conditions.

Key Features

• 120VAC/VDC voltage rating for broad compatibility with standard control circuits
• 30 mm panel mounting size for straightforward drop-in installation
• Saddle clamp terminal connection for secure, tool-assisted wire termination
• Metal body construction rated for heavy-duty service
• NEMA 3, 3R, 4, 4X, 12, and 13 ratings for use in wet, dusty, and corrosive environments
• CE, UL, and CSA certified for commercial and industrial compliance

Compatibility

Designed as an OEM-style indicating light within the Eaton 10250T Series, suitable for standard 30 mm panel cutout installations in industrial control enclosures rated to NEMA 3 through 13 specifications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control panel before removing or installing any indicating light. The saddle clamp terminal requires a standard screwdriver for wire termination. Verify the panel cutout is the correct 30 mm diameter before mounting to avoid damage to the enclosure or the device body.

Technical Specifications

• Voltage Rating: 120VAC/VDC
• Lamp Type: Incandescent
• Panel Mounting Size: 30 mm
• Mounting Type: Panel
• Terminal Connection: Saddle Clamp
• NEMA Rating: 3, 3R, 4, 4X, 12, 13
• Duty Rating: Heavy Duty
• Body Material: Metal
• Length: 2.4 inches
• Width: 2.1 inches
• Height: 3.3 inches
• Certifications: CE, UL, CSA
• Series: 10250T

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250t206n
