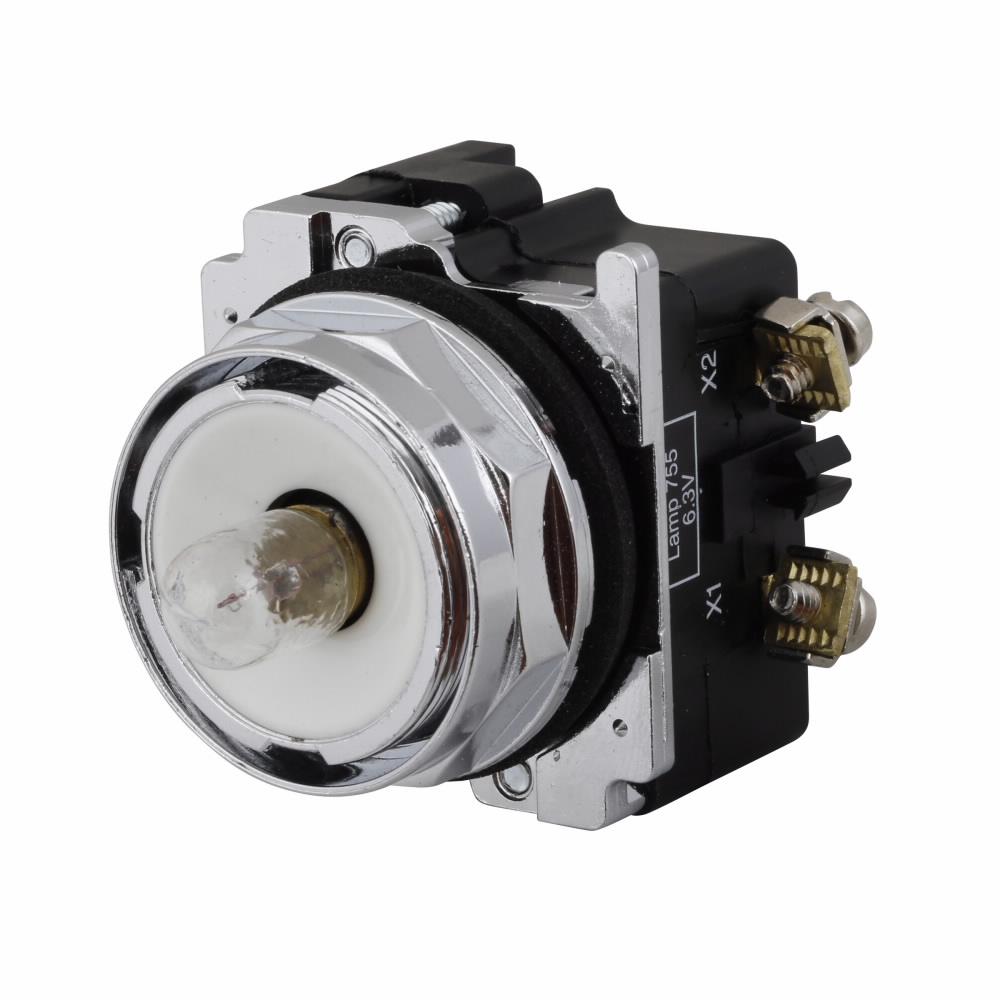

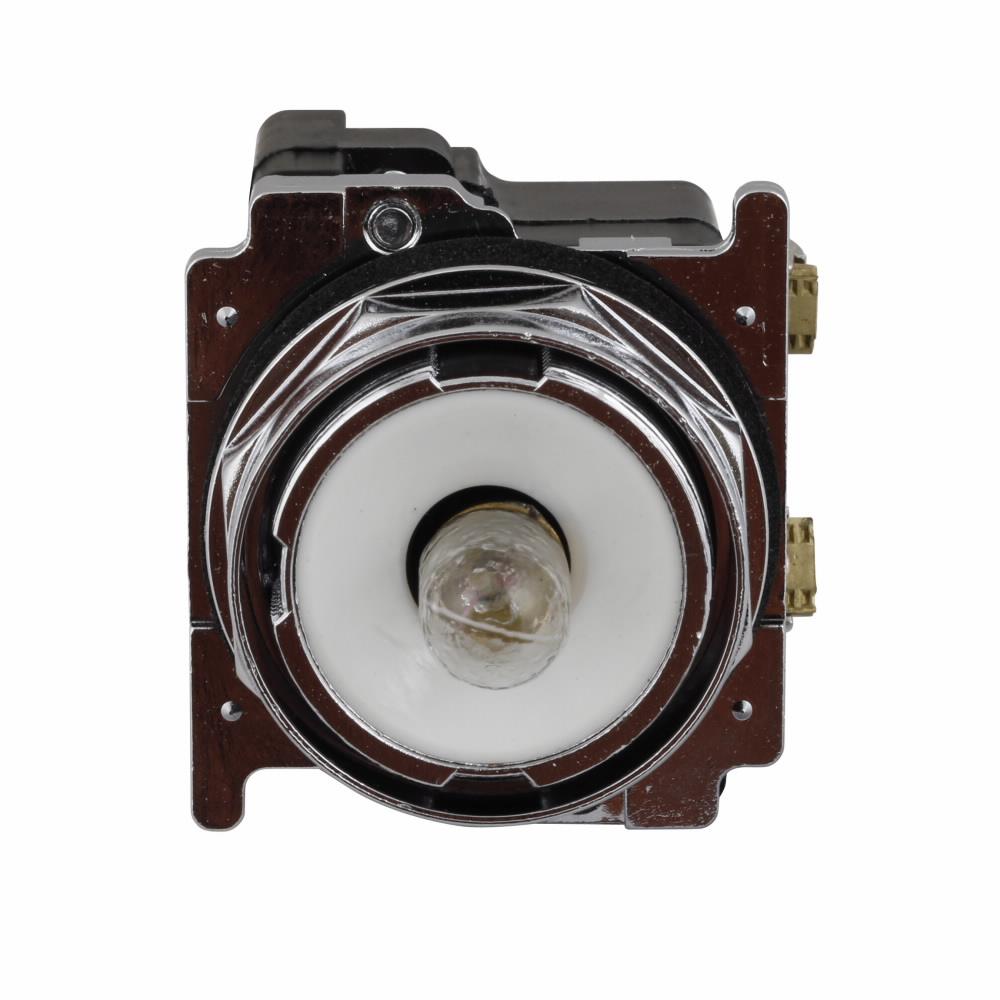

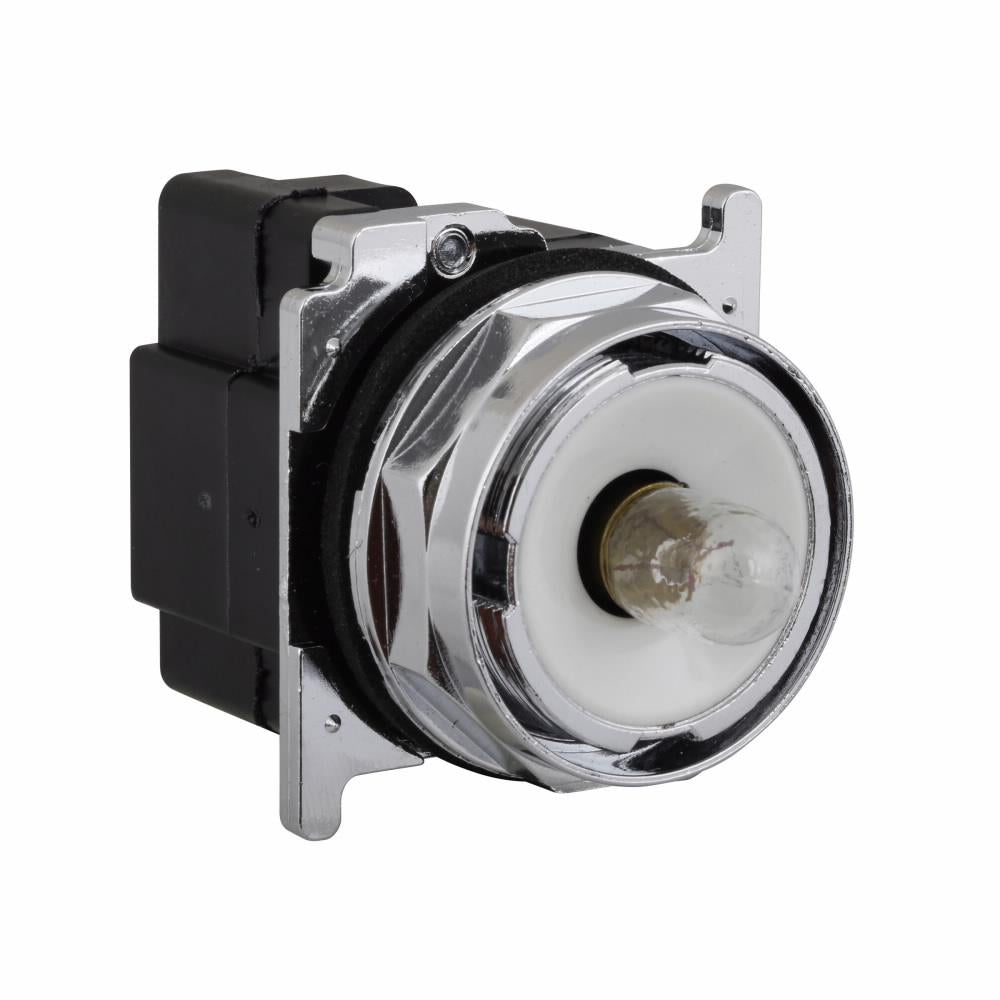

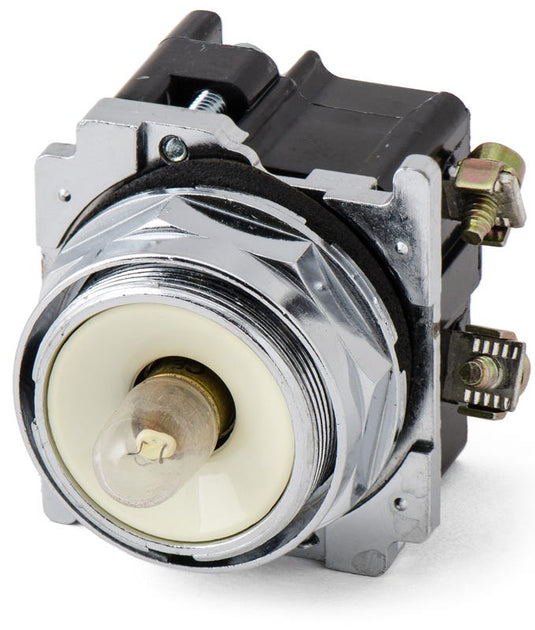

Eaton 10250T184N Indicating Light 480V/Xfr

Product Description

The Eaton 10250T184N is a heavy-duty watertight and oiltight indicating light with a standard actuator. This 30.5 mm incandescent transformer light is NEMA rated 3, 3R, 4, 4X, 12, and 13. The 10250T line of 30.5 mm pushbuttons features a heavy duty die cast zinc construction.

• Heavy-duty watertight and oiltight
• Standard actuator
• Incandescent transformer light
• NEMA 3, 3R, 4, 4X, 12, 13

Product Highlights

The Eaton 10250T184N indicating light is ideal for electrical assemblies, panels, and OEM applications. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T184N

Technical Specifications

• GTiN: 00782113148199
• Type: Heavy Duty,Oiltight,Watertight
• Brand: Eaton
• Style: 30.5 mm
• Actuator: Standard
• Product UPC: 78211314819
• 12-Digit UPC: 782113148199
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Bezel/Housing: Polished Chrome/Die Cast Zinc
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Environmental Conditions: 1 to 150 deg F Operating
• Lamp Type: Incandescent
• Series: 10250T
• Shape: Round
• Size: 30.5 mm
• Terminal Type: Pressure Plate
• Voltage Rating: 480 VAC
• MPN: 10250T184N
• Standard: CE Marked,CSA,UL
• Light Unit Voltage: 480 Vac
• Light Unit Type: Incandescent, transformer
• Mounting Type: Panel
• Approval: CE, UL, CSA
• Terminal Connection: Saddle Clamp
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Duty Rating: Heavy Duty
• Actuator Type: Standard
• Body Material: Metal
