Eaton 10250T172 Pushbutton 65 mm

Product Description

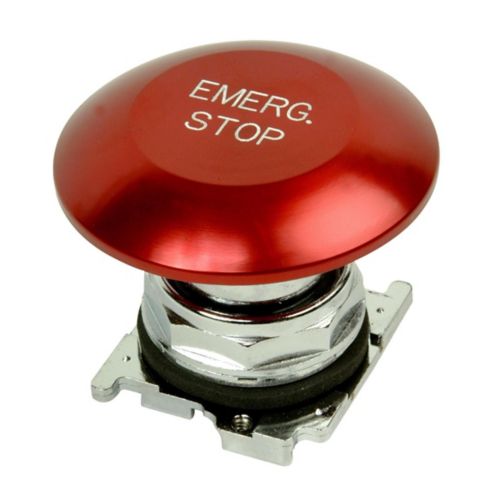

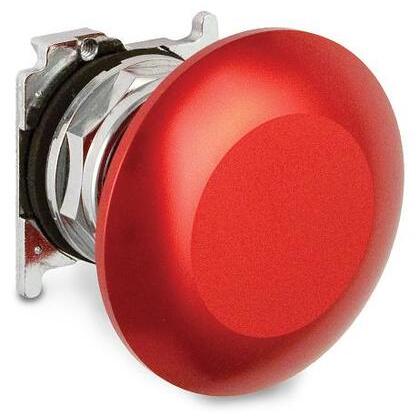

The Eaton 10250T172 pushbutton is a heavy-duty, non-illuminated momentary switch with a jumbo mushroom actuator. This 30.5 mm pushbutton features a red actuator and chrome bezel. It is suitable for use in various industrial applications requiring a robust and reliable control device. The anodized aluminum head is not suitable for use in ultraviolet light applications.

• Heavy-duty construction for demanding environments
• Momentary operation with a jumbo mushroom actuator
• Rated for NEMA 3, 3R, 4, 4X, 12, and 13 environments

Product Highlights

The EATON 10250T172 is a durable and versatile pushbutton for industrial control applications, featuring a momentary jumbo mushroom actuator and robust NEMA ratings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T172
• Country of Origin: United States

Technical Specifications

• SKU: 10250T172
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T172
• UPC: 782113203393
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Catalog Notes: Anodized aluminum head is not suitable for use in ultraviolet light applications
• Product Type: Pushbutton
• Type: Pushbutton
• Actuator color: Red
• Bezel: Chrome
• Bus material: Zinc die cast
• Actuator material: Plastic
• Actuator: Jumbo mushroom
• Operating mode: Spring-return (impulse / momentary)
• Illumination: Non-illuminated
• Series: 10250T
• Rating: NEMA 3 NEMA 3R NEMA 13 NEMA 4X NEMA 12 NEMA 4
• Degree of protection: NEMA 13 NEMA 12 NEMA 4X NEMA 4 NEMA 3 NEMA 3R
• Size: 65 mm
• Manufacturer: Eaton Cutler-Hammer
• Family: 10250T Series
• Main function: Head
• Product series / family name: 10250 series
• Functions: 30mm jumbo mushroom head/operator
• Shape: Round
• Diameter: 65mm (mushroom head) 30.5mm (door punch)
• Material: Die-cast Zinc (body) Chrome-plated (housing)
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
