Eaton 10250T171 Pushbutton 65 mm

Product Description

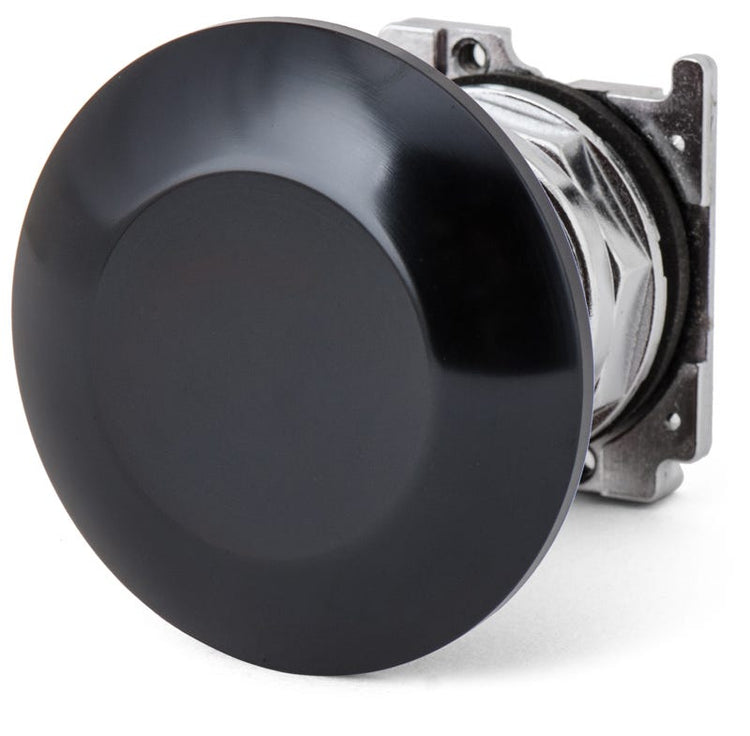

The Eaton 10250T171 is a 30.5 mm, heavy-duty pushbutton. This non-illuminated, momentary pushbutton features a jumbo mushroom head actuator and a chrome bezel. It is suitable for use in various applications with NEMA 3, 3R, 4, 4X, 12, and 13 ratings.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

The Eaton 10250T171 pushbutton is a heavy-duty, momentary switch with a jumbo mushroom actuator, ideal for industrial control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T171
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T171
• UPC: 782113225586
• Product Length/Depth: 2.4 in
• Product Height: 3.2 in
• Product Width: 2.1 in
• Product Weight: 0.35 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Anodized aluminum head is not suitable for use in ultraviolet light applications
• Product Type: Pushbutton
• Type: Pushbutton
• Actuator color: Black
• Bezel: Chrome
• Bus material: Zinc die cast
• Actuator material: Plastic
• Actuator: Jumbo mushroom
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: 10250T
• Rating: NEMA 3 NEMA 3R NEMA 4X NEMA 12 NEMA 13 NEMA 4
• Degree of protection: NEMA 13 NEMA 12 NEMA 3R NEMA 3 NEMA 4 NEMA 4X
• Size: 65 mm
• Brand Name: SERIES 10250T
• Manufacturer: Eaton
• UNSPSC: 39122221
• Commodity Code: 42220
• Additional Info: Approval UL 508, CSA C22.2, CE
• Mounting: 30.5 mm
• IP/NEMA Rating: 4X, 13, 4, 3, 3R, 12
• Duty Rating: Heavy Duty
• Actuator Type: Jumbo Mushroom Head
• Action: Momentary
• Mpn: 10250T171
• Gtin: 782113225586
