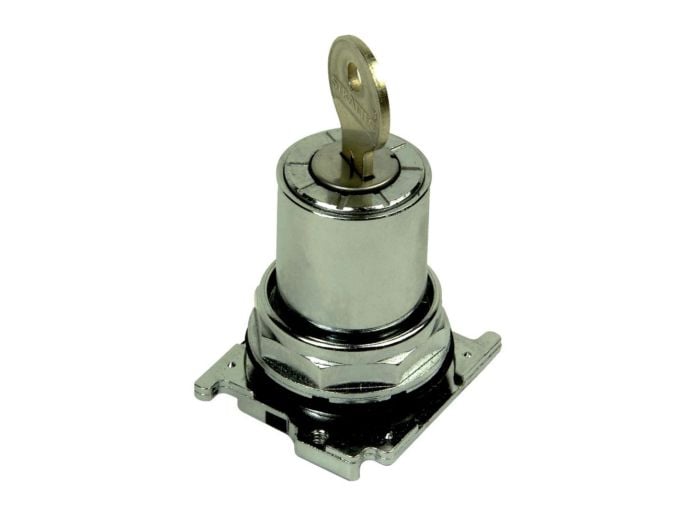

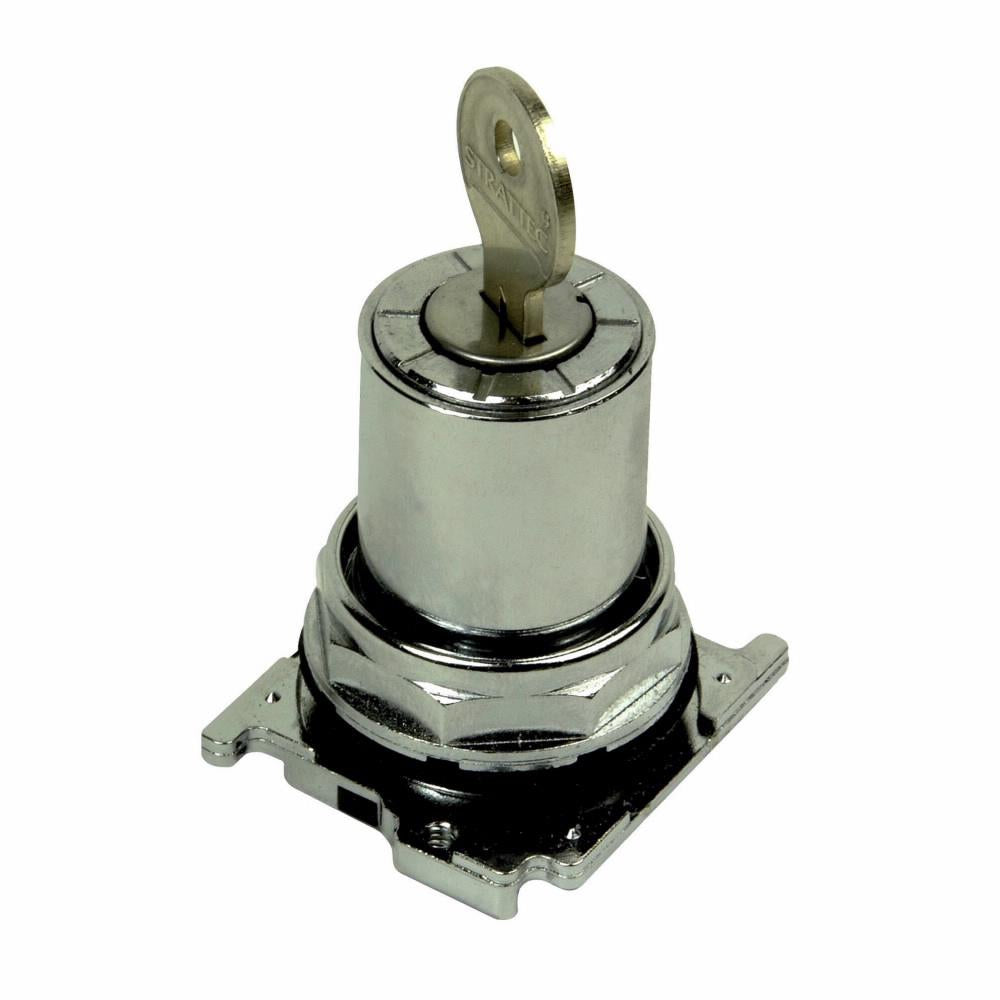

Eaton 10250T16777 Selector Switch Operator 30.5 mm

Product Description

The EATON 10250T16777 selector switch operator features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. It is ideal for applications where reliability and durability are required.

• EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
• Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
• Grounding nibs bit through paint and other coatings to provide secure ground

Product Highlights

This heavy-duty, oiltight/watertight 30.5mm selector switch is ideal for applications where reliability and durability are required.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T16777

Technical Specifications

• Bezel/Housing: Polished Chrome
• Contact Mode: Maintained
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• Material: Die Cast Zinc
• Mounting Type: Surface
• Operator Type: Keyed
• Series: 10250T
• Type: Heavy Duty Non-Illuminated Oiltight/Watertight
• Size: 30.5 mm
• Number of Positions: 4
• Product Length/Depth: 2 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Product Weight: 0.35 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed
• Product Type: Pushbutton
• Cam code: Cam 7
• Key removal position: All positions
• Actuator: Key operated
• Throw type: 40 °
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• UNSPSC: 39122217
• Application: Automation and Logic Control Equipment Applications
• Body Material: Die-Cast Zinc
• Enclosure: NEMA 3/3R/4/4X/12/13, IP65
• Throw: Left-Center-Right 40 Degree
• Operation Type: Maintained
• Manufacturer Part Number: 10250T16777
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T, 30.5 mm, Heavy-Duty, Cam 7, 40° throw, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Four-position, Key, All positions
• Illuminated: No
• Mounting: 30 mm
• Selector Function: Maintained
• NEMA Rating: NEAM 13, NEAM 4, NEMA 12, NEMA 3, NEMA 3R, NEMA 4X
• Approvals: CE, CSA, UL
• Comments: Key Removable in All Positions
• Net Weight: 0.3 lbs
• Gross Weight: 0.35 lbs
• Product Diameter: 1.38 in
• Contact configuration: 2 NO-2 NC
• Mounting method: Vertical
