Product Description

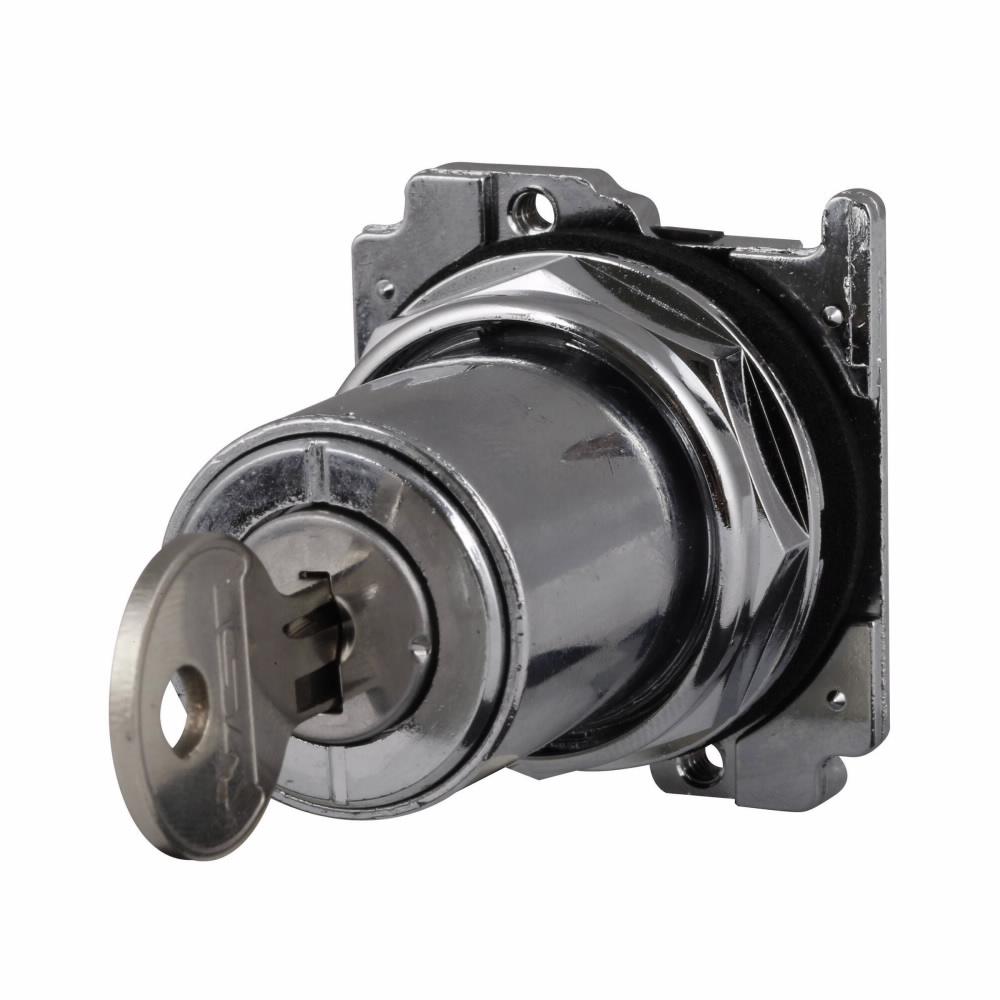

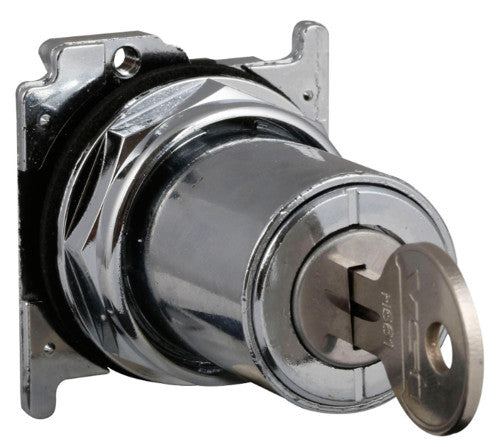

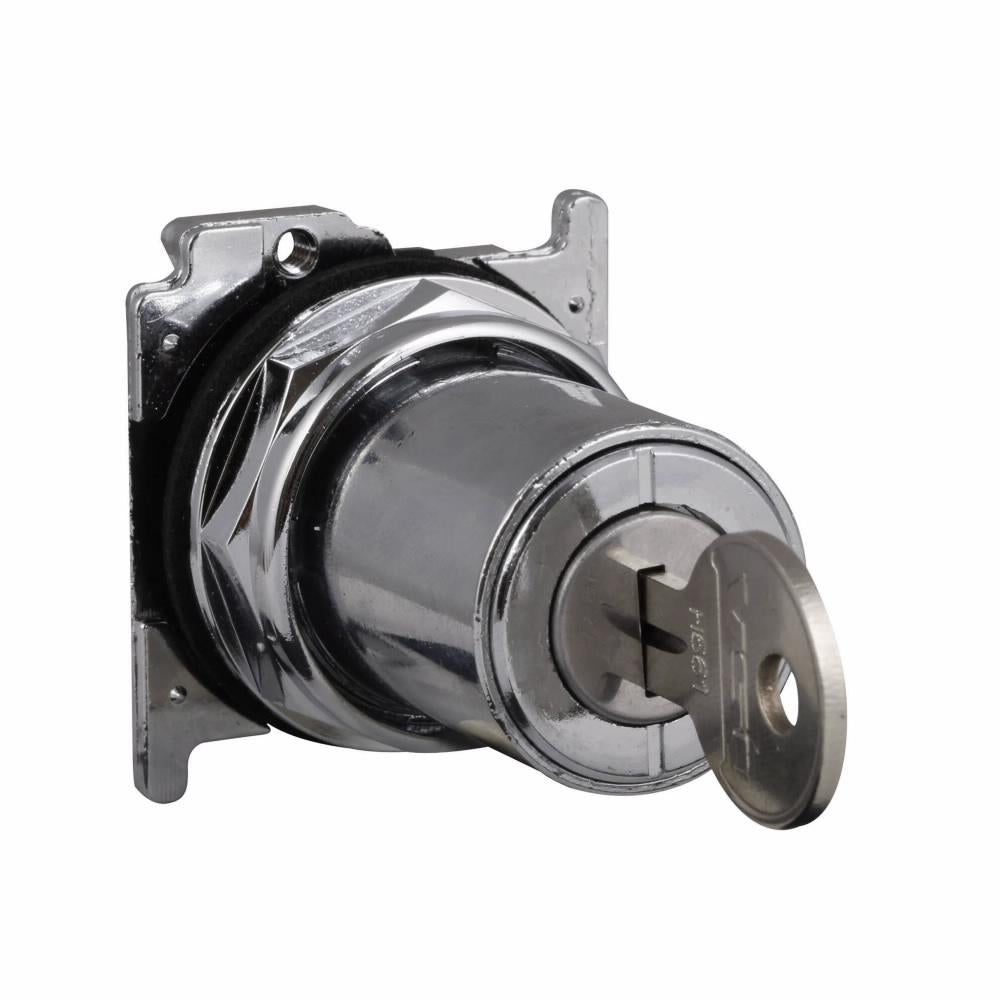

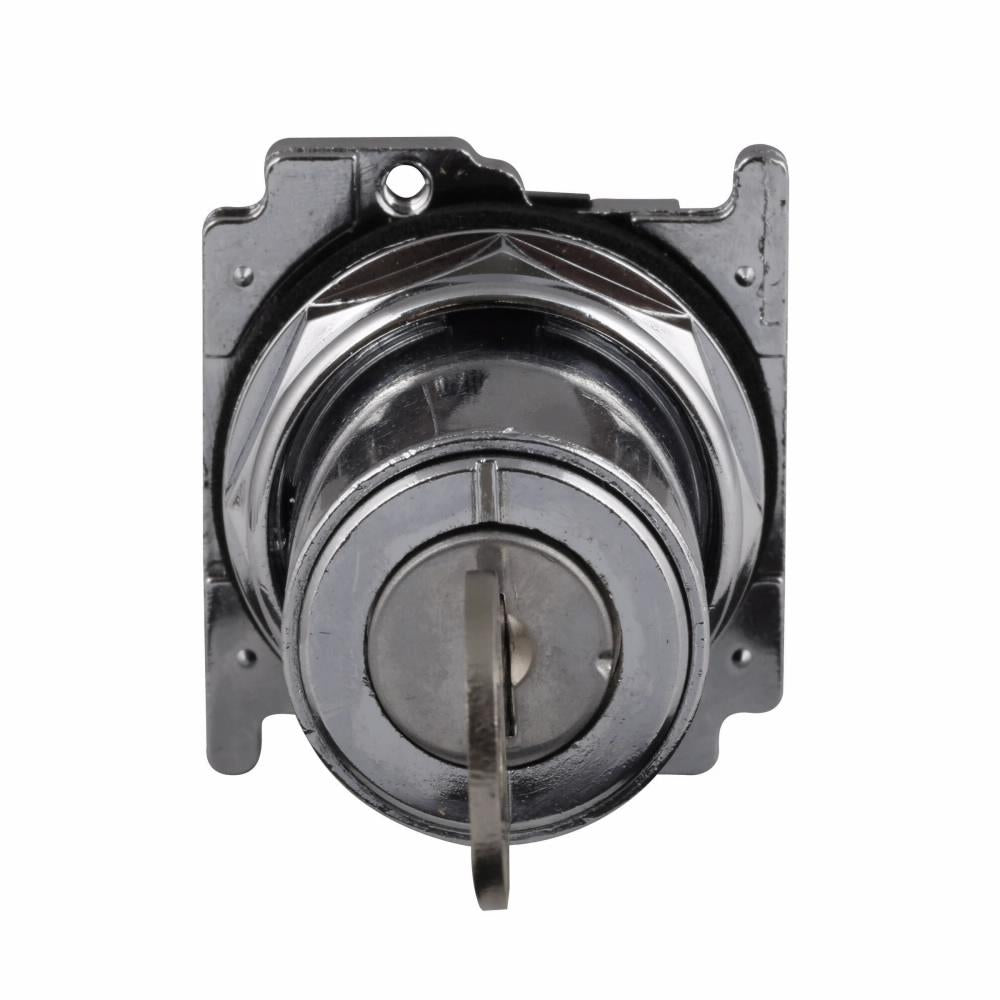

Eaton's 10250T15334 line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. It is a heavy duty watertight/oiltight selector switch operator.
- Heavy duty zinc die cast construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
Product Highlights
The EATON 10250T15334 is designed to excel in challenging environments. Engineered to be water and oil-tight, Eaton's 10250T pushbuttons are the ideal choice for applications demanding unwavering reliability and durability.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T15334
-
Country of Origin: United States
Technical Specifications
-
Bezel/Housing: Die Cast Zinc
-
Cam Code: 3
-
Contact Mode: Maintained
-
Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
-
Finish: Polished Chrome
-
Mounting Type: Surface
-
Series: 10250T
-
Temperature Rating: 1 to 150 deg F
-
Throw: 60 deg Left Center/Right
-
Type: Heavy Duty Watertight/Oiltight
-
Voltage Rating: 600 VAC
-
Size: 30.5 mm
-
Operator Type: Keyed
-
Number of Positions: 3
-
Product Name: Eaton 10250T pushbutton
-
Catalog Number: 10250T15334
-
UPC: 782113227702
-
Product Length/Depth: 2.2 in
-
Product Height: 2 in
-
Product Width: 1.8 in
-
Product Weight: 0.4 lb
-
Warranty: 1 year
-
Compliances: CE Marked
-
Certifications: UL Listed CSA Certified
-
Product Type: Pushbutton
-
Cam code: Cam 3
-
Key removal position: Center only
-
Product Category: Selector switch
-
Actuator: Key
-
Illumination: Non-illuminated
-
Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
-
Throw type: 60 °
-
Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 508 File No. 131568, CSA C22.2 No. 14 File No. LR68551, CE EN 60947-5-1, CE EN 60947-5-5
-
MPN: 10250T15334
-
Brand: CUTLER HAMMER
-
(Switching-Indication) NEMA Rating: NEMA 4X
-
Component: Selector Switch
-
Manufacturer: Eaton
-
(Switching-Indication) Size: 30.5 mm
-

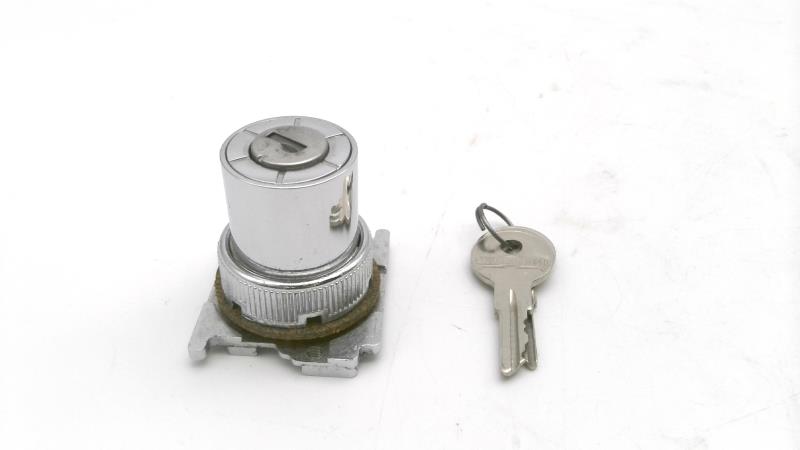

Condition: New – Open box
