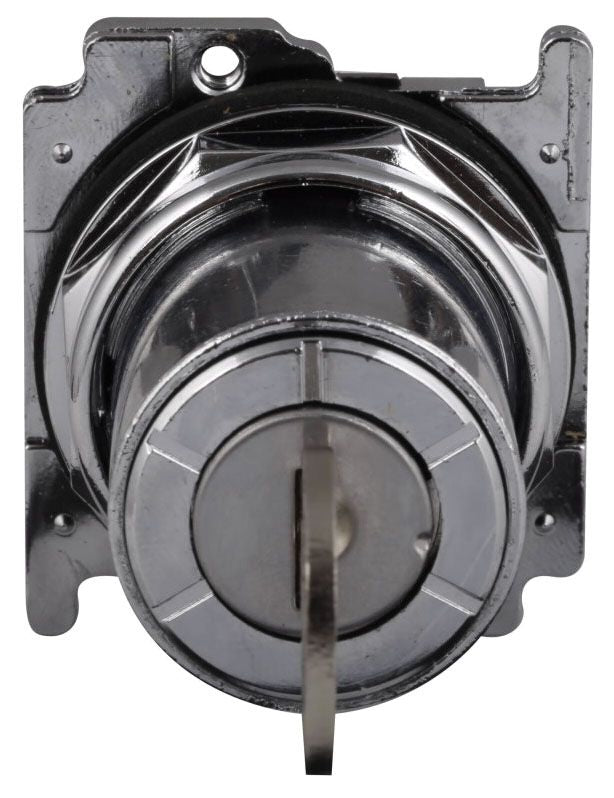

Eaton 10250T15237 Key Remove All Switch Operator

Product Description

The EATON 10250T15237 is a key-operated switch operator designed for use in industrial control and automation panel applications. This operator is configured to allow key removal in all positions, giving panel designers and maintenance technicians a reliable lockout mechanism built directly into the switch assembly. It is part of the 10250T series of heavy-duty operators intended for demanding industrial environments. Licensed electricians and control panel technicians are the primary installers of this component.

This key-remove-all operator is suited for use in industrial control panels, machine tool enclosures, and automation systems where position-lockout security is required. The all-position key removal feature prevents unauthorized or accidental switch actuation between service cycles, making it a common choice in safety-critical electrical control assemblies.

Key Features

• Key removable in all switch positions for added access control and lockout capability
• Part of the EATON 10250T heavy-duty operator series for industrial environments
• Compact form factor measuring 2.5 inches x 1.8 inches x 1.8 inches
• Lightweight at 0.35 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or panel-build component for industrial control switches in the EATON 10250T operator series. Consult the manufacturer documentation to confirm fitment with specific switch bodies and contact blocks.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before installing or replacing switch operators. Verify key cylinder compatibility with the switch body before final assembly. Do not force the key cylinder into a mismatched operator housing.

Technical Specifications

• Dimensions (L x W x H): 2.5 inches x 1.8 inches x 1.8 inches
• Weight: 0.35 pounds
• UPC: 78211322756

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T15237
