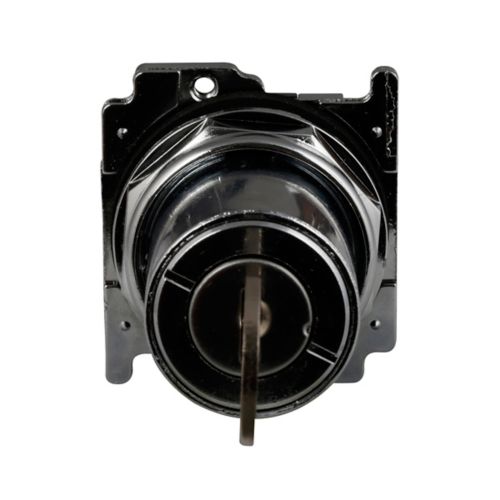

Eaton 10250T15224 Pushbutton 60° Throw

Product Description

The Eaton 10250T15224 is a 30.5 mm heavy-duty pushbutton with a Cam 2 and 60° throw. It features NEMA 3, 3R, 4, 4X, 12, and 13 ratings and is non-illuminated with a three-position key that can only be removed from the center. It is key operated and part of the 10250T series.

• Heavy-duty construction
• Key operated actuator
• NEMA 3, 3R, 4, 4X, 12, 13 rated

Product Highlights

This Eaton pushbutton is ideal for heavy-duty applications requiring a robust and reliable operator.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T15224
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T15224
• UPC: 782113227511
• Product Length/Depth: 2.2 in
• Product Height: 1.9 in
• Product Width: 1.8 in
• Product Weight: 0.4 lb
• Compliances: CE Marked
• Certifications: UL Listed, CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Cam code: Cam 2
• Key removal position: Center only
• Actuator: Key operated
• Throw type: 60 00b0
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Number of positions: 3
• Series: 10250T
• USHTS: 8538908180
• ECCN: EAR99
• Alternate Mfr Part Number: 10250T15224
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 10250T15224
• Size: 30.5mm
• NEMA: 4,4X,13
• Operating Cap: Key, Remove-Center
• Bezel/Housing: Metal, Chrome
• Positions: 3
• Throw: 60-deg, Left-Right
• Contact Mode: Maintained
• Cam Code: 2
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: 10250 series
• Functions: 30mm head/operator
• Shape: Round
• Diameter: 30.5mm (door punch)
• Mounting mode: Vertical
• Operating mode: 3-positions
• All positions Stay-put / Maintained: Free key withdrawal in center position only
• Degree of protection: IP65
• NEMA 3: NEMA 3R
• NEMA 4: NEMA 4X
• NEMA 12: NEMA 13
• Material: Die-cast Zinc (body)
• Chrome-plated (housing): None
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE
• EN60947-5-1: EN60947-5-5
• UL508: CSA
• Angular positions: -60 00b0
• 0 00b0: None
• +60 00b0: None
• Country of Origin: Dominican Republic - Subject to change
