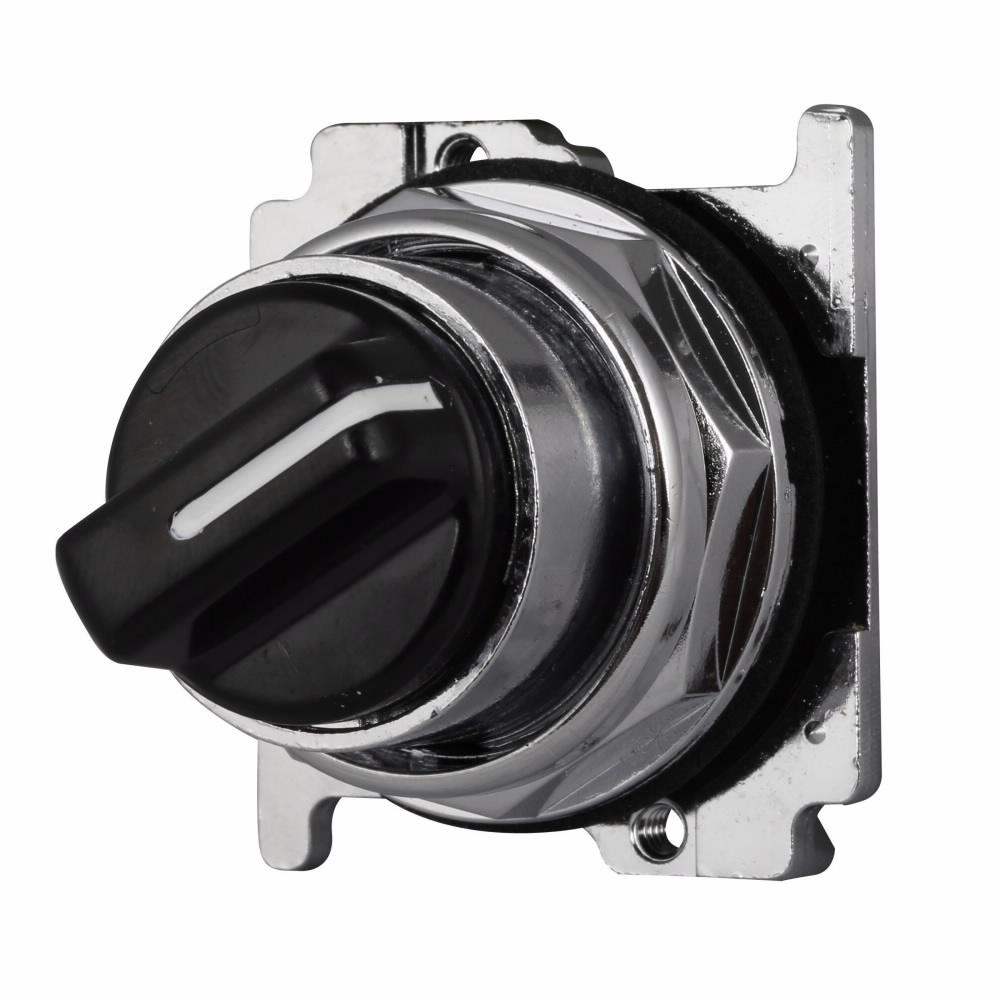

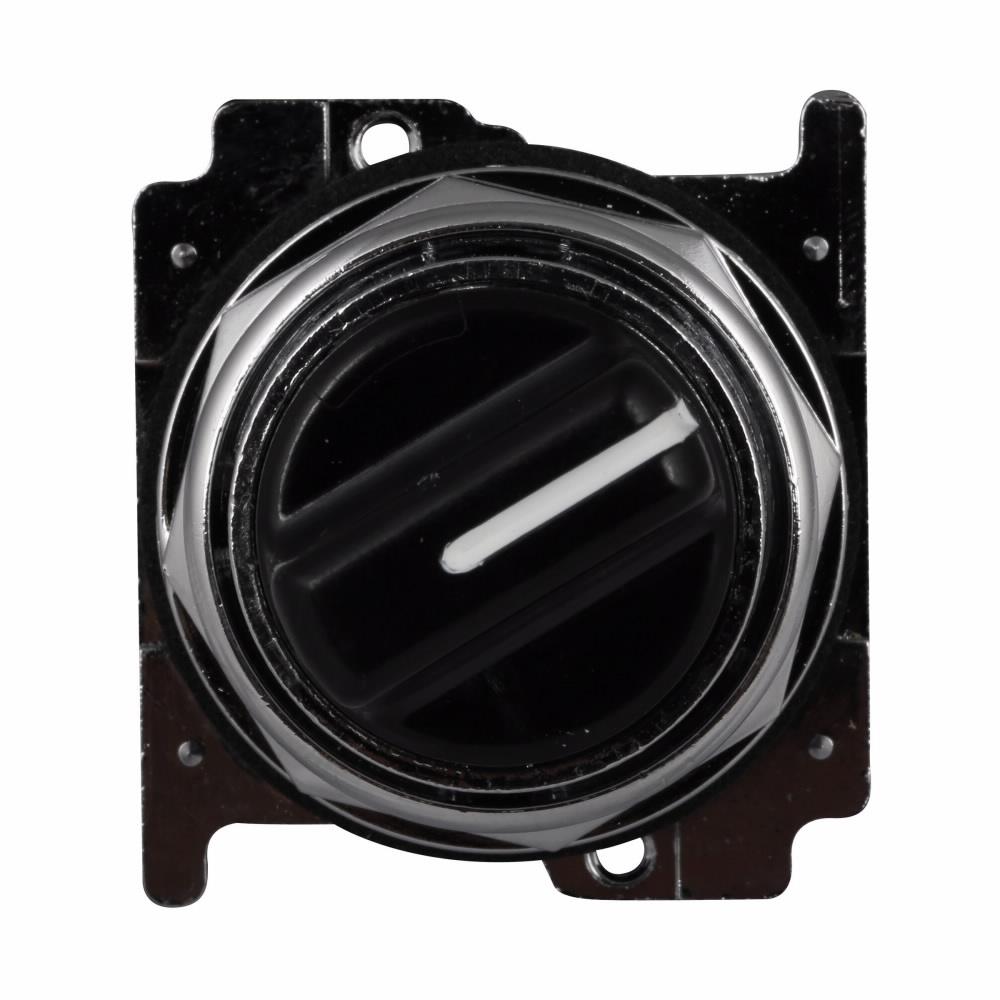

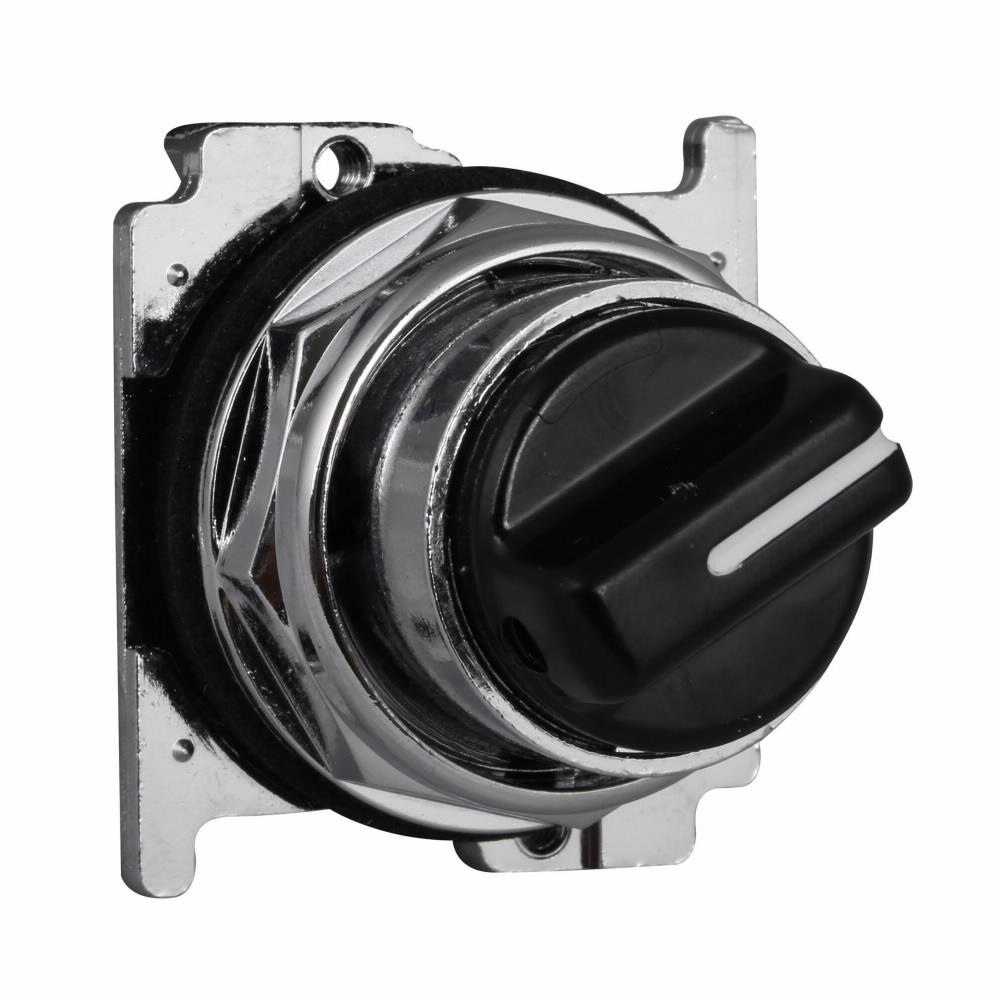

Eaton 10250T1411 selector switch operator

Product Description

The Eaton 10250T1411 is a 30.5 mm pushbutton with heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

• Enclosed silver contacts with reliability nibs
• Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
• Grounding nibs bit through paint and other coatings to provide secure ground

Product Highlights

This heavy-duty oiltight/watertight non-illuminated selector switch operator features enclosed silver contacts, diaphragm seals, and grounding nibs for secure operation in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1411

Technical Specifications

• Bezel/Housing: Die Cast Zinc
• Cam Code: 1
• Contact Mode: Maintained
• Enclosure Type: NEMA 4/4X/13
• Finish: Polished Chrome
• Mounting Type: Surface
• Series: 10250T
• Throw: 60 deg Left/Right
• Type: Heavy Duty Oiltight/Watertight Non-Illuminated
• Voltage Rating: 600 VAC
• Size: 30.5 mm
• Operator Type: Knob
• Number of Positions: 2
