Eaton 10250T1332 Pushbutton

Product Description

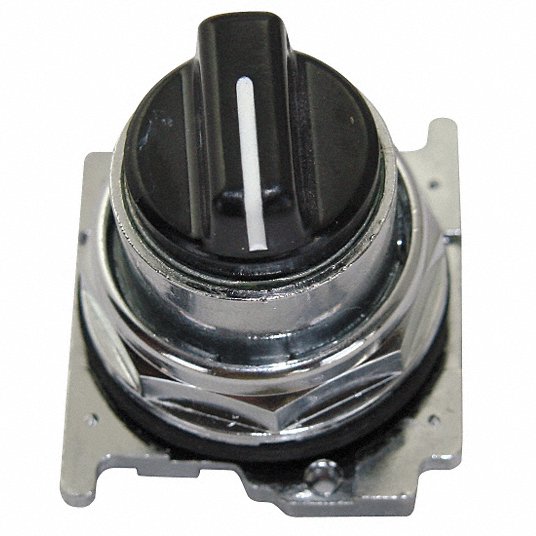

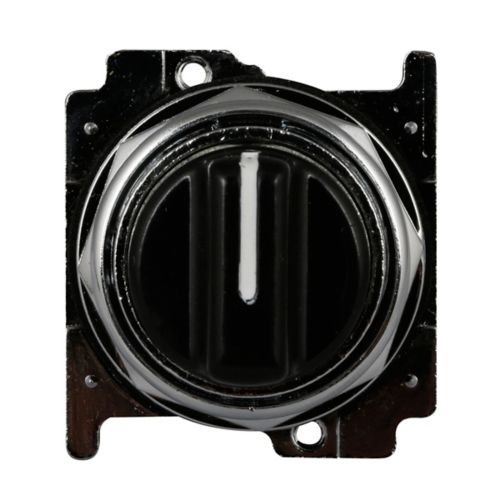

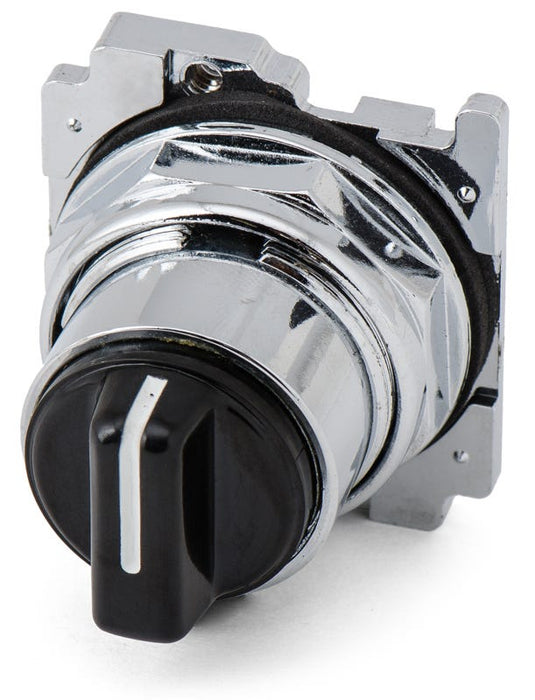

The Eaton 10250T1332 pushbutton is a selector switch designed for heavy-duty applications. This 30.5 mm switch features a knob actuator and a three-position configuration with a 60° throw. It is NEMA rated for protection against various environmental conditions. The 10250T series offers reliable performance in demanding environments.

• Heavy-duty construction for durability
• NEMA 3, 3R, 4, 4X, 12, and 13 rated for environmental protection
• Knob actuator with three positions and 60° throw

Product Highlights

Heavy-duty, oiltight selector switch with a knob actuator, suitable for demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T1332
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T1332
• UPC: 782113226385
• Product Length/Depth: 1.8 in
• Product Height: 2.1 in
• Product Width: 1.8 in
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Black
• Cam code: Cam 2
• Product Category: Selector switch
• Actuator: Knob
• Illumination: Non-illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Series: 10250T
• Number of positions: 3
• Throw type: 60 00b0
• Brand: Eaton/Cutler-Hammer
• Mounting Type: Surface
• Approval: CE, UL, CSA
• Terminal Connection: Standard Screw
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 1.8
• Width (in): 1.8
• Height (in): 2.1
• Duty Rating: Heavy Duty
• Actuator Type: Knob
• Action: Momentary/Maintained/Maintained
• Mpn: 10250T1332
• Gtin: 782113226385
• Configurable Switch Components: Configurable Switch Bodies
• Manufacturer: Eaton Electrical
• Packaging: Box
• Compatible Series: Eaton, 10250T
• Part Status: Active
• Panel Cutout Dimensions: 30.5mm (Round)
• Requires: Contact Block(s)
• Bezel Material: Anodized Aluminum
• Hazardous Location Specification: Not Rated
• IP Rating: IP65
• NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
• Operator Head Material: Metal
• Operator Illumination: Non-Illuminated
• Overall Depth: 1.8 in
• Overall Height: 2.1 in
• Overall Width: 1.8 in
• Panel Mounting Hole Diameter: 30 mm
• Standards: CSA; UL Listed
• Switch Function @ 1st Position: On
• Switch Function @ 2nd Position: On
• Switch Function @ 3rd Position: On
• Switch Function @ 4th Position: No Fourth Position
• Switch Head Color: Black
• Switch Head Type: Short Lever
• UNSPSC: 39121513
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
• Finish: Polished Chrome
• Operator Type: Knob
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Voltage Rating: 600
• Temperature Rating: 1 to 150
• Size: 30.5
• Throw: 60 deg Left Center/Right
