Product Description

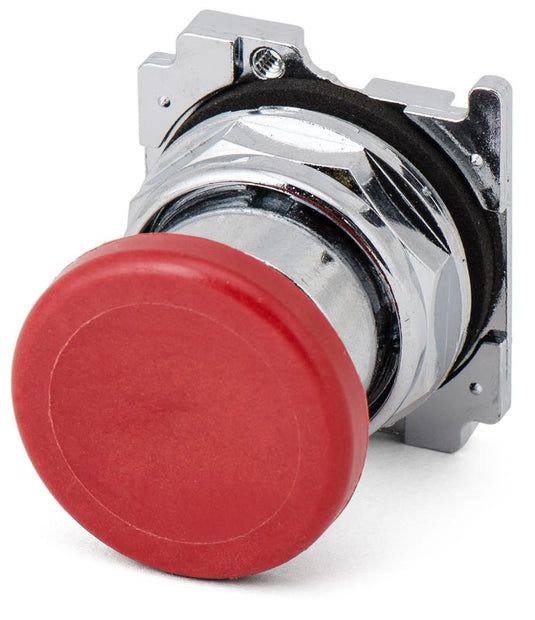

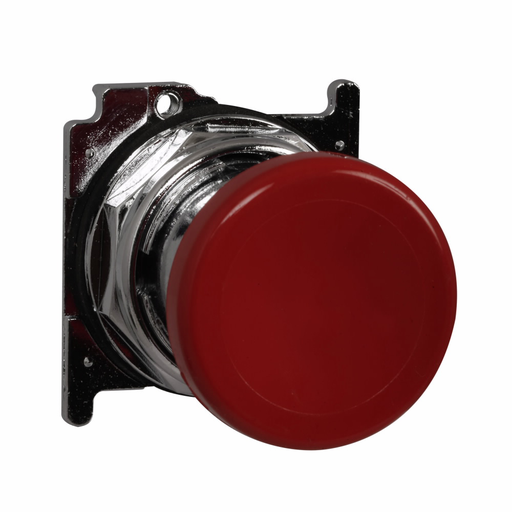

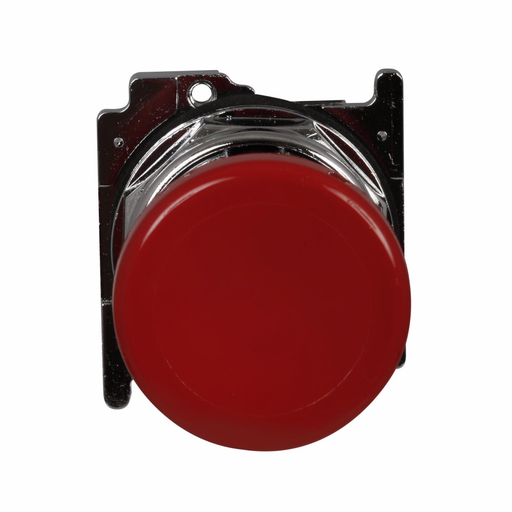

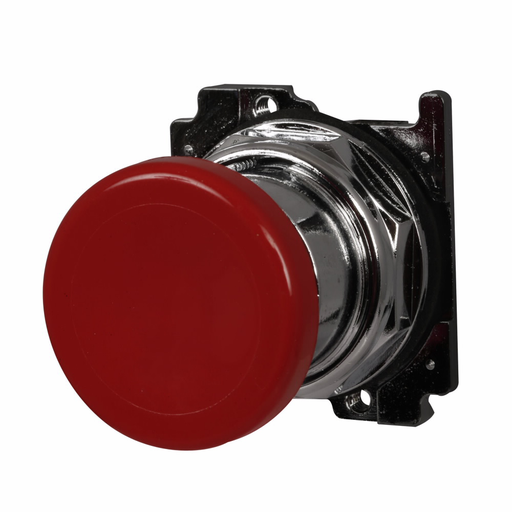

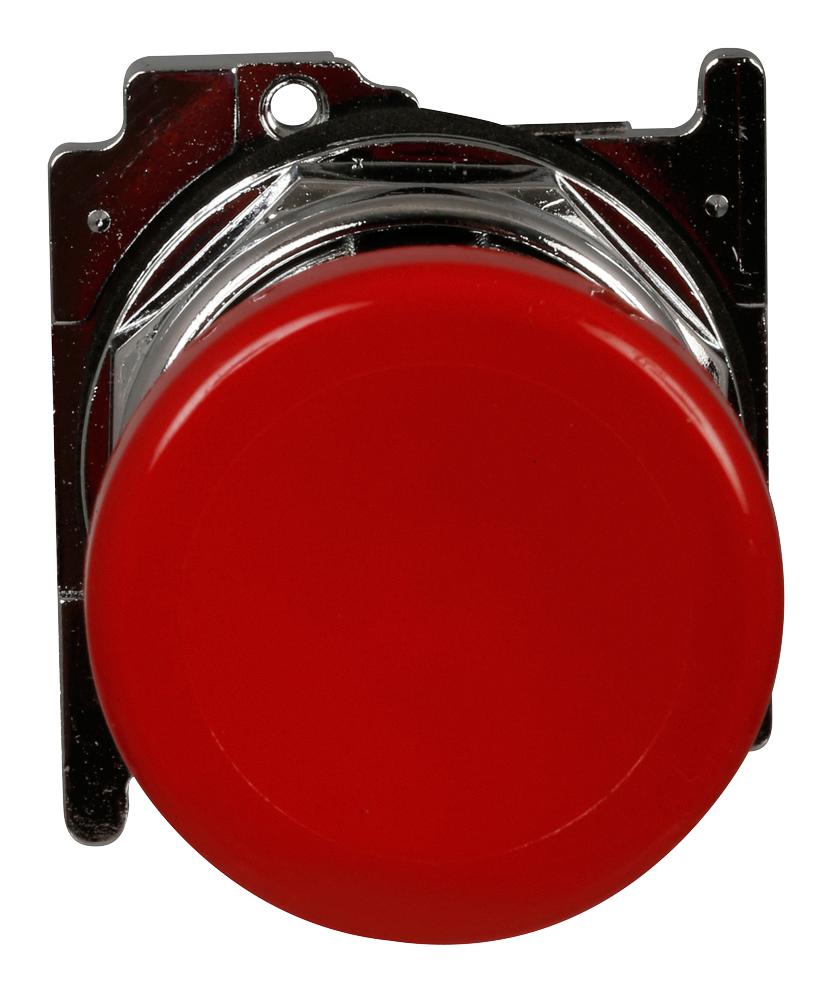

The Eaton 10250T122 is a 30.5 mm heavy-duty pushbutton with a momentary action and a 40 mm mushroom head actuator. It is suitable for stationary machinery and equipment outside factory. The chrome bezel and plastic actuator ensures durability in various environments. It meets NEMA 3, 3R, 4, 4X, 12, and 13 standards.
- Momentary action
- Mushroom head actuator
- Heavy-duty zinc die cast construction
Product Highlights
The Eaton 10250T122 is a reliable and durable pushbutton for heavy-duty applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T122
Technical Specifications
-
Action: Momentary
-
Actuator: Mushroom
-
Applications: Stationary Machinery and Equipment Outside Factory
-
Bezel Color: Chrome
-
Bus Material: Zinc Die Cast
-
Contact Configuration: 1 NO
-
Size: 40 mm
-
Type: Heavy-Duty
-
Brand: Eaton/Cutler-Hammer
-
Product UPC: 78211320336
-
Height: 2.2 Inch
-
Length: 2 Inch
-
Product Name: Eaton 10250T pushbutton
-
Catalog Number: 10250T122
-
UPC: 782113203362
-
Product Length/Depth: 2 in
-
Product Width: 1.9 in
-
Compliances: CE Marked
-
Certifications: UL Listed CSA Certified
-
Product Type: Pushbutton
-
Actuator color: Red
-
Actuator material: Plastic
-
Operating mode: Momentary
-
Illumination: Non-illuminated
-
Series: 10250T
-
Rating: NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
-
Degree of protection: NEMA 13 NEMA 4 NEMA 12 NEMA 3 NEMA 4X NEMA 3R
-
Approval: UL, CSA, CE
-
Nema Rating: 3, 3R, 4, 4X, 12, 13
-
Duty Rating: Heavy Duty
-
Actuator Type: Mushroom head
-
Mpn: 10250T122
-
Gtin: 782113203362
-
For Use With: 10250T Series Pushbutton Switches
-
Product Range: 10250T Series
-
IP / NEMA Rating: -
-
SVHC: No SVHC (17-Dec-2015)
-
Manufacturer Part Number: 10250T122
-
Manufacturer: Eaton - Cutler Hammer
-
UNSPSC Code: 39120000
-
Unit of Measure: EA
-
Operation Mode: Momentary
-
Alternate Mfr Part Number: 10250T122
-
Dimensions: 2.20 in H X 0.25 in W X 2.00 in L
-
Approvals: CSA Certified, UL listed
-
Operation: Momentary
-
Bezel: Chrome
