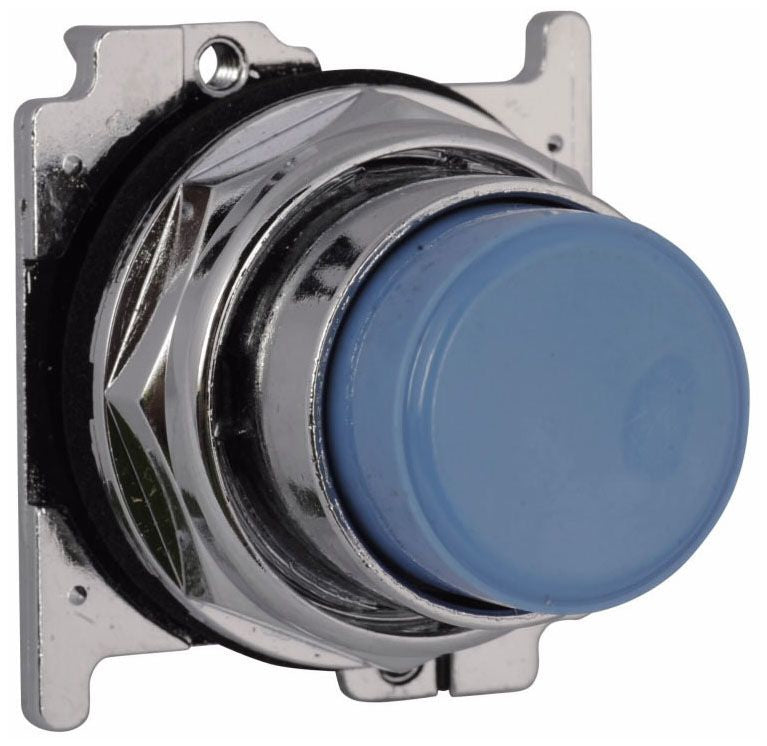

Eaton 10250T118 Extended Type Pushbutton 30.5mm

Product Description

The EATON 10250T118 is an extended-type pushbutton operator designed for 30.5mm cutout panel installations. This operator serves as the actuator component in industrial control stations, providing the mechanical interface between the operator and the control circuit. It is built for use in control panels, junction boxes, and operator interface enclosures across industrial and commercial electrical systems. Licensed electricians and industrial maintenance technicians typically install and service this component as part of larger pushbutton station assemblies.

The 10250T118 is suited for industrial control applications requiring a 30.5mm panel-mount pushbutton station. It is commonly installed in manufacturing, process control, and machine safety circuits where reliable operator input devices are required. This operator fits into standard 30.5mm pushbutton station bodies and enclosures used in industrial environments.

Key Features

• Extended-type actuator design for positive operator engagement
• 30.5mm panel cutout mounting for compatibility with standard industrial control enclosures
• Compact and lightweight construction at 0.22 pounds
• Designed for integration into multi-component pushbutton station assemblies

Compatibility

Designed as an OEM-style replacement or addition for 30.5mm industrial pushbutton control stations requiring an extended-type operator actuator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any pushbutton operator component. Ensure the panel cutout matches the 30.5mm specification before mounting. Do not force the operator into an undersized or incompatible cutout.

Technical Specifications

• Operator Type: Extended Type
• Panel Cutout Size: 30.5mm
• Weight: 0.22 pounds
• UPC: 78211328418

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T118
