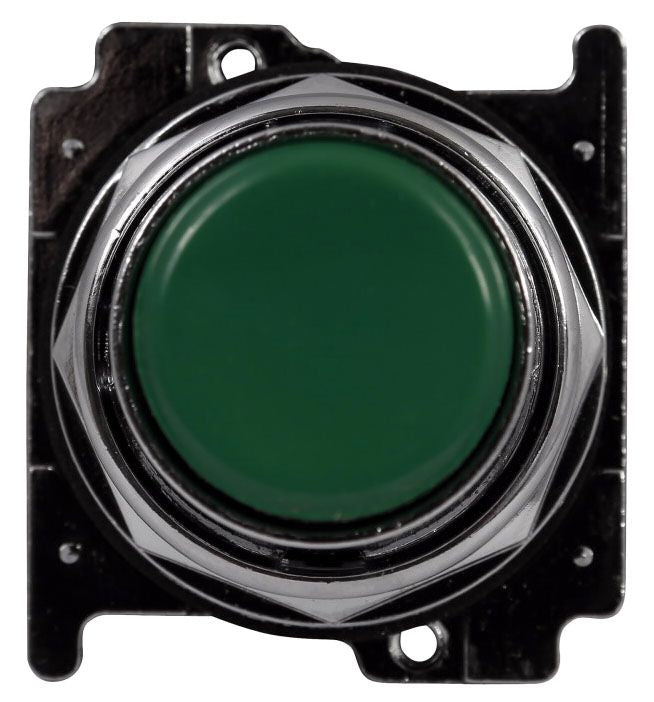

Eaton 10250T113 Extended Pushbutton Operator 30.5mm

Product Description

The EATON 10250T113 is an extended-type pushbutton operator designed for 30.5mm panel cutout installations. This operator serves as the actuator component in a pushbutton control station assembly, providing the physical interface between a technician or operator and the control circuit below. It mounts into a standard 30.5mm operator panel or enclosure and pairs with a contact block to complete the electrical switching function. The extended button profile makes it easier to actuate in applications where gloved operation is common. Electricians and industrial control panel builders typically install and wire this type of operator.

This pushbutton operator is suited for industrial control panels, machine tool enclosures, and operator stations in commercial and light industrial environments. It is used wherever a 30.5mm round pushbutton station requires an extended-head actuator. Typical applications include motor start/stop stations, conveyor controls, and general-purpose control circuits requiring momentary or maintained operator input at the panel face.

Key Features

• Extended-type button head for improved actuation in gloved-hand environments
• 30.5mm mounting diameter fits standard 30.5mm panel cutouts and operator enclosures
• Designed to pair with compatible contact blocks for complete pushbutton station assembly
• Compact form factor suited for dense panel layouts

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30.5mm pushbutton control stations and enclosures accepting standard extended-type actuators.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize and lock out the panel per NFPA 70E lockout/tagout procedures before removing or installing any operator or contact block. The operator inserts into the 30.5mm panel cutout from the front and secures with a retaining nut or mounting ring; do not overtighten the retaining hardware as this can crack the operator body. Verify contact block alignment and engagement before returning the circuit to service.

Technical Specifications

• Operator Type: Extended Pushbutton
• Mounting Diameter: 30.5mm
• Dimensions (L x W x H): 1.9 inches x 1.9 inches x 2.2 inches
• Weight: 0.2 pounds
• UPC: 78211322549

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T113
