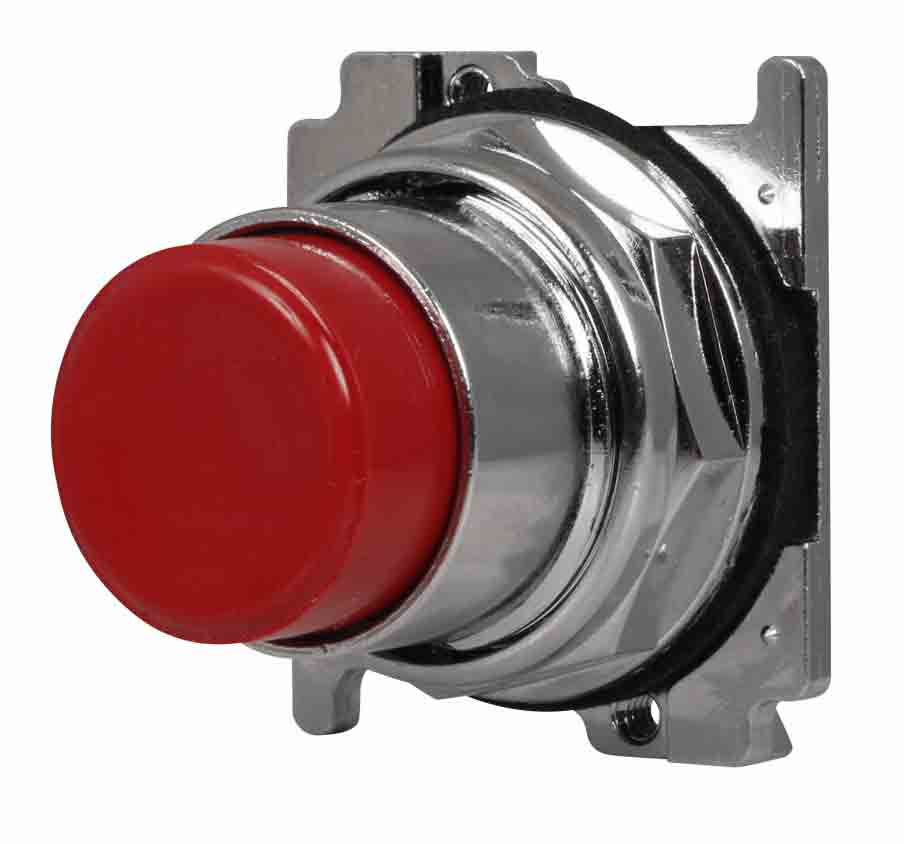

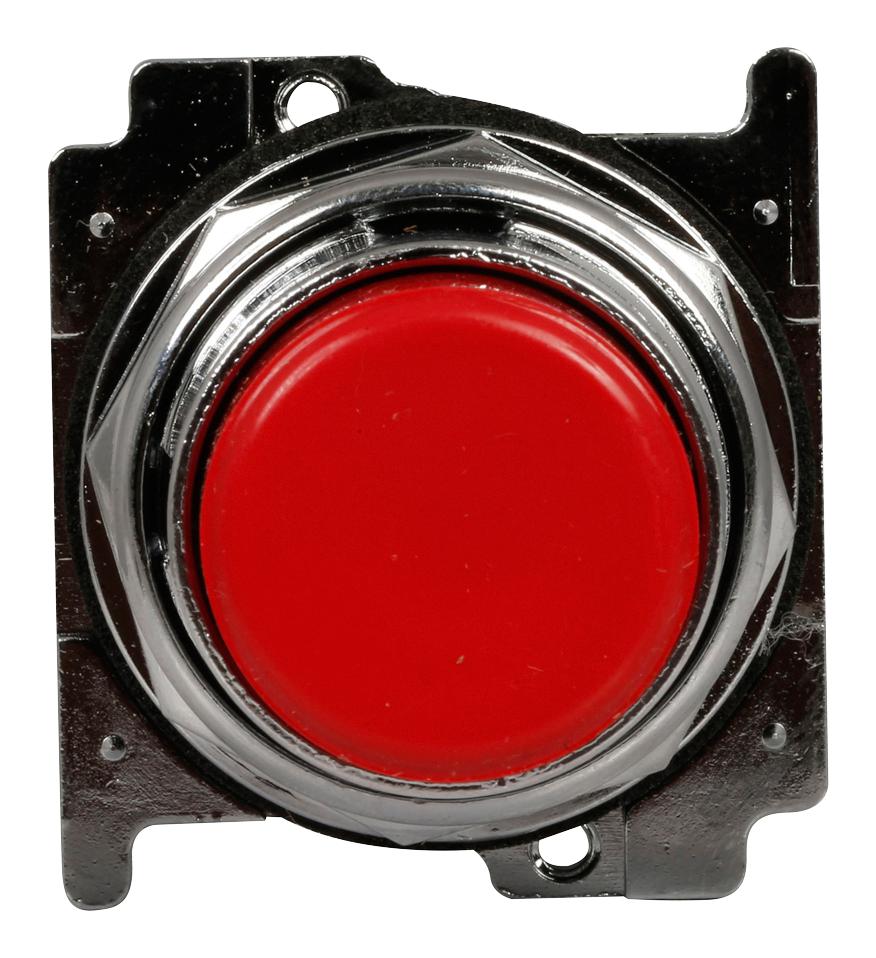

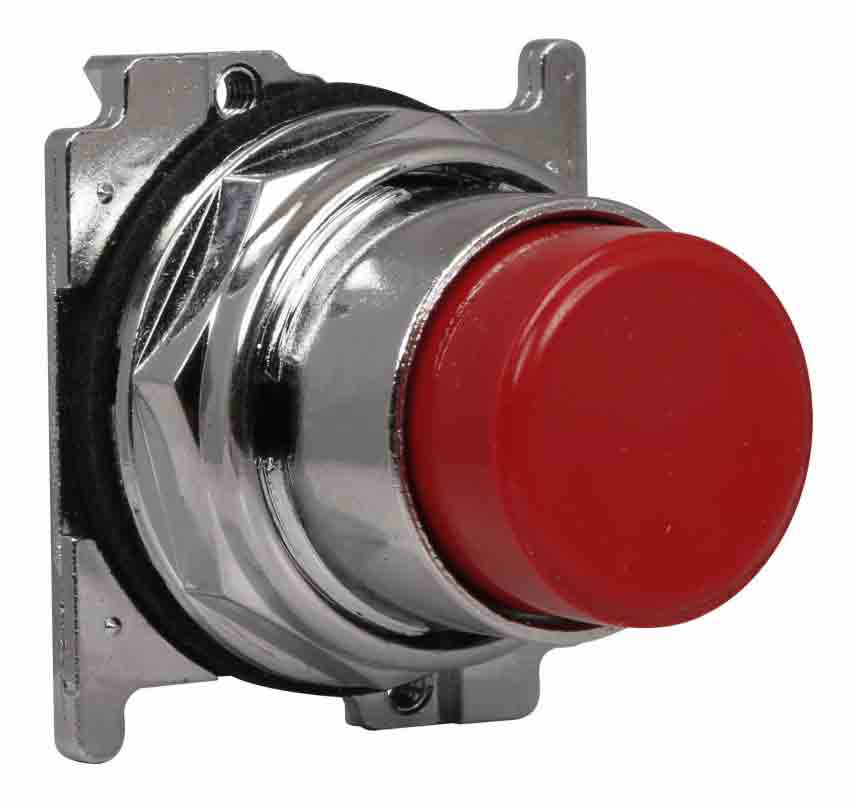

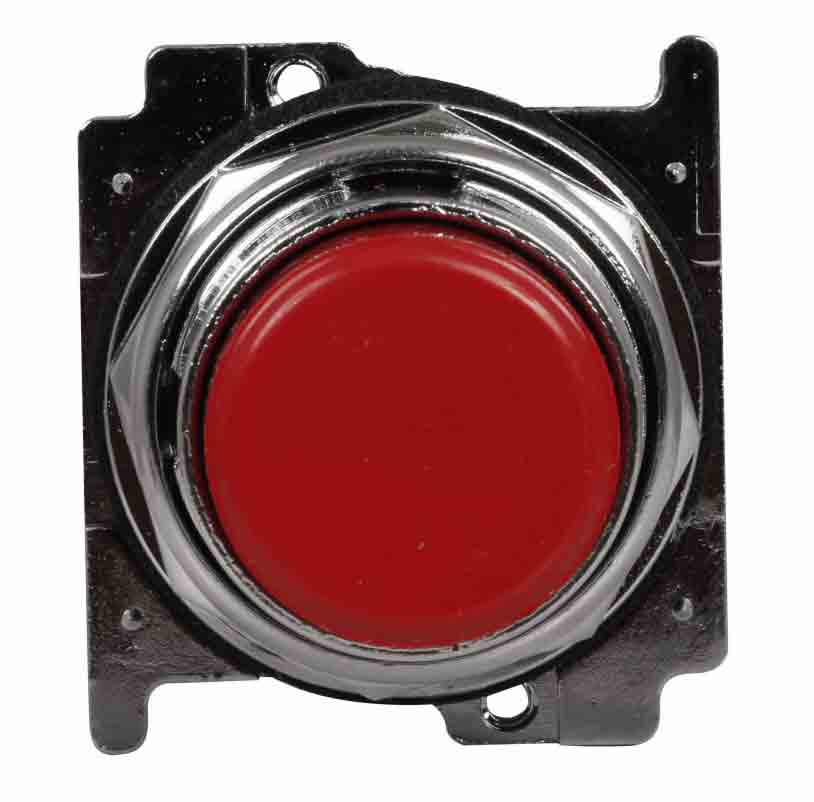

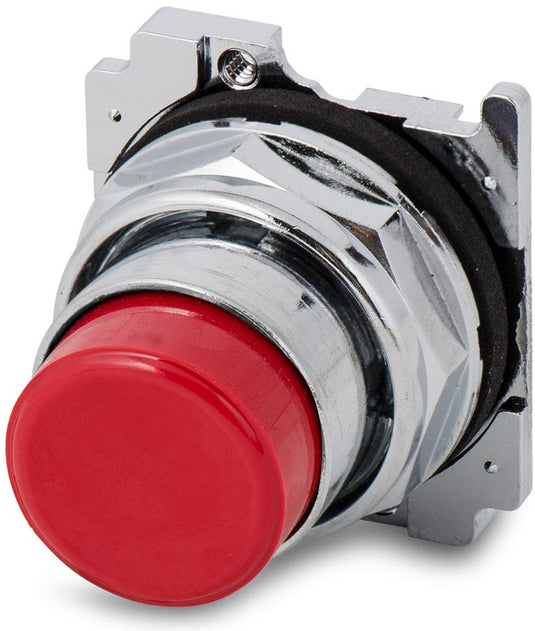

Eaton 10250T112 Pushbutton 30.5 mm

Product Description

The Eaton 10250T112 is a 30.5 mm heavy-duty pushbutton. This non-illuminated push button features a momentary action and an extended plastic actuator with a chrome bezel. It is ideal for industrial applications and harsh environments, with NEMA 3, 3R, 4, 4X, 12, and 13 ratings.

• Heavy-duty pushbutton operator
• Momentary operation
• NEMA 3, 3R, 4, 4X, 12, 13 rated

Product Highlights

The Eaton 10250T112 is a reliable and durable solution for push button applications requiring robust performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T112

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T112
• UPC: 782113203348
• Product Length/Depth: 1.9 in
• Product Height: 2.1 in
• Product Width: 1.9 in
• Product Weight: 0.35 lb
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Red
• Bezel: Chrome
• Actuator material: Plastic
• Actuator: Extended
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: 10250T
• Rating: NEMA 3
• NEMA 3R: None
• NEMA 13: None
• NEMA 4X: None
• NEMA 12: None
• NEMA 4: None
• Brand: Eaton
• Approval: UL, CE, CSA
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 1.9
• Width (in): 1.9
• Height (in): 2.1
• Duty Rating: Heavy Duty
• Actuator Type: Extended
• Action: Momentary
• Mpn: 10250T112
• Upc: 782113203348
• Gtin: 782113203348
• Operation Mode: manual
• Contact Type: Normally Open
• Switch Type: Push Button
• Terminal: Screw
• Material: Metal
• Circuit Type: 1-way
• Mounting Type: Snap In Mount
• Controller Type: Push Button
• Control Method: Touch
• Contact configuration: 1 NC
• Part Number: 10250T112
• Manufacturer: Eaton Cutler-Hammer
• Family: 10250T Series
• Category: Motor Control Parts And Accessories
• Dimensions (HxWxD): 2.1"x1.9"x1.9"
• For Use With: 10250T Series Pushbutton Switches
• Product Range: 10250T Series
• SVHC: No SVHC (17-Dec-2015)
