Eaton 10250T105 Pushbutton 30.5 mm

Product Description

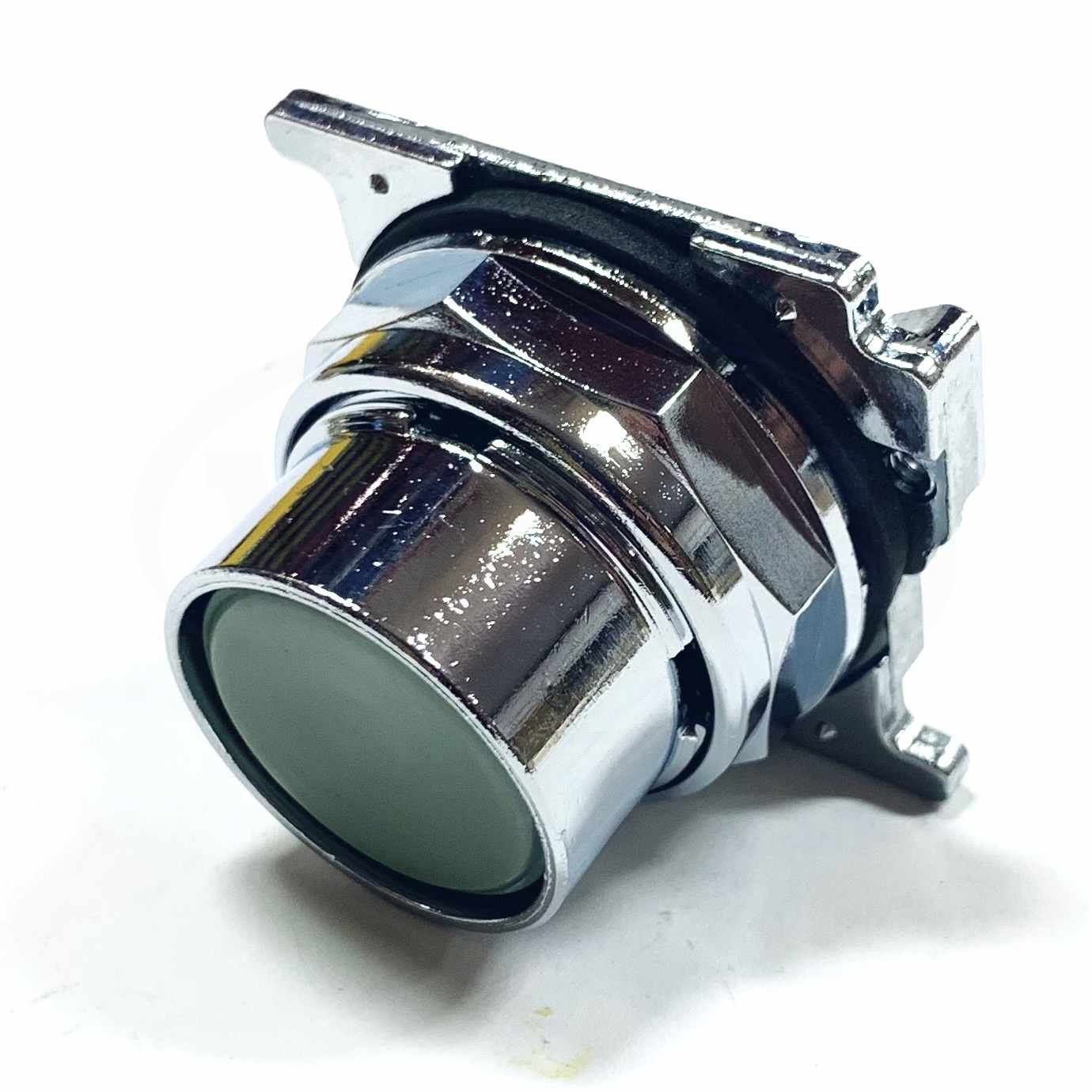

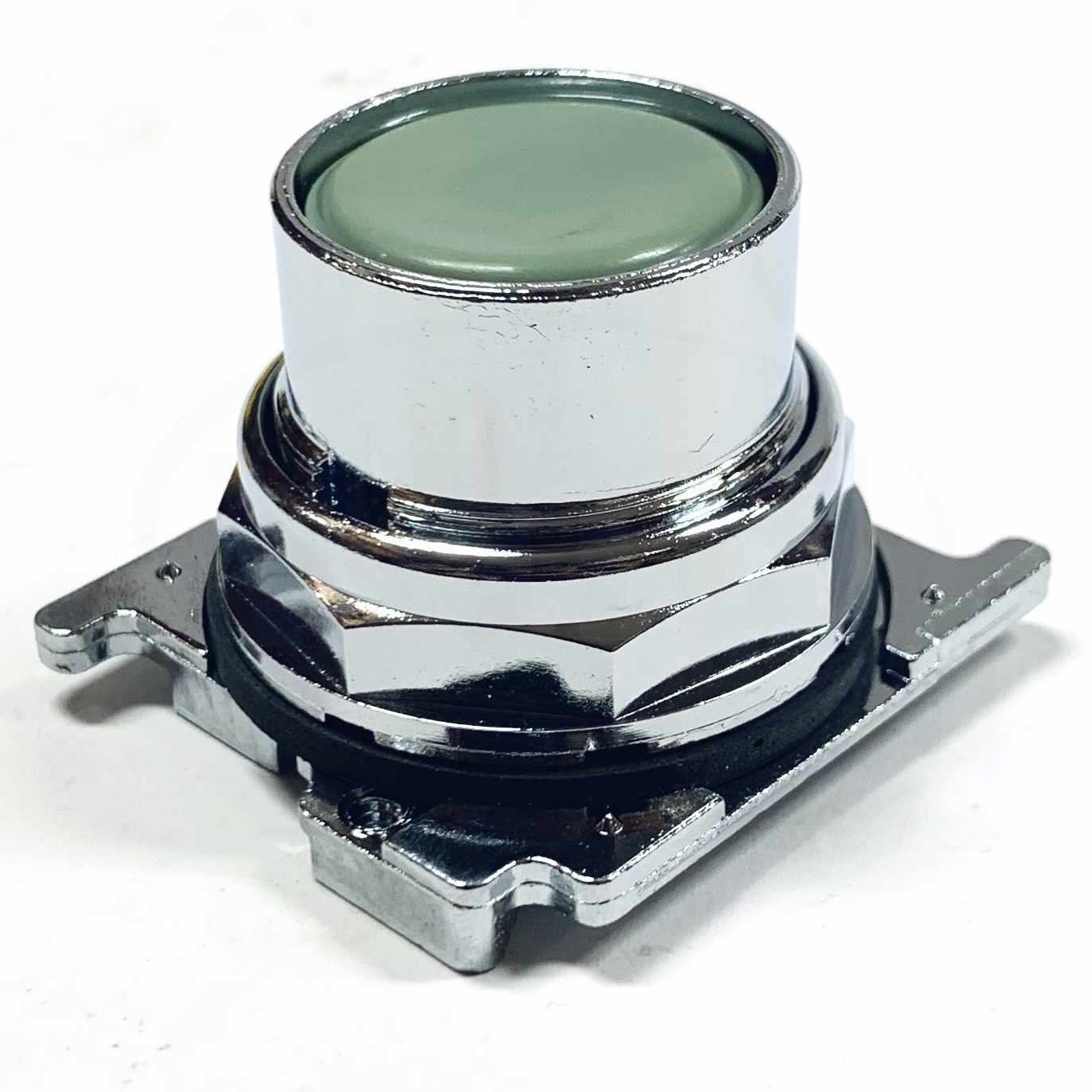

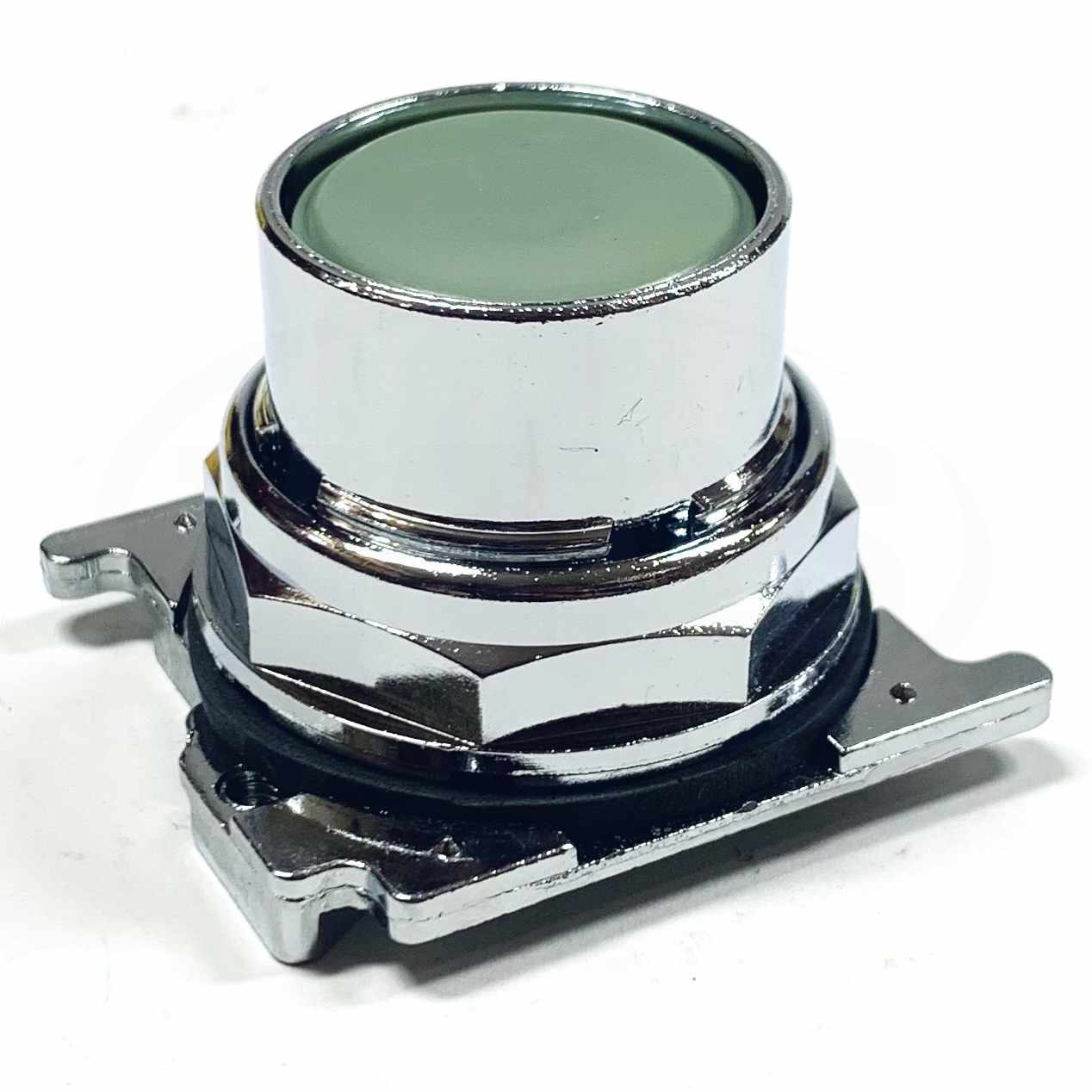

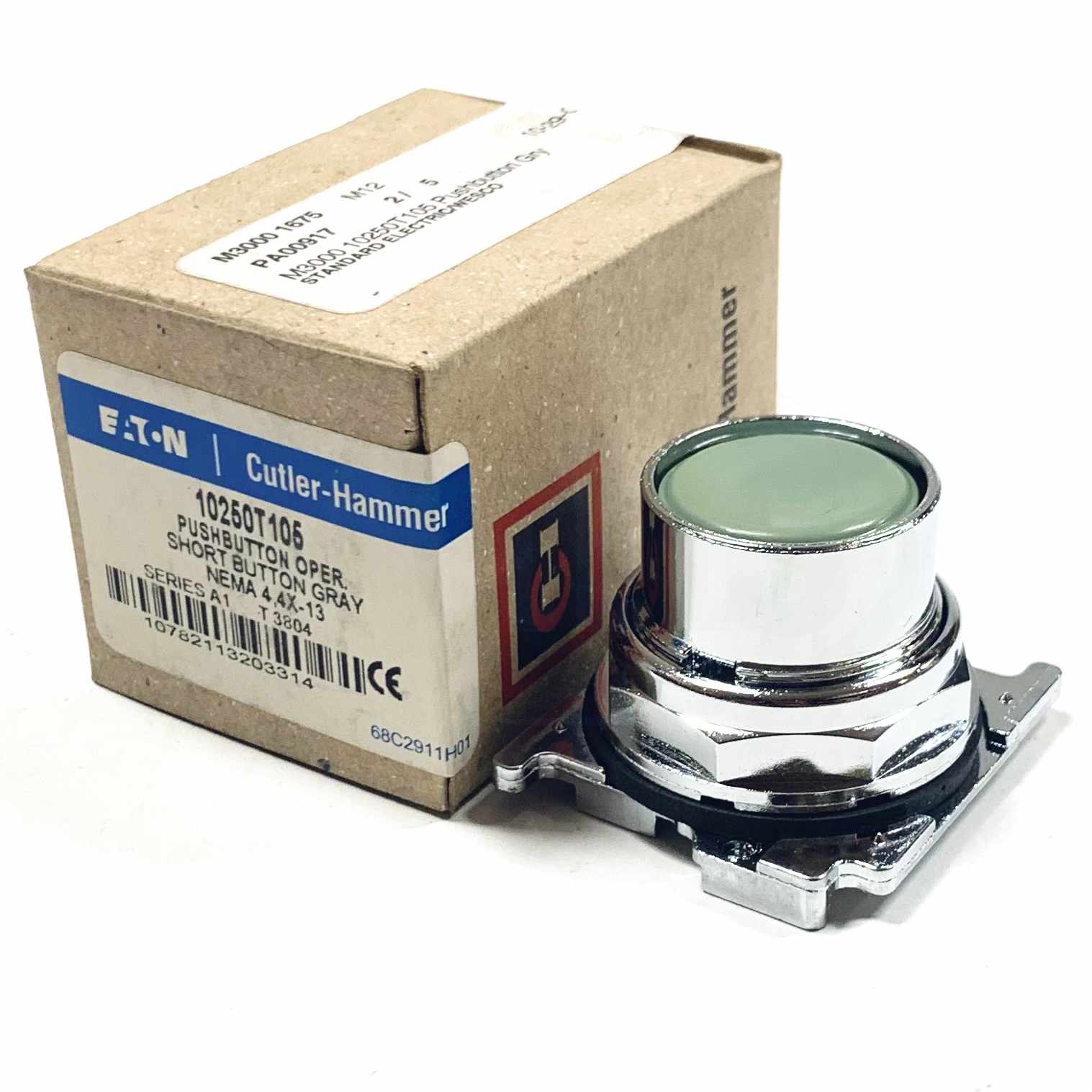

The Eaton 10250T105 is a 30.5 mm heavy-duty watertight/oiltight pushbutton. Features a plastic gray actuator and chrome bezel. Designed for flush mounting and momentary operation. Suitable for applications where reliability and durability are required, with a heavy-duty zinc die-cast construction.

• Heavy-Duty Watertight/Oiltight design
• Momentary operation
• Fingerproof shroud

Product Highlights

This 30.5mm pushbutton is ideal for use in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T105

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T105
• UPC: 782113203317
• Product Length/Depth: 1.9 in
• Product Height: 2.1 in
• Product Width: 1.9 in
• Product Type: Pushbutton
• Type: Class I division 2
• Actuator color: Gray
• Bezel: Chrome
• Actuator material: Plastic
• Operating mode: Momentary
• Illumination: Non-illuminated
• Series: 10250T
• Mounting method: Flush
• Rating: NEMA 13 NEMA 4 NEMA 12 NEMA 3 NEMA 3R NEMA 4X
• Degree of protection: NEMA 13 NEMA 3R NEMA 4X NEMA 4 NEMA 3 NEMA 12
• Product category: Flush pushbutton
• Size: 30.5 mm
• Special features: Fingerproof shroud
• Contact configuration: 1 NO (amber)
• Current Type: AC/DC
• Orientation: Horizontal/Vertical
• Operation Method: On/Off
• Switch Style: Push Button/Retractive
• Termination Type: Screw
• Contact Material: Zinc, Polymer, Metal
• Features: Heavy Duty, Indicator Light
• Button Color: Gray
• Maximum Amperage: 20 A
• Bulb Compatibility: LED
• Model: 10250T105
• Width: 2.500
• Length: 2.300
• Manufacturer Part Number: 10250T105-1
