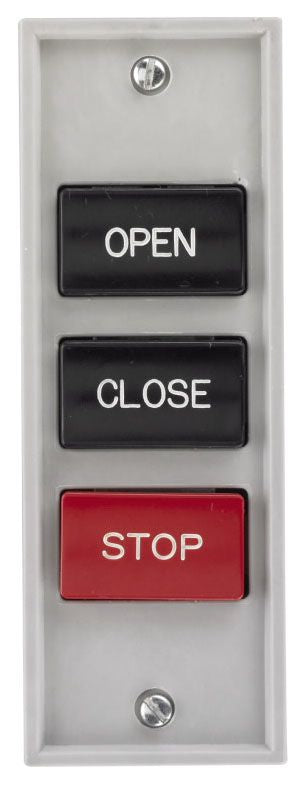

Eaton 10250H5303 Flush Type Operator

Product Description

The EATON 10250H5303 is a flush type operator designed for use in industrial control stations and push button assemblies. Flush type operators sit recessed within the mounting hole, reducing the risk of accidental actuation in demanding environments. This part is installed by licensed electricians and industrial maintenance technicians working on control panel assemblies, machine guarding circuits, and operator interface stations. The flush mounting profile keeps the actuator protected while maintaining clear operator access during normal use.

The 10250H5303 is suited for industrial and commercial control applications where panel-mount push button stations are required. It fits into standard 30mm control station enclosures and is used in manufacturing, process control, and equipment panels that require reliable operator input devices. This operator is typically installed as part of a new build or as a replacement in an existing EATON 10250 series control station.

Key Features

• Flush type mounting profile reduces accidental actuation in industrial environments
• Designed for 30mm control station push button assemblies
• Compact form factor suits panel-mount installations with limited depth clearance
• Compatible with EATON 10250 series control station components

Compatibility

Designed as an OEM-style replacement or new-installation operator for industrial push button and control station assemblies in the EATON 10250 series product family.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing any operator or contact block. Verify that the enclosure cutout and mounting hardware match the operator dimensions before final assembly. Do not overtighten mounting hardware, as this may damage the operator body or enclosure.

Technical Specifications

• Operator Type: Flush Type
• Length: 7.7 inches
• Width: 4.6 inches
• Height: 4.3 inches
• Weight: 1.35 pounds
• UPC: 78211320313

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250H5303
