Eaton 10010B-108 Barbed Hose Male Connector 5/8 Barb Npt

Product Description

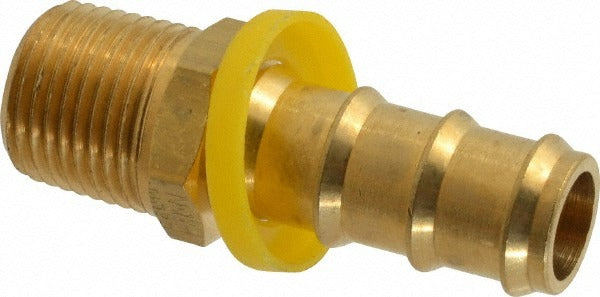

The EATON 10010B-108 is a barbed push-on hose male connector designed for use in hydraulic and fluid transfer applications where a secure, threaded-to-hose transition is required. Machined from brass, this fitting features a 1/2-14 NPT male thread on one end and a 5/8 inch barb on the other, allowing a push-on hose to be seated and retained without a separate clamp. It measures 2.6 inches in overall length with a 7/8 inch hex for wrench engagement. Rated to 6000 psi maximum working pressure, this connector is suited for demanding fluid line assemblies. A licensed plumber, HVAC technician, or hydraulic systems installer typically handles this fitting in both commercial and industrial settings.

This fitting is used wherever a threaded port must transition to a barbed push-on hose connection. Common applications include hydraulic fluid lines, coolant circuits, compressed air systems, and general fluid transfer plumbing. The 1/2-14 NPT thread is a standard taper thread found on pumps, valves, manifolds, and equipment housings across a wide range of trade installations. The 5/8 inch barb accommodates matching inside-diameter push-on hose. The 1-3/16 inch cut-off allowance provides guidance on hose installation depth and trimming during assembly.

Key Features

• Brass construction for corrosion resistance in fluid and hydraulic service
• 1/2-14 NPT male thread for compatibility with standard taper-threaded ports
• 5/8 inch barb diameter for secure push-on hose engagement
• 6000 psi maximum working pressure rating
• 7/8 inch hex for positive wrench engagement during installation
• 1-3/16 inch cut-off allowance guides proper hose seating depth

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 1/2-14 NPT threaded ports and 5/8 inch inside-diameter push-on hose assemblies.

Installation Notes

Installation is typically performed by a licensed plumber, hydraulic technician, or HVAC mechanic. Depressurize and drain the fluid circuit completely before removing or installing any fitting. Apply thread sealant appropriate for the fluid media to the NPT threads before engagement. Do not over-torque brass fittings; use the 7/8 inch hex and follow the fitting manufacturer or system OEM torque guidance for brass NPT connections.
