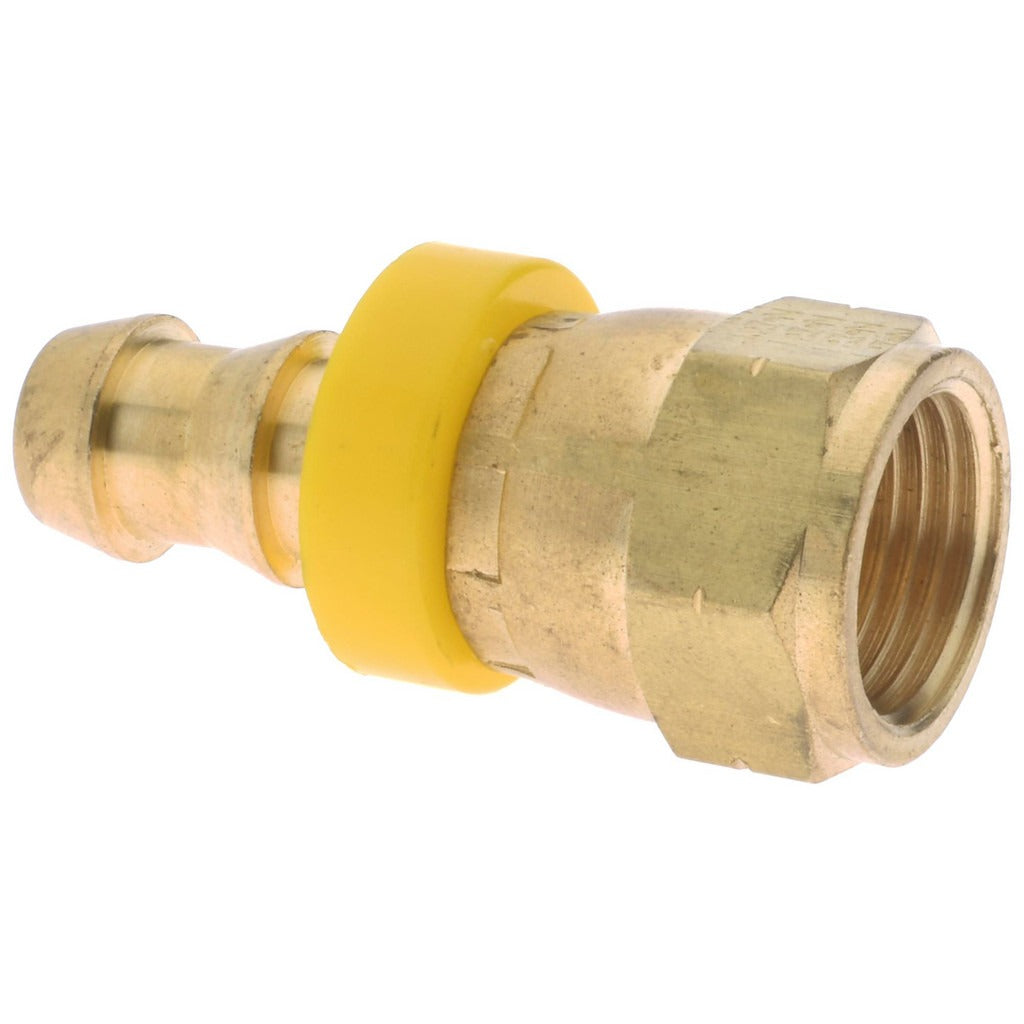

Eaton 10006B-406 Female Pipe Swivel 3/8 Inch Barb Brass

Product Description

The EATON 10006B-406 is a barbed push-on hose female pipe swivel fitting machined from brass. It accepts a 3/8 inch inside diameter hose via a push-on barb connection and threads onto a mating port using a 5/8-18 UNF female swivel thread. The swivel design allows the hose to be positioned without twisting during installation. Rated to 4000 psi maximum working pressure, this fitting is built for demanding hydraulic and fluid transfer applications. Overall length is 1.62 inches, with a 3/4 inch hex for wrench engagement and a 7/8 inch cut-off allowance. Plumbers, hydraulic technicians, and fluid power specialists are the primary installers.

This fitting is suited for hydraulic hose assemblies, fluid transfer lines, and high-pressure plumbing connections where a push-on barb end meets a threaded port. The female swivel thread eliminates the need to rotate the hose during make-up, reducing installation time on tight or congested assemblies. The brass construction resists corrosion and is compatible with a range of hydraulic fluids, water, and many common industrial fluids. It is sold and packaged as a single unit.

Key Features

• 4000 psi maximum working pressure rating for high-pressure hydraulic service
• 5/8-18 UNF female pipe swivel thread for tool-tight, leak-resistant connection
• 3/8 inch barb accepts push-on hose without clamps or ferrules
• Swivel design prevents hose twist during installation
• 3/4 inch hex provides positive wrench engagement
• Brass construction for corrosion resistance across a range of fluid types

Compatibility

Designed as an OEM-style replacement or new-installation fitting for push-on hydraulic hose assemblies requiring a 3/8 inch barb and a 5/8-18 UNF female swivel threaded port connection.

Installation Notes

Installation is performed by qualified hydraulic technicians or plumbers. Depressurize and drain the fluid system completely before removing or installing any hose fitting. Use an appropriately sized wrench on the 3/4 inch hex to tighten the swivel nut; do not over-torque brass fittings. Ensure the push-on hose is fully seated on the barb before returning the system to service and verify there are no leaks under pressure.
