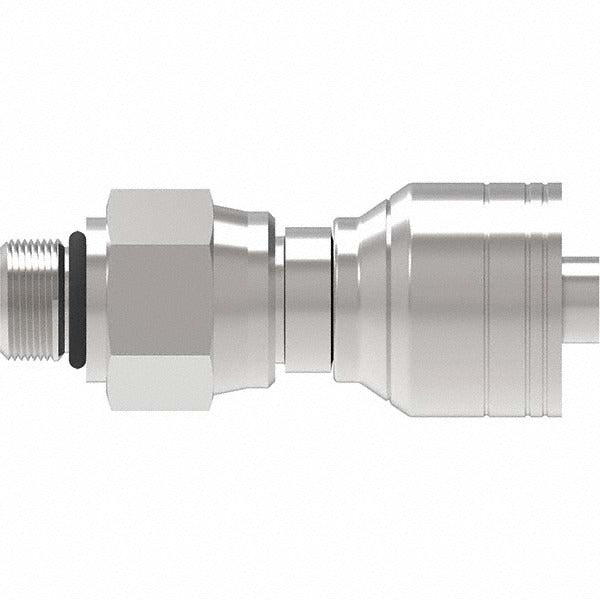

Eaton 08Z-R08-BG Hydraulic Hose Swivel Fitting 8mm 3/4-16

Product Description

The EATON 08Z-R08-BG is a male straight thread O-ring swivel fitting designed for hydraulic hose assemblies. It provides a leak-resistant connection by sealing against a machined seat with an O-ring at the thread interface, eliminating the need for thread sealants. Constructed from steel with a 3/4-16 thread size and an 8 mm hose size, this fitting is built for the pressure demands of hydraulic circuits. The swivel design allows the hose to be positioned without twisting during assembly. Licensed HVAC, plumbing, and hydraulic system technicians install this fitting in a wide range of industrial and mobile equipment applications.

The 08Z-R08-BG is suited for hydraulic hose assemblies where an SAE straight thread O-ring port connection is required. The swivel body accommodates hose routing adjustments without inducing torsional stress on the hose. This fitting is appropriate for use in industrial machinery, mobile hydraulic equipment, and fluid power systems where steel fittings and SAE thread standards are specified. It ships as a single unit and is intended as a direct replacement or new-build component in hydraulic circuits.

Key Features

• Male straight thread O-ring swivel design provides a reliable, leak-resistant hydraulic seal
• 3/4-16 SAE thread size for compatibility with standard SAE straight thread O-ring ports
• 8 mm hose size accommodates standard hydraulic hose in that diameter range
• Steel construction for durability under hydraulic system pressures
• 1-inch hex size allows standard wrench torquing during installation
• Swivel body prevents hose twist during assembly and routing

Compatibility

Designed as an OEM-style replacement or new-build swivel fitting for hydraulic hose assemblies using SAE straight thread O-ring ports with a 3/4-16 thread size and an 8 mm hose connection.

Installation Notes

Installation should be performed by a qualified hydraulic system technician. Depressurize and bleed down the hydraulic system completely before removing or installing any fittings. Inspect the O-ring for damage before assembly and ensure the mating port seat is clean and free of burrs. Torque the fitting using a wrench on the hex — do not grip the swivel body — and verify there are no leaks before returning the system to service.
