Eaton 08Z-A30-BG Hydraulic Hose Fitting 90 Elbow 8mm

Product Description

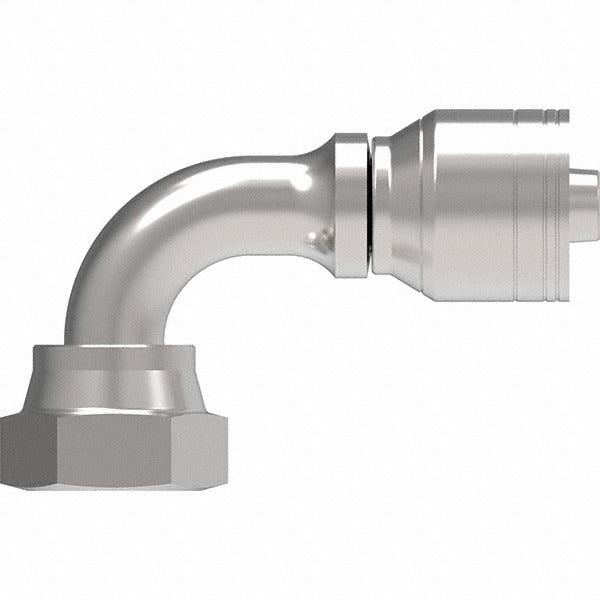

The EATON 08Z-A30-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting manufactured from steel. It is designed to create a right-angle connection point in hydraulic fluid lines, allowing hoses to route away from a port without excessive bending or stress on the hose assembly. The fitting accepts an 8 mm hose size with a 1-inch hose diameter and uses a 1-14 thread size. The FOR-SEAL shaft type provides a reliable face-seal connection that resists leakage under pressure. A 1-1/4-inch hex makes it compatible with standard open-end or combination wrenches. This type of fitting is installed by hydraulic system technicians in mobile equipment, industrial machinery, and fluid power circuits.

This fitting is suited for hydraulic plumbing applications where a short drop 90-degree elbow is required to transition from a port face to a hose run. It is commonly used in mobile hydraulic systems found on construction equipment, agricultural machinery, and industrial power units. The swivel design allows the hose to be oriented during installation without twisting the hose body, which reduces assembly stress and helps maintain proper hose alignment in tight equipment compartments.

Key Features

• Female ORS swivel design allows hose positioning without twisting during installation
• Short drop 90-degree elbow geometry reduces hose routing clearance requirements
• FOR-SEAL shaft type provides a face-seal connection for leak-resistant performance
• Steel construction for durability in high-pressure hydraulic service
• 1-1/4-inch hex for installation with standard hand tools
• 1-14 thread size with 1-inch hose diameter and 8 mm hose size designation

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for use in fluid power systems requiring a female ORS swivel short drop 90-degree elbow with an 8 mm hose size and 1-14 thread connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing any fittings. Clean all mating surfaces and inspect threads and sealing faces for damage before assembly. Torque to the equipment manufacturer or fitting manufacturer specifications using a calibrated torque wrench — do not rely on feel alone when working with face-seal fittings.
