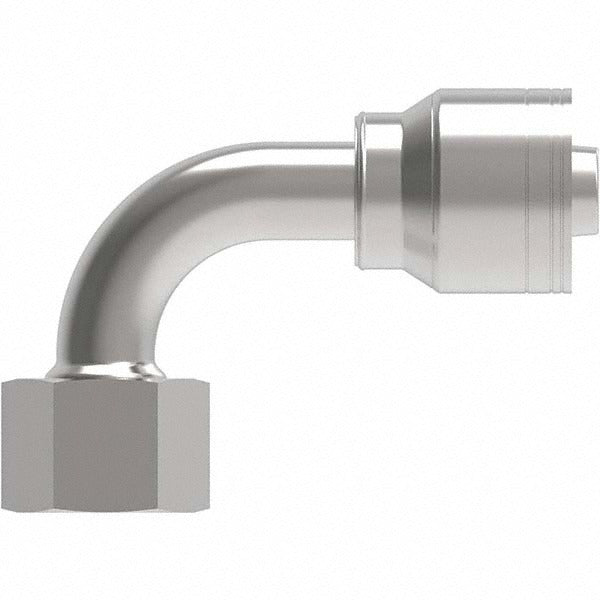

Eaton 06Z-62D-BG Hydraulic Hose Female Swivel Fitting 6mm

Product Description

The EATON 06Z-62D-BG is a female swivel hydraulic hose fitting designed to a DIN 24 degree seat specification in a 90-degree light-duty configuration. Built from steel with a metric thread standard, this fitting connects a 6 mm hose to a mating port using an M18 x 1.50 thread. The swivel design allows the hose to be positioned without twisting during assembly, reducing installation stress on the hose end. It is a direct-fit component used in hydraulic plumbing systems and is installed by hydraulic technicians, mobile equipment mechanics, and industrial maintenance professionals working with metric DIN-standard fluid power circuits.

This fitting is suited for light-duty hydraulic circuits using 6 mm hose assemblies where a 90-degree elbow exit is required. The DIN 24 degree seat provides a reliable metal-to-metal seal when mated to a corresponding DIN port. With a 15/32 inch hose inside diameter and 7/8 inch hex size, it is compatible with standard metric hydraulic hose assemblies in agricultural, mobile, and industrial equipment that use M18 x 1.50 threaded ports.

Key Features

• DIN 24 degree seat geometry for a metal-to-metal port seal
• 90-degree elbow orientation for space-constrained routing
• Female swivel design allows hose positioning without twisting the assembly
• Steel construction for durability in hydraulic system environments
• M18 x 1.50 metric thread for compatibility with DIN-standard ports
• 7/8 inch hex size for wrench engagement during installation

Compatibility

Designed as a replacement-style hydraulic hose fitting for light-duty metric hydraulic systems using 6 mm hose with DIN 24 degree seat ports threaded to M18 x 1.50.

Installation Notes

Installation is performed by qualified hydraulic technicians or mechanics. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Use the 7/8 inch hex to torque the fitting to the port — do not over-tighten, as DIN seat fittings rely on metal-to-metal contact and do not use a separate seal element. Inspect the mating port seat for damage before assembly to ensure a leak-free connection.
