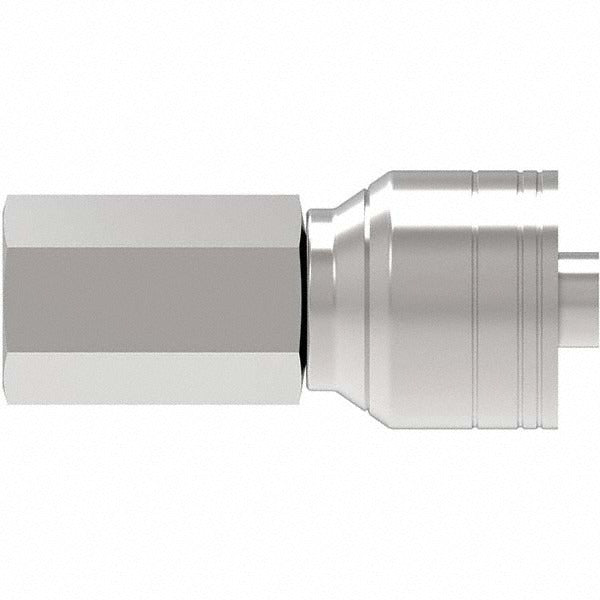

Eaton 06Z-204-BG Hydraulic Hose Female Pipe Rigid Fitting

Product Description

The EATON 06Z-204-BG is a female pipe rigid fitting designed for hydraulic hose assemblies. It connects a 6 mm hose to a 1/4-18 NPTF threaded port, creating a leak-resistant seal suited for hydraulic fluid transfer lines. Constructed from steel, this rigid fitting maintains dimensional stability under pressure and resists deformation at the joint. The 3/4-inch hex allows for standard wrench engagement during installation. Hydraulic technicians and fluid power specialists install this fitting in mobile equipment, industrial machinery, and hydraulic power unit plumbing.

This fitting is used in hydraulic systems where a female pipe rigid connection is required at a 1/4-18 NPTF port. The rigid configuration prevents hose rotation at the fitting, which is critical in tight routing scenarios or where hose movement could cause wear or fatigue. Typical applications include construction equipment hydraulics, agricultural machinery, and stationary industrial power units. The NPTF thread form provides a dry-seal connection that does not rely solely on thread sealant tape for leak prevention.

Key Features

• Female pipe rigid fitting design prevents hose rotation at the connection point
• 1/4-18 NPTF dry-seal thread eliminates reliance on sealant tape alone
• Steel construction for durability under hydraulic system pressures
• 3/4-inch hex size accommodates standard open-end or combination wrenches
• Compact dimensions support installation in confined hydraulic plumbing runs

Compatibility

Designed as an OEM-style replacement rigid hose fitting for hydraulic systems using 6 mm hose with 1/4-18 NPTF female pipe thread ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect the mating port threads for damage before installation, and apply thread sealant only as appropriate for NPTF connections. Torque to the hydraulic system or equipment manufacturer specifications; do not over-torque steel fittings into aluminum ported components.
