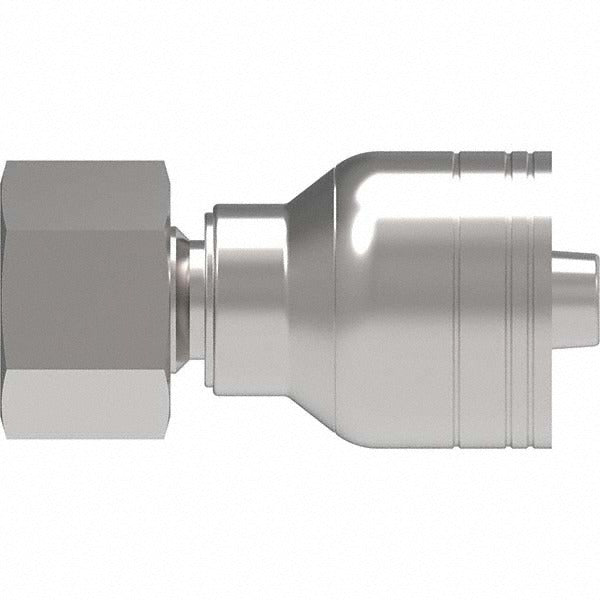

Eaton 06Z-12C-BG Female Swivel Din 24 Seat Hose Fitting

Product Description

The EATON 06Z-12C-BG is a female swivel DIN 24 seat light hydraulic hose fitting designed for use in metric hydraulic systems. Constructed from steel, this fitting connects a 6 mm hydraulic hose to a DIN 24 degree seat port using an M18 x 1.50 thread. The swivel design allows the hose to be positioned without twisting during installation, reducing stress on the hose assembly. Weighing 0.18 pounds, this compact fitting is sized for light-duty hydraulic circuits and is installed by hydraulic system technicians and fluid power mechanics in industrial and mobile equipment applications.

This fitting is suited for metric hydraulic plumbing in light-duty circuits where a DIN 24 seat female swivel connection is required. Typical applications include mobile hydraulic equipment, agricultural machinery, and industrial hydraulic power units that use metric hose and port standards. The 15/32 inch hose inside diameter and 7/8 inch hex size are standard for this hose size range, making this fitting compatible with common metric hydraulic hose assemblies in light-series configurations.

Key Features

• Female swivel DIN 24 seat light fitting — allows hose positioning without twisting the hose body
• M18 x 1.50 metric thread for secure port connection
• Steel construction for durability in hydraulic service environments
• 6 mm hose size with 15/32 inch hose inside diameter
• 7/8 inch hex size for standard wrench installation
• Single-piece packaging — sold individually

Compatibility

Designed as an OEM-style replacement fitting for light-series metric hydraulic hose assemblies using DIN 24 degree seat female swivel connections with M18 x 1.50 thread ports.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings, and allow the system to cool if it has been in operation. Use a calibrated torque wrench and follow the fitting manufacturer torque specifications for M18 metric fittings — do not over-torque, as this can damage the DIN 24 seat sealing surface. Inspect the mating port seat and threads for damage or contamination before assembly.
