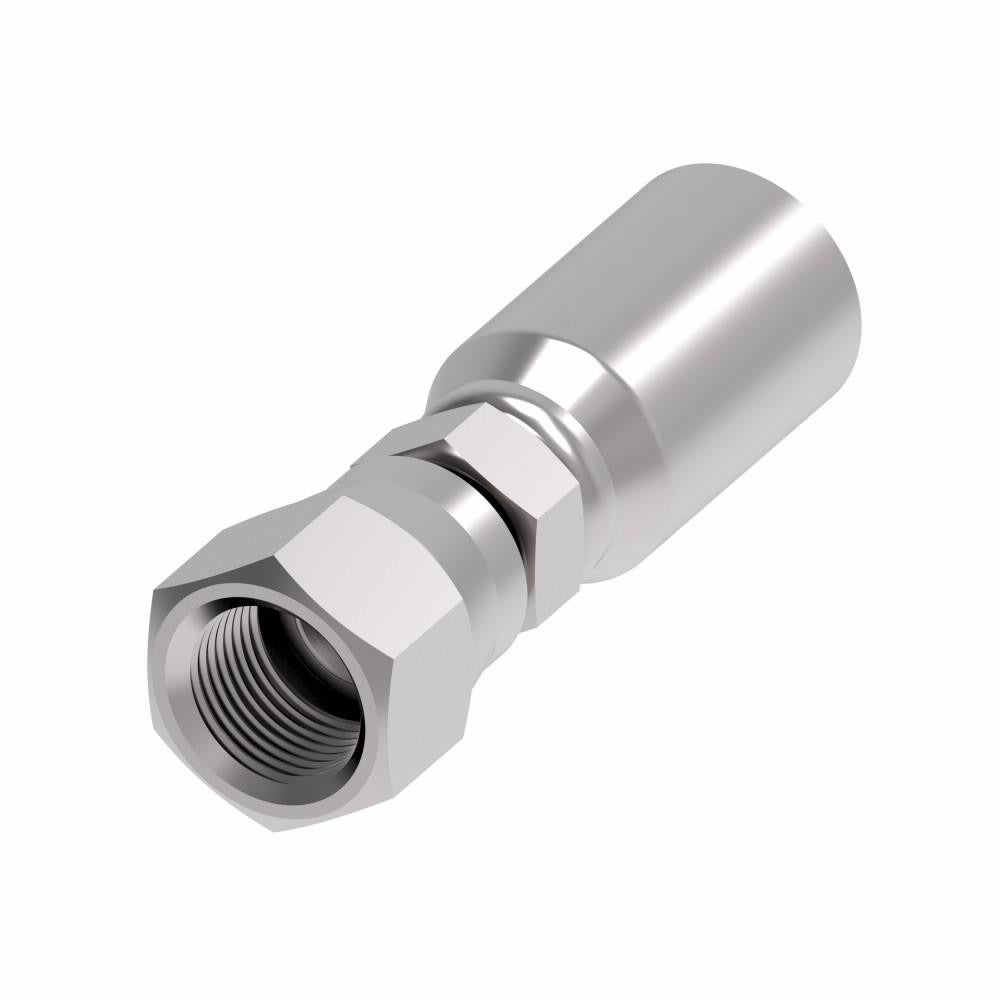

Eaton 06E-606 Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 06E-606 is a straight female swivel fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. Built from steel with SAE-standard threading, it provides a reliable threaded connection at the hose end, allowing the fitting to swivel during assembly to reduce torque transfer to the hose. The fitting accepts hoses with a 0.375 inch inside diameter and a 0.375 inch outside diameter, uses a 9/16-18 thread size, and carries a maximum working pressure rating of 5000 psi. It is part of the EATON Series E fitting line. Hydraulic technicians and fluid power specialists are the primary installers of this component.

This fitting is suited for use in mobile hydraulic systems, industrial hydraulic circuits, and equipment where SAE-spec fittings are required. The straight configuration makes it appropriate for inline hose terminations where a 90-degree or angled fitting would add unnecessary complexity. Compatible hose series listed by EATON include H009, H209, H243, H265, H275, H277, H285, H435, and H436, making this a versatile termination option across a range of EATON hydraulic hose products.

Key Features

• Female swivel design reduces torsional stress on the hose during assembly and routing
• Maximum working pressure of 5000 psi for demanding hydraulic applications
• Steel construction for durability in high-pressure fluid power environments
• SAE-standard 9/16-18 thread size for broad system compatibility
• Straight shape for direct inline hose termination
• 9/16 inch hex size for standard wrench installation

Compatibility

Designed for use with EATON hydraulic hose series H009, H209, H243, H265, H275, H277, H285, H435, and H436. Fits hoses with a 3/8 inch (6 mm) hose diameter in SAE-standard hydraulic assemblies.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power assembly standards. Depressurize and fully isolate the hydraulic circuit before disconnecting or connecting any fittings. Use a properly sized open-end or flare-nut wrench on the 9/16 inch hex to avoid rounding. Follow applicable SAE and system OEM torque and assembly guidelines; do not overtighten, as this can damage the swivel seat and compromise the pressure rating.
