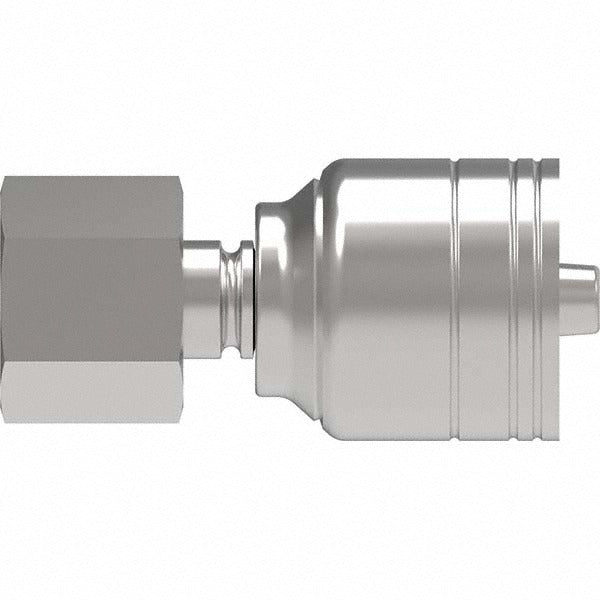

Eaton 04Z-08C-BG Female Swivel Din 24 Seat Hose Fitting

Product Description

The EATON 04Z-08C-BG is a female swivel DIN 24 seat light hydraulic hose fitting designed for use in metric hydraulic plumbing applications. Manufactured from steel, this fitting accepts a 4 mm hose size with an M14 x 1.50 thread and measures approximately 1.81 inches in length. The swivel design allows the fitting body to rotate during installation, reducing hose twist and simplifying assembly in tight or awkward routing situations. At 0.1 pounds, it is a compact, single-piece component intended for replacement or new-build hydraulic line work. Licensed hydraulic technicians and industrial maintenance personnel are the typical installers.

This fitting is suited for light-duty hydraulic systems using DIN 24 seat connections, common in mobile equipment, industrial machinery, and fluid power circuits that run metric-standard hose and port fittings. The 21/64-inch hose diameter and 43/64-inch hex size make it compatible with standard metric hydraulic hose assemblies where a female swivel termination is required. It is packaged individually and sold as a single-unit replacement component.

Key Features

• Female swivel DIN 24 seat design reduces hose twist during assembly
• M14 x 1.50 metric thread for use in DIN-standard hydraulic circuits
• Steel construction for durability in pressurized fluid power systems
• Compact form factor: 1.81 inches long, 0.67 inches wide, 0.67 inches tall
• 21/64-inch hose diameter opening with 43/64-inch wrench hex
• Single-unit packaging suits replacement and service work

Compatibility

Designed as an OEM-style replacement fitting for metric hydraulic hose assemblies using DIN 24 seat light-series female swivel connections with M14 x 1.50 thread and 4 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Use a calibrated torque wrench sized for the 43/64-inch hex and follow the equipment manufacturer's torque specifications for M14 x 1.50 DIN 24 seat fittings. Inspect the seating surface and threads for damage before assembly, and do not overtighten, as light-series fittings have reduced wall thickness compared to heavy-series equivalents.
