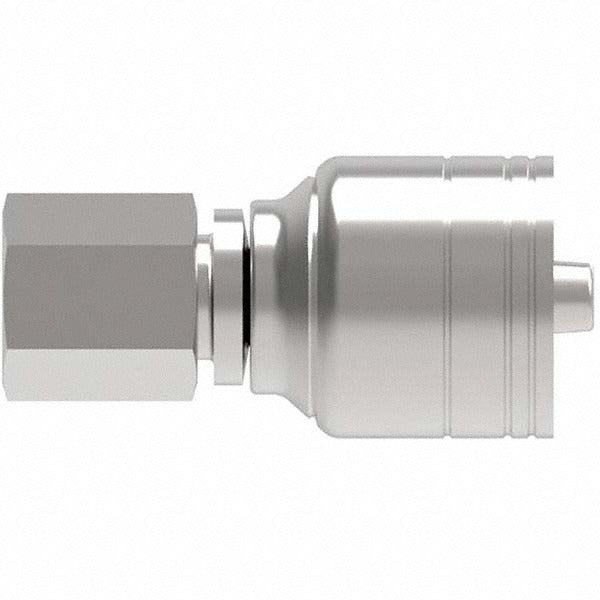

Eaton 04Z-06C-BG Female Swivel Din 24 Seat Hose Fitting

Product Description

The EATON 04Z-06C-BG is a female swivel DIN 24 seat light hydraulic hose fitting designed for use in metric hydraulic systems. Manufactured from steel, this fitting accepts a 4 mm hose size with a 1/4-inch hose diameter and uses an M12 x 1.50 thread for a secure, leak-resistant connection. The swivel design allows the hose to rotate during installation without twisting the line, reducing assembly stress. At 0.11 pounds and compact dimensions of 1.89 inches in length and 0.88 inches in width, it is well suited for tight plumbing runs in mobile and industrial hydraulic circuits. Hydraulic technicians and fluid power mechanics are the primary installers.

This fitting is appropriate for light-duty hydraulic hose assemblies using DIN 24 seat connections, which are common in European-standard and metric hydraulic systems. Typical applications include mobile equipment, agricultural machinery, and industrial hydraulic power units where metric plumbing is specified. The female swivel end connects to a DIN 24 cone seat port, and the hex size of 41/64 inch accommodates standard open-end or combination wrenches used in field and shop assembly.

Key Features

• Female swivel design allows hose rotation during installation without line twist
• DIN 24 seat light configuration for metric hydraulic system compatibility
• M12 x 1.50 thread size for precise, leak-resistant port connection
• Steel construction for durability in hydraulic service environments
• Compact form factor at 1.89 inches length for tight-clearance plumbing runs
• 41/64 inch hex size compatible with standard open-end wrenches

Compatibility

Designed as an OEM-style replacement or service fitting for metric hydraulic hose assemblies using DIN 24 seat light fittings with a 4 mm hose size and M12 x 1.50 thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fitting. Use the correct open-end or combination wrench on the 41/64 inch hex to avoid rounding the fitting body. Do not over-torque the swivel nut, as DIN seat fittings rely on metal-to-metal cone contact for sealing rather than thread crush.
