Product Description

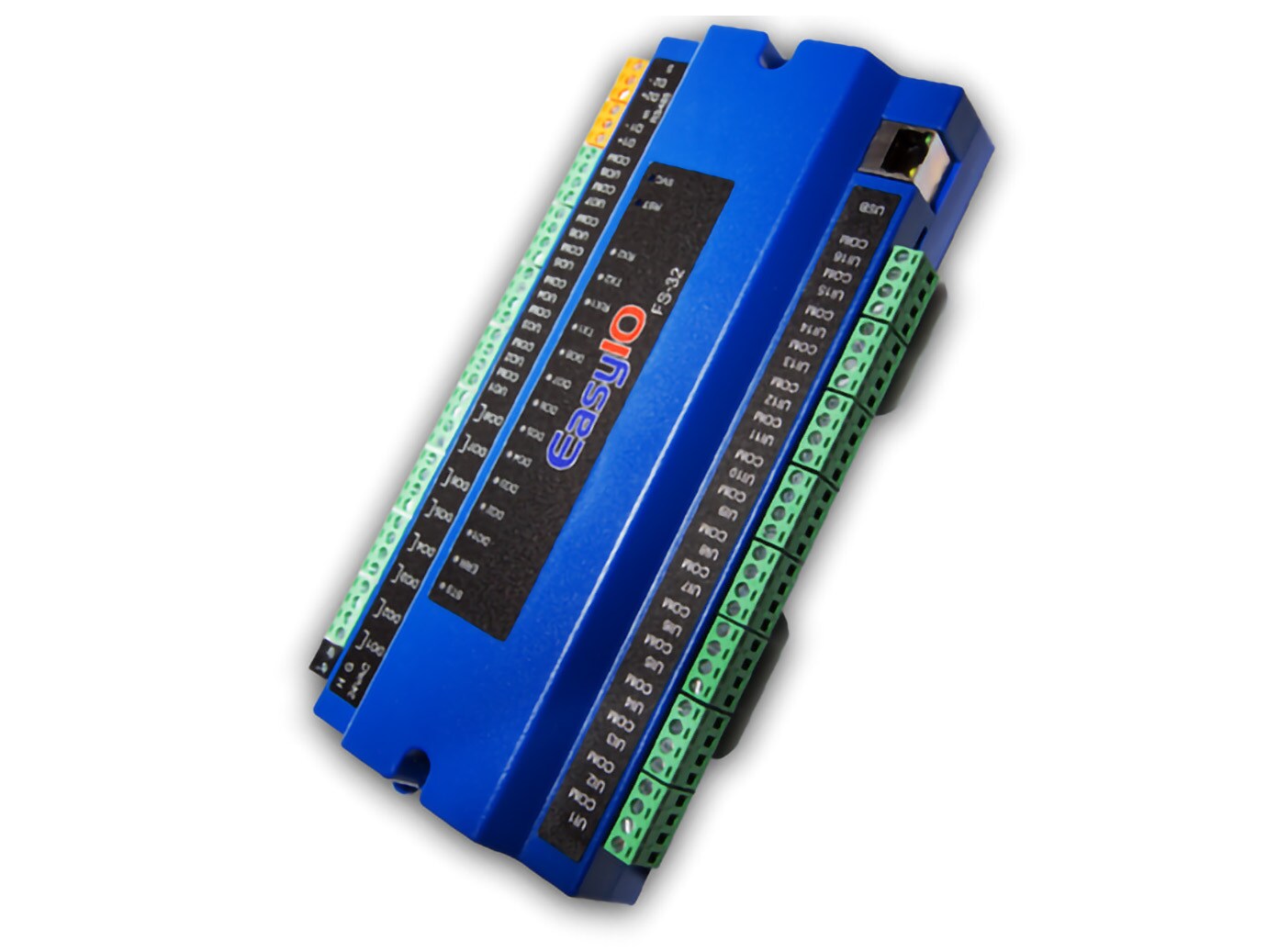

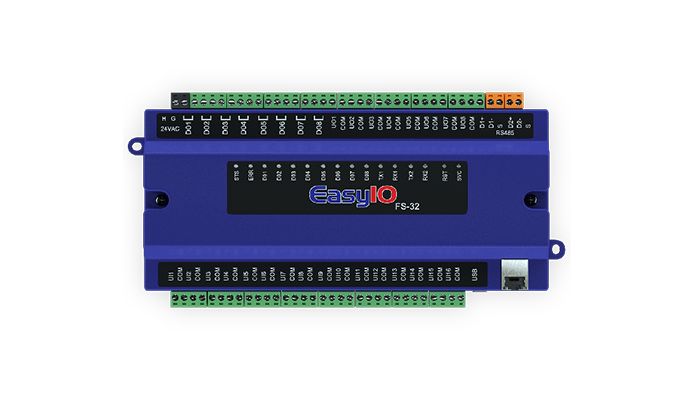

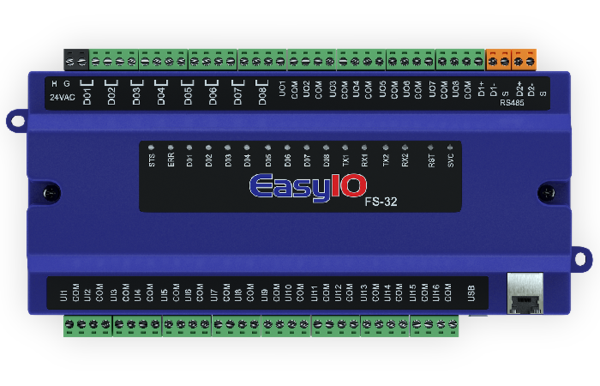

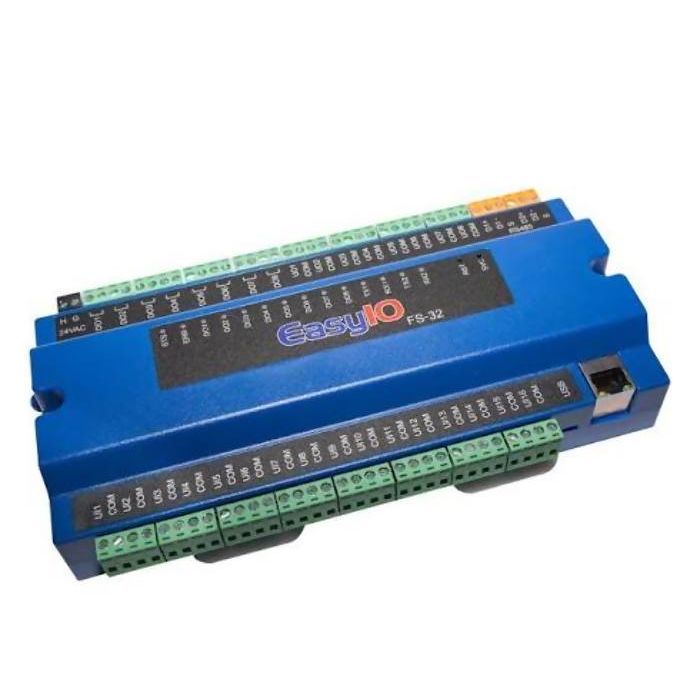

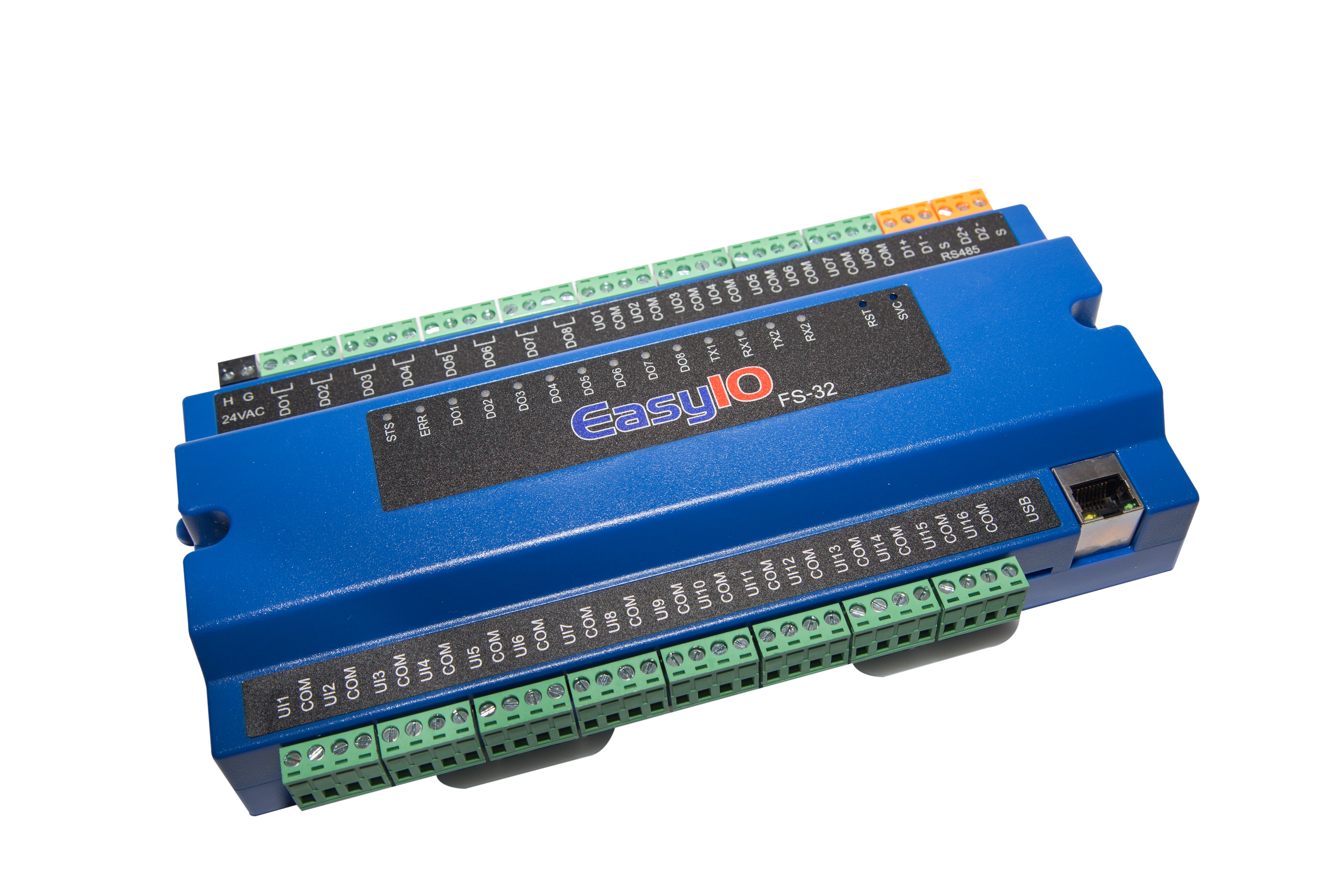

The EASYIO EASYIO-FS-32 Fs-32 Controller is a general-purpose, programmable controller with 32 IO. It features 16 UI, 8 DO, and 8 UO, and supports BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP. The controller is equipped with one Ethernet and two RS-485 ports. It also has a real-time clock and two processors.
- Features a 1.2 GHz Quad Core processor and 512 MB RAM.
- Offers 8GB of flash memory for storage and history.
- Supports enterprise network security standards.
Product Highlights
The EASYIO FS-32 controller is a high-performance, network-ready controller ideal for data integration and multi-system interoperability.
Product Information
Standard Information
-
Brand: EASYIO
-
Manufacturer Part Number: EASYIO-FS-32
Technical Specifications
-
IO: 32
-
Type: Programmable
-
Ports: RS-485, Ethernet, USB
-
Power: 24 VAC
-
Mounting: DIN Rail Mount
-
Application: General Purpose
-
Operating Conditions: 0 to 65 °C (32 to 150 °F)
-
Communication Network: BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP
-
Controller Product Family: EASYIO-FS
-
Processor: 1.2 Ghz Quad Core ARM A7 main processor
-
I/O Processor: 48 Mhz ARM Cortex-M0 processor for the I/O
-
RAM: 512MB Gbyte RAM
-
Flash Memory: 8GB Flash Memory
-
Storage: On board 8GB of EMMC for storage and history
-
Protocols: BACnet MSTP Client/Server, BACnet IP Client/Server, Modbus TCP and RTU M/S, MQTT, TCOM, SOX
-
Peer to Peer Protocol: EasyIO Peer to Peer Protocol, compatible with FS, FG+, FW and FT Series
-
Ethernet Port: 1 x 10/100 Ethernet Port
-
RS485: 2 x RS485
-
UI: 16x UI
-
DO: 8x DO (with LED indicator)
-
UO: 8x UO
-
Power Supply: 24V AC +/- 5% or 24V DC +20% / - 15%
-
Power Consumption: 750 mA at 24VAC/VDC 500mA at 24VAC/VDC
-
Storage Temperature: -20 to 85°C (-4 to 185°F)
-
Operating Temperature: 0 to 65°C (32 to 150°F)
-
Operating Humidity: 10% to 90% relative humidity (non-condensing)
-
Material: Plastic in acc. with UL
-
Main Processor: 1.2 GHz Quad Core ARM A7
-
SD card holder: Yes, for data backup
-
Ethernet: 1 x Ethernet Port 10Mb/100Mb; 10Base-T/ 100Base-T interface, half or full duplex
-
RS 485 Interfaces: 2 x RS485 (connection 1 is BACnet, connection 2 is Modbus)
-
Real-Time Clock (RTC): Real-Time Clock with at least 5 days of backup using SuperCAP
-
Power Failure Protection: SuperCap Apps Safety Backup
-
Network Security Standard: IPv6, IPv4, DHCP Client, SSL, TLS 1.3, 802.1x; VPN Client and Server
-
Database and API: MQTT, SQL database and RESTful API
-
Supported Protocols: BACnet MS/TP Client/Server, BACnet IP Client/Server, Modbus RTU M/S, Modbus, TCP M/S, MQTT, TCOM, SOX
-
E-mail Service: SMTP protocol (outgoing e-mail) with SSL encryption
-
Time Synchronization Network: Time Sync Protocol
-
Modbus Baud Rate: Speed (9.6K, 19.2k, 38.4K, 57.6K), Data Bits 8, Parity Odd, Even, None
-
BACnet Baud Rate Speed: 9.6K, 19.2k, 38.4K, 76.8K
-
Number of Points: 32
-
Outputs: 8 UO, 8 DO
-
Inputs: 16 UI
