Product Description

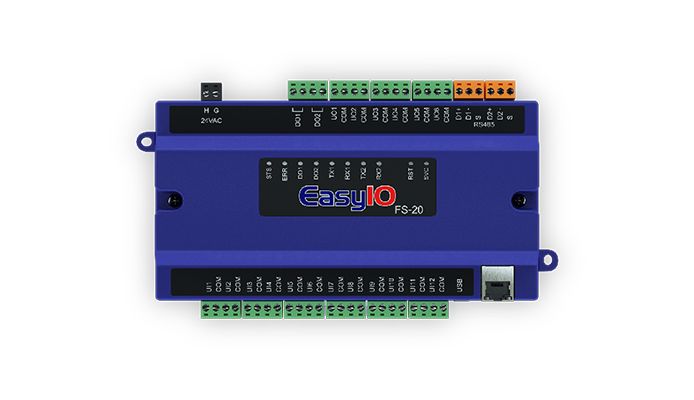

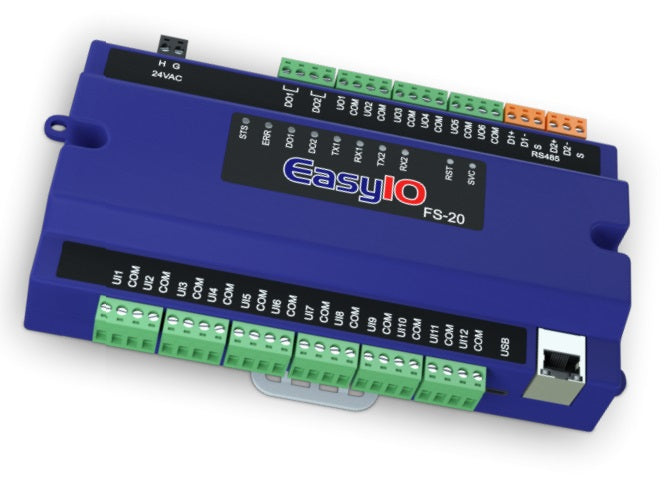

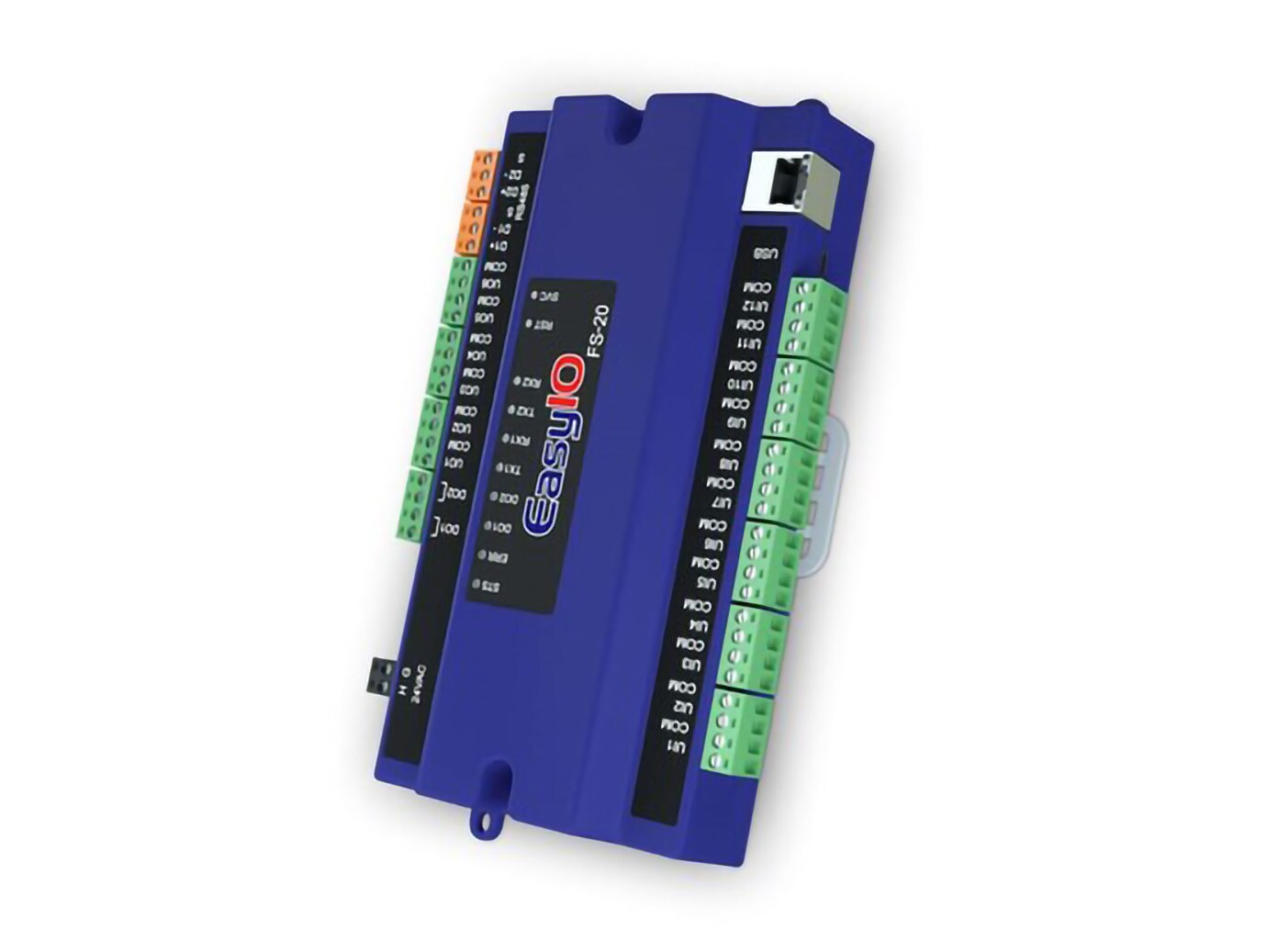

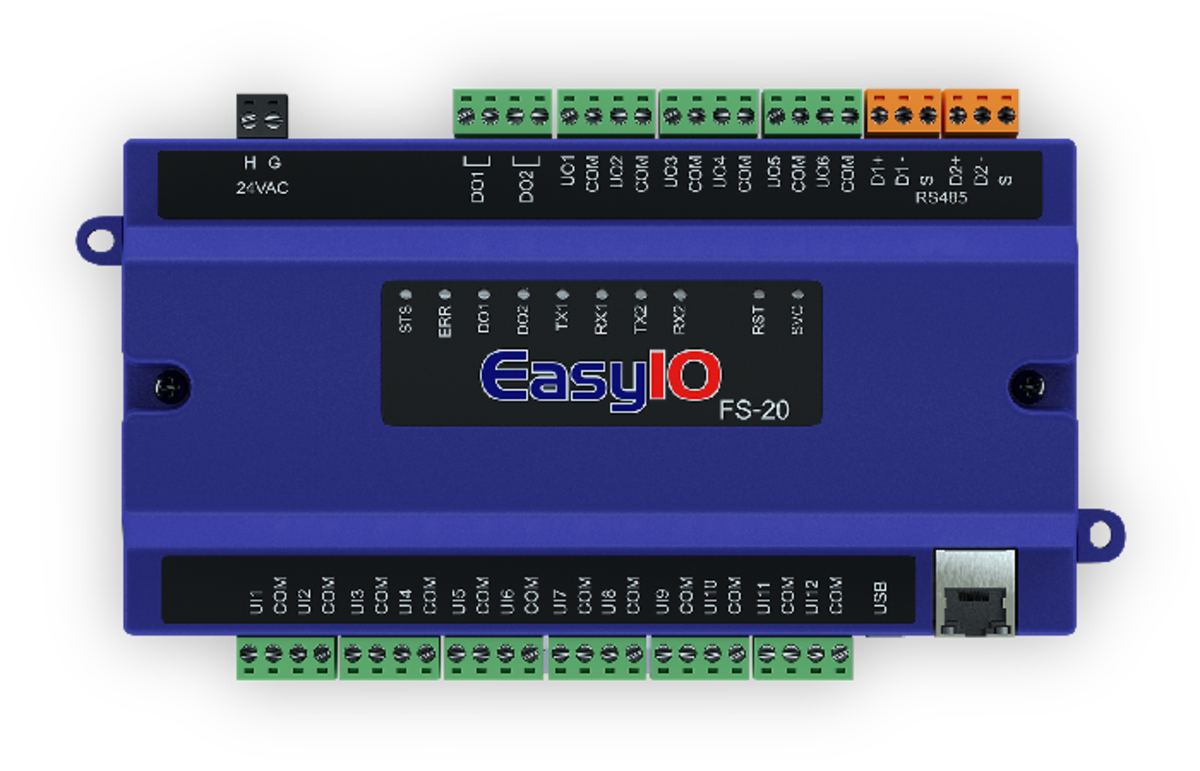

The EASYIO EASYIO-FS-20 is a high-performance network controller with a 1.2 GHz quad core processor and 512 MB RAM. It features 8GB flash memory, HTML5 graphics, and supports BACnet, Modbus, MQTT, Sox, and TCom protocols. The controller includes a built-in VPN for secure remote connectivity and supports the latest IT network and security standards.
- High-performance network controller with a 1.2 GHz quad core processor
- Built-in HTML 5 web server and SSL certificate support
- Supports BACnet, Modbus, MQTT, Sox, and TCom protocols
Product Highlights
The FS-20 offers incomparable performance and live programming via EasyIO CPT Tools. It supports the latest IT network and security standards.
Product Information
Standard Information
-
Brand: EASYIO
-
Manufacturer Part Number: EASYIO-FS-20
Technical Specifications
-
RAM: 512MB
-
Flash Memory: 8GB
-
Protocols: BACnet MSTP Client/Server, BACnet IP Client/Server, Modbus TCP and RTU M/S, MQTT, TCOM, SOX
-
Ethernet Port: 1 x 10/100 Ethernet Port
-
Web server: Built-in HTML 5 web server and SSL certificate support
-
RS485: 2 x RS485
-
API: RESTful API and graphics web services
-
Clock: Real Time Clock
-
VPN: Built-in VPN Server and Client
-
Safety Backup: SuperCap Apps Safety Backup
-
Time Protocol: Network Time Protocol (NTP) Client
-
Power: 18VA
-
Email: SMTP protocol (outgoing email) with SSL authentication
-
Upgrades: Remote Flash Upgrades
-
SQL Lite: SQL Lite up to 100,000 records
-
UI: 12x UI
-
DO: 2x DO (with LED indicator)
-
UO: 6x UO
-
Main processor: 1.2 Ghz Quad Core ARM A7 main processor
-
I/O processor: 48 Mhz ARM Cortex-M0 processor for the I/O
-
Power supply: 24V AC +/- 5% or 24V DC +20% / - 15%
-
Power consumption: 750 mA at 24VAC/VDC 500mA at 24VAC/VDC
-
Storage temperature: -20 to 85°C (-4 to 185°F)
-
Operating temperature: 0 to 65°C (32 to 150°F)
-
Operating humidity: 10% to 90% relative humidity
(non-condensing)
-
Material: Plastic in acc. with UL
-
SD card holder: Yes, for data backup
-
Ethernet: 1 x Ethernet Port 10Mb/100Mb; 10Base-T/ 100Base-T
interface, half or full duplex
-
RS 485 interfaces: 2 x RS485 (connection 1 is BACnet,
connection 2 is Modbus)
-
Real-Time Clock (RTC): Real-Time Clock with at least 5 days
of backup using SuperCAP
-
Power failure protection: SuperCap Apps Safety Backup
-
Network security standard: IPv6, IPv4, DHCP Client, SSL, TLS
1.3, 802.1x; VPN Client and Server
-
Database and API: MQTT, SQL database and RESTful API
-
Supported protocols: BACnet MS/TP Client/Server, BACnet IP
Client/Server, Modbus RTU M/S, Modbus, TCP M/S, MQTT, TCOM, SOX
-
E-mail Service: SMTP protocol (outgoing e-mail) with SSL
encryption
-
Time synchronization Network: Time Sync Protocol
-
Modbus Baud Rate: Speed (9.6K, 19.2k, 38.4K, 57.6K), Data
Bits 8, Parity Odd, Even, None
-
BACnet Baud Rate Speed: 9.6K, 19.2k, 38.4K, 76.8K
-
Network Security: Supports Enterprise Network Security 802.1x and TLS 1.3, SSL, IPv6 and DHCP Client
-
On board: 8GB of EMMC for storage and history
